DJI Zenmuse S1

£1,100.00

500 m effective illumination range
LEP laser spotlight technology
Gimbal-synced light control
IP54 weather-rated construction
Narrow, Long Beam & Strobe modes
Compatible with M400, M350 & M300 RTK

Request Demo Bulk Pricing

Questions? Call 01305 303101

🇬🇧 UK Drone Specialists

💬 After Sales Support

🛠️ Approved Service & Repair Centre

🔒 Secure Checkout 🏷️ Price Match

Category: DJI M400

DJI Zenmuse S1 Spotlight — High-Intensity LEP Aerial Illumination

The DJI Zenmuse S1 redefines tactical night operations, introducing a powerful LEP (Laser-Excited Phosphor) searchlight built exclusively for flagship DJI enterprise ecosystems. Engineered to deliver an intensely focused, ultra-long-range optical beam with virtually zero lateral spill, this advanced payload provides real-time illumination tracking that integrates flawlessly alongside primary thermal and visual sensors. Authorized and supported by Drone Sales UK.

Advanced LEP Tech Core
Gimbal Synchronized Tracking
Rapid Disorientation Strobe
IP54 Ruggedized Enclosure
Optimized Low-Draw Power
Target Lock Alignment

Operational Overview & Deployment Scenarios

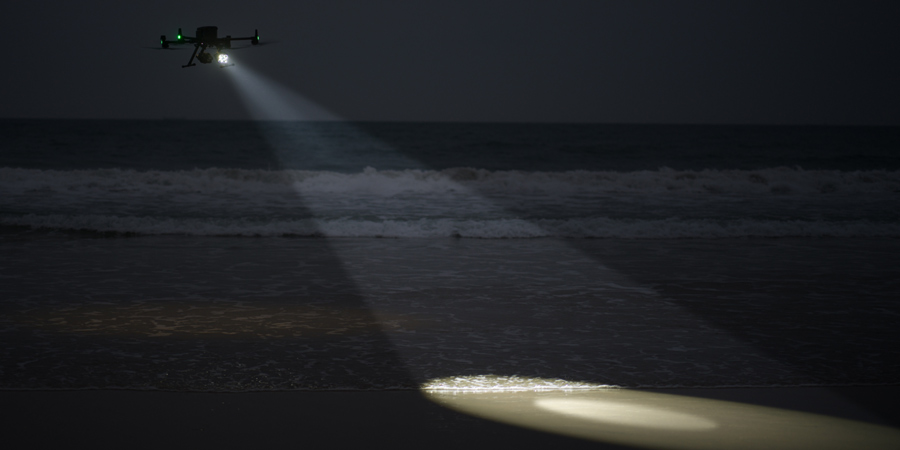

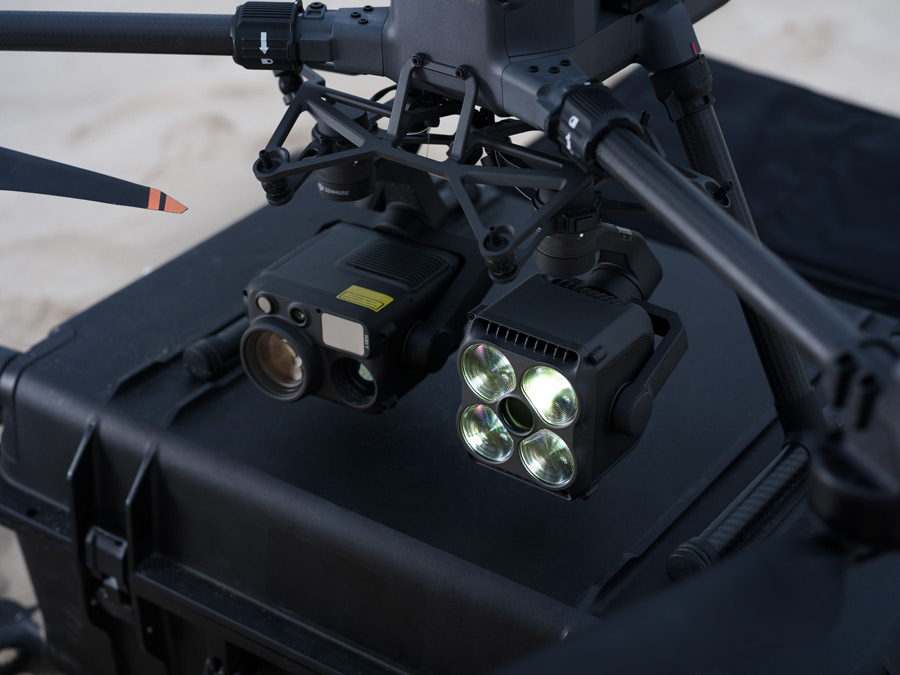

DJI Zenmuse S1 mounted on Matrice platform illuminating a search area at night — Focused LEP beam for long range visibility during search missions.

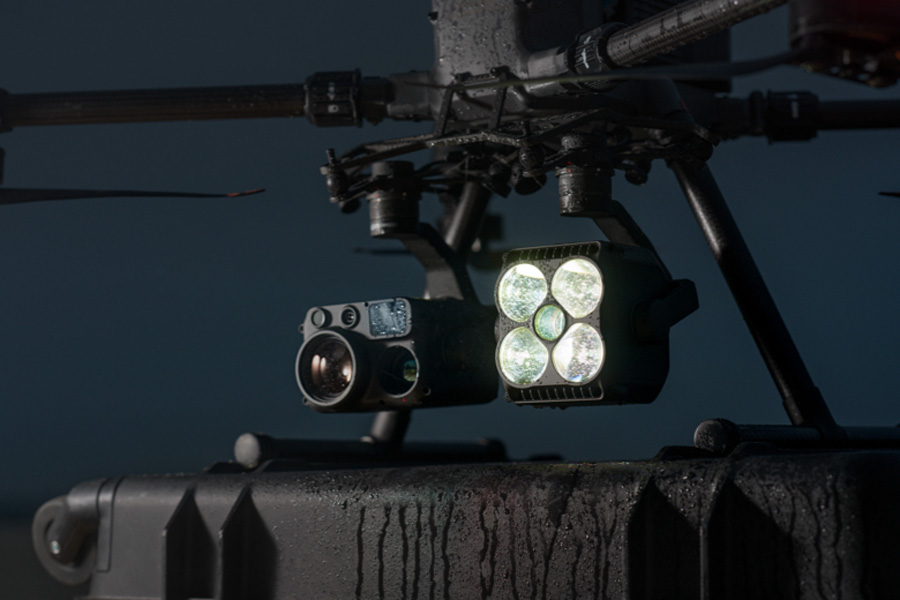

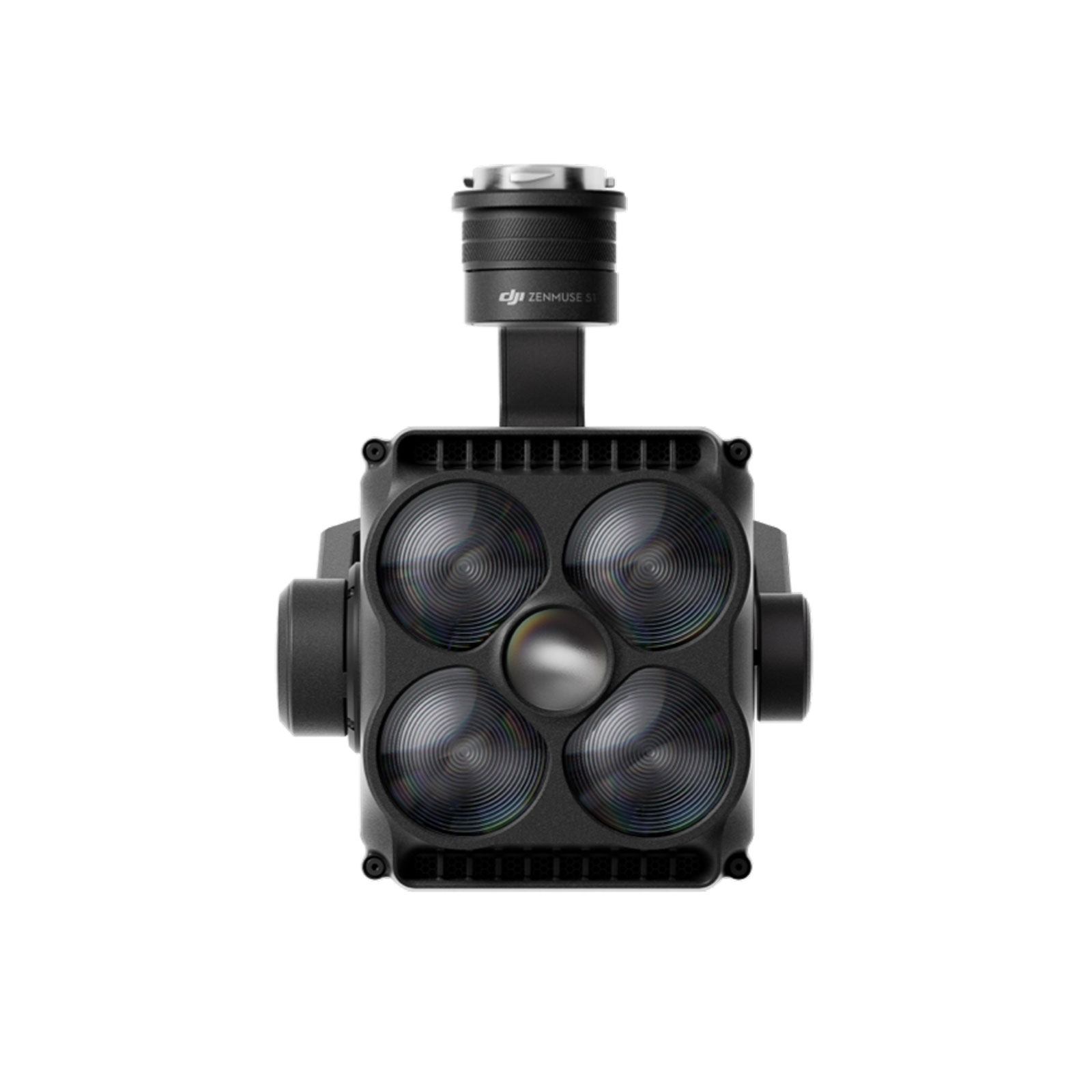

Close-up of Zenmuse S1 spotlight head showing optics and cooling design — Engineered optics deliver a tight hotspot with minimal side spill.

Cutting-Edge LEP Optical Performance

Traditional LED lighting arrays spread illumination across an overly wide arc, causing atmospheric refraction that blinds the drone’s onboard cameras in foggy or hazy conditions. The Zenmuse S1 utilizes advanced Laser-Excited Phosphor technology to form a tightly bound column of light. This incredible intensity cuts directly through ocean mist, coastal fog, and heavy smoke plumes, ensuring ground personnel get crisp situational data exactly where it is needed most.

Concentrates lumens into a razor-sharp beam profile to minimize peripheral light pollution and glare
Provides critical tactical assistance for nighttime missing person searches, cliff rescue coordinates, and traffic incidents
Maintains stable internal thermal balance via a ruggedized active cooling chassis

Zenmuse S1 in use with emergency services over an incident scene — Gimbal synchronised control keeps light locked to your camera aim.

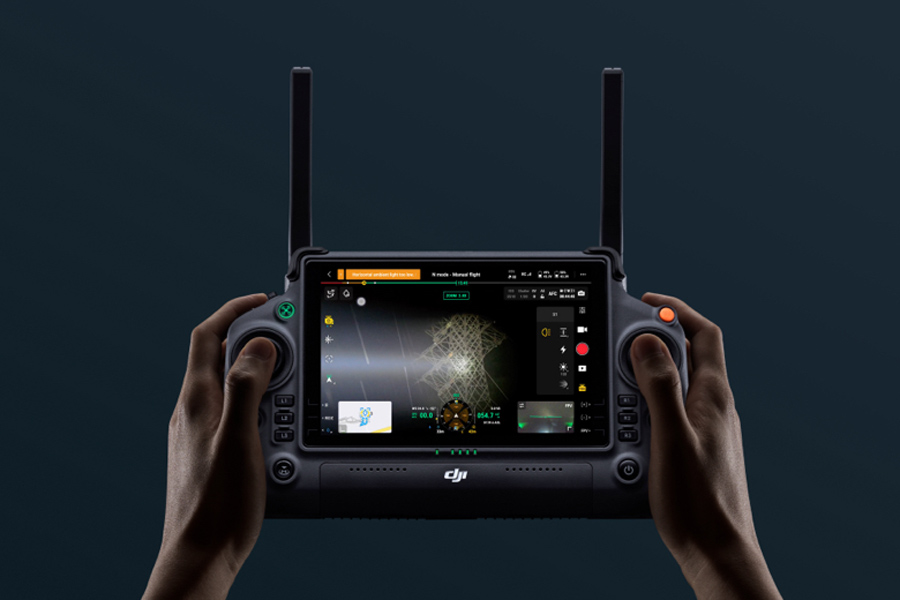

Intelligent Software Integration & Gimbal Sync

The Zenmuse S1 goes beyond standard lighting systems by interacting actively with the DJI Pilot 2 camera software system.

Automated Gimbal Synchronization: Automatically binds its directional axis to primary imaging sensors like the Zenmuse H30 or H30T.
Dynamic Strobe Profile: Features a high-frequency flash system for urgent emergency signaling or scene control.
Live Tracking Controls: Seamlessly locks onto target paths via automated software commands, keeping the environment illuminated while you track.

Precision Nighttime Infrastructure Audits

For utility operators, the combination of a sharp beam profile and a low power draw makes the Zenmuse S1 an invaluable diagnostic support asset.

Structural Integrity CHECKS: Illuminates overhead high-voltage components, pylons, and wind turbine structures without glare.
Long Endurance Missions: Low electrical consumption protects drone flight times during protracted structural audits.
All-Environment Protection: An IP54 weather seal enables operation during heavy rains or freezing temperatures.

DJI Zenmuse S1 on Matrice drone performing night inspection over infrastructure — Reliable night inspections for utilities and infrastructure.

Pro Tip: When coordinating search and rescue flights alongside standard camera systems, map the Zenmuse S1 gimbal linkage to the secondary controller. This enables an observer to actively illuminate separate ground hazards or target fields while the primary pilot maintains safe aircraft path clearance.

Supported Enterprise Airframes

The Zenmuse S1 payload interfaces natively via the standard DJI Skyport connection, delivering full software coordination and camera management with current enterprise drone systems:

Aircraft Platform	Integration Support Type	Quick Link
DJI Matrice M400	Full Native Software Command & O3 Enterprise Video Link	View M400 Range →
DJI Matrice 350 RTK	Full Native Software Command & Dual Gimbal Downward Config	View M350 RTK →
DJI Matrice 300 RTK	Supported with latest DJI Pilot 2 firmware updates	View M300 RTK →

Your Trusted UK Drone Experts Since 2014

At Drone Sales UK, we supply the latest commercial drone hardware, support enterprise operations, and assist organizations of every size with seamless UAV integration. From technical hardware supply and after-sales care to custom consultancy and operational training, our specialist team ensures complete regulatory compliance.

DJI Zenmuse S1 — Frequently Asked Questions

What is the DJI Zenmuse S1?›

The DJI Zenmuse S1 is a high-performance spotlight designed for enterprise drones. Using advanced LEP technology, it delivers powerful, focused illumination for night operations, search and rescue, and inspection work.

Which drones is the S1 compatible with?›

The Zenmuse S1 is compatible with the DJI Matrice 300 RTK, Matrice 350 RTK, and other aircraft that support DJI’s Enterprise gimbal mount, including configurations with dual downward or upward payloads.

How bright is the Zenmuse S1?›

The S1 produces up to around 35 lux at 100 metres in combined mode, capable of lighting areas up to approximately 500 metres away in optimal conditions. It offers multiple beam modes for both wide and narrow illumination.

What beam modes does it support?›

The S1 features four modes: Low Beam for wide coverage, High Beam for long-range focus, Both On for maximum illumination, and a Strobe Mode for signalling and safety applications.

How much power does it use?›

Power consumption varies with mode, averaging around 68 W in full output and under 20 W in single-beam modes, ensuring balanced performance with minimal impact on flight time.

What is the weight and size of the S1?›

The payload weighs approximately 760 grams and measures about 125 × 152 × 171 mm, allowing easy transport and mounting on compatible enterprise drones.

Does the S1 have weather protection?›

Yes. The S1 is rated to IP54 for dust and splash resistance, making it suitable for use in light rain or humid environments when flown according to operational guidelines.

Can it be used safely near people?›

The S1 includes built-in safety features such as automatic dimming when on the ground and surface temperature control to prevent overheating during extended use.

Does the S1 synchronise with cameras or gimbals?›

Yes. The Zenmuse S1 can be linked with compatible camera payloads, such as the Zenmuse H30 or H30T, to align illumination with the camera’s field of view during inspection or night surveillance tasks.

What are the main applications for the Zenmuse S1?›

The S1 is ideal for search and rescue, law enforcement, infrastructure inspection, security patrols, and any operation requiring precision lighting in low-light or nighttime conditions.

How does it affect drone flight performance?›

The lightweight design and efficient power draw minimise impact on flight time. The S1 is engineered to maintain excellent balance and stability when used with dual or single payload setups.

DJI Zenmuse S1 — Aerial Searchlight Payload Specifications

The definitive high-power illumination system engineered for night search and rescue, emergency response, and law enforcement operations. Delivering up to 40 lux of targeted central brightness at a 100-meter range, the Zenmuse S1 integrates dual-beam LED/LEP arrays onto a 3-axis stabilized gimbal, featuring smart beam alignment that synchronizes seamlessly with enterprise camera systems.

500 m Max Illumination Range
40 lux Ultra-Bright Core Output
Intelligent Camera Beam Alignment
Dual Low / High Beam Optic Nodes
5 Hz Disorienting Strobe Mode
IP54 Ingress Weather Shielding

General Architecture & Aircraft Integration

Physical Dimensions & Weight: Ultra-compact tactical lighting chassis measuring 125×152×171 mm. Net hardware weight rests at a lightweight 760 ± 10 grams.
Aircraft Power Allocation: Scalable consumption architecture depending on the host flight frame. Draws a massive 120 W typical power limit when operating on the Matrice 400, and scales to a stable 68 W draw on the Matrice 300 RTK or Matrice 350 RTK.
Environmental Hardening: Achieves a laboratory-verified IP54 ingress protection rating under standard IEC 60529 protocols to survive blowing dust and outdoor rain sweeps.
Supported Aircraft Configurations: Mounts securely via a detachable DJI SKYPORT ring interface to the Matrice 400 and Matrice 350 RTK frames. Natively compatible with the Matrice 300 RTK platform (demands the use of the DJI RC Plus controller setup).
Thermal Operating Limits: Engineered for continuous night missions in ambient temperatures ranging from -20° to 40° C (-4° to 104° F) with offline storage limits spanning -20° to 60° C. Onboard plastic shell elements restrict maximum external touch surfaces to under 50° C.
Optical Biological Safety: Evaluated and certified under international standard IEC 62471 to meet Risk Group 1 guidelines for safe eye exposure tolerances.

Illuminance Metrics, Beam Spans, & Color Profiles

Absolute Range Boundary: Projects a functional, highly effective illumination distance tracking up to 500 meters under Both On operational mode.
Maximum Central Brightness:
- Matrice 400 Platform: Delivers 40 lux at a standard 100 m target range with both beam paths active.
- Matrice 300 / 350 RTK Platforms: Yields 35 lux at a standard 100 m target range under full power constraints.
Low Beam Operational Path: Fires wide area illumination hitting 20 lux at 100 m on the Matrice 400, and 13 lux at 100 m on Matrice 300/350 RTK systems. Spreads across a wide 15° ± 1° effective angle (calibrated at 10% relative illuminance) with a typical crisp 6500K color temperature profile.
High Beam Operational Path: Channels long range spotlight penetration pumping a flat 30 lux at 100 m across all aircraft frames. Restricts the beam pattern to a tight, focused 4° ± 0.5° angle (at 10% relative illuminance) running a highly penetrating 7500K typical color temperature.
Dimming Control Strategy: Employs smooth analog dimming protocols to seamlessly roll light density levels up or down without stepping artifacts.

3-Axis Gimbal Stabilization & Alignment Tracking

Stabilization Framework: Enterprise tier 3-axis mechanical stabilization loop. Restrains light beam vibration deviations to an angular range variance of ±0.01° during stable hover and ±0.02° under high-speed flight maneuvers.
Controllable Tracking Windows: Direct joystick stick commands allow precision beam targeting tilting from -120° to +60° and panning across a wide ±320° sweep window.
Structural Mechanical Boundaries: Total structural frame layout limits hit a mechanical tilt block of -129° to +73°, roll limits of ±55.8°, and a pan endpoint of ±327°.
Intelligent Beam Alignment: When deployed alongside the Zenmuse H30 payload series on the Matrice 400, advanced gimbal synchronization algorithms automatically pivot the searchlight frame to center the hotspot overlay directly within the active camera view frame.
Synchronized Multi-Light Array: Fully supports concurrent dual searchlight mounting patterns on the Matrice 400, allowing a single pilot to direct both Zenmuse S1 beam vectors simultaneously. Supports secondary payload cross-locking features.

Operational Safety & Tactical Lighting Controls

Lighting Mode Options: Instant on-screen toggling maps layouts through independent Low Beam mode, long-range High Beam mode, or max-power Both On mode.
Tactical Strobe Mode: Fires a high-visibility, disorienting 5 Hz strobe flash sequence for crowds, compliance, or emergency signaling.
Controller Mapping: Remote controller custom buttons can be assigned to trigger basic on/off status, fine analog brightness sliders, or cyclical illumination mode sweeps.
Ground Eye Protection: Built-in safety logic automatically senses when the aircraft is grounded, immediately restricting maximum light output to 40% capacity to protect ground crew vision.
Payload Thermal Protection: Multi-tiered hardware guards run active LED/LEP thermal sensors, overcurrent dampening, and voltage power protection loops to prevent component burnout.

* Target light density and maximum projection ranges are evaluated in baseline laboratory conditions at a 25° C temperature threshold. Real-world performance vectors will fluctuate depending on atmospheric moisture levels, localized humidity, smoke density, and coastal fog environments. The IP54 weather seal rating requires regular payload maintenance and will naturally drop over extended lifecycles due to general field wear and tear.
