Zenmuse X7 DJI DL 24mm

£1,299.00

45 MP full-frame sensor
24 mm DL mount lens
Wide-area coverage for faster missions
Survey-grade accuracy with RTK integration
Smart Oblique Capture support

Request Demo Bulk Pricing

Questions? Call 01305 303101

🇬🇧 UK Drone Specialists

💬 After Sales Support

🛠️ Approved Service & Repair Centre

🔒 Secure Checkout 🏷️ Price Match

Category: DJI M400

DJI Zenmuse P1 — 24 mm DL Lens Options

The DJI Zenmuse P1 equipped with the 24 mm DL Lens stands as the industry benchmark for wide area data capture, high speed photogrammetry, and efficient corridor mapping workflows. By blending expansive situational coverage with survey grade accuracy, this premium optical configuration allows enterprise operators to complete large scale geospatial missions with fewer flight lines while preserving rigorous measurement fidelity. Authorized and supported by Drone Sales UK.

Maximum Wide Area Coverage
Optimized Flight Efficiency
High Definition Orthomosaics
Digital Elevation Models (DEMs)
Full RTK Survey Precision
Full Frame 45 MP Clarity

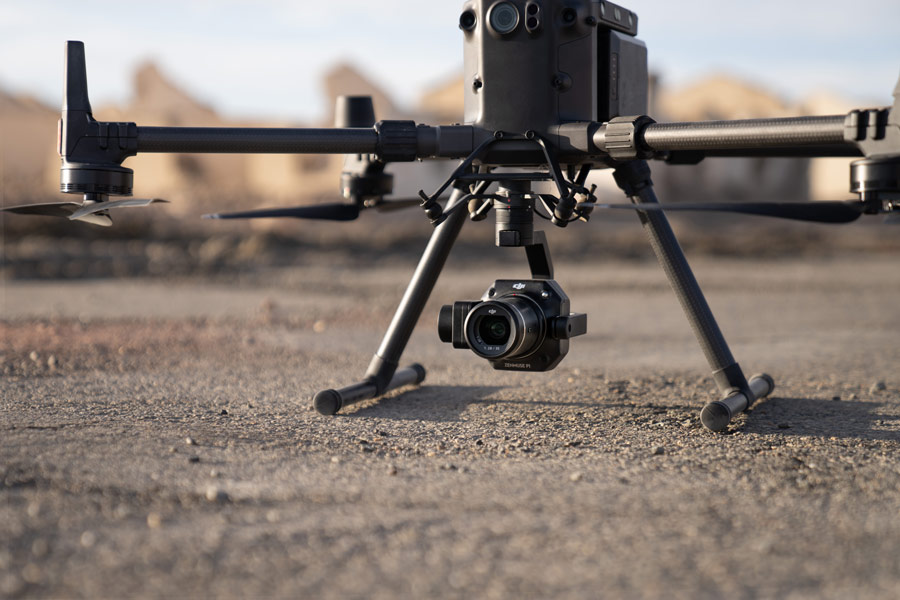

DJI Zenmuse P1 full frame photogrammetry camera featuring a 24 mm DL lens module

Optimized Optical Precision for Mass Data Capture

When mapping vast expanses such as flood plains, heavy industrial layouts, or agricultural zones, reducing time in the air is critical for operational efficiency. The 24 mm focal length provides an expansive field of view that maximizes ground coverage per asset photo. When deployed alongside active RTK networks and structured flight planning, this setup generates ultra crisp baseline imagery perfect for high accuracy topographic rendering.

Accelerates mission turnaround times by significantly reducing the total number of parallel flight paths required
Delivers exceptional geometric fidelity across complex terrains, land developments, and broad coastlines
Provides a flexible baseline for massive orthomosaic generation before dedicating resources to highly detailed infills

Rigorous Flight Engineering and Mission Planning

Extracting the absolute best data quality from the Zenmuse P1 24 mm lens configuration relies on applying precise parameter profiles within your pilot software.

Strategic Altitude Selection: Maintain structured Above Ground Level (AGL) tracking to ensure your target Ground Sample Distance (GSD) meets specifications.
Optimized Overlap Matrix: Leverage a baseline of 70% to 80% frontlap paired with 60% to 70% sidelap configurations.
Vegetation Profiles: Easily scale overlay metrics upward when mapping environments with heavy forest canopies or dense urban clusters.

Advanced Smart Oblique Capture Workflows

For challenging structural projects, the P1 payload manipulates its integrated gimbal layout to gather critical multi angle perspectives seamlessly.

Smart Oblique Architecture: Automatically rotates the gimbal during the flight pattern to isolate vertical surfaces.
True 3D Reconstruction: Collects clean vertical facet details on buildings, facades, and utility corridors without noise.
Corridor Efficiency: Maps linear infrastructure routes like roadways and pipeline paths cleanly at moderate detail.

Pro Tip: The 24 mm DL lens module naturally favors higher operating altitudes to unlock its full potential for massive area coverage. For structural modeling projects requiring ultra deep architectural depth, remember to engage Smart Oblique mode in DJI Pilot 2 to cleanly map side elevations without adding manual flight lines.

Supported Enterprise Airframes

The Zenmuse P1 payload interfaces natively via the standard DJI Skyport connection, delivering full software coordination and camera management with current enterprise drone systems:

Aircraft Platform	Integration Support Type	Quick Link
DJI Matrice M400	Full Native Software Command & O3 Enterprise Video Link	View M400 Range →
DJI Matrice 350 RTK	Full Native Software Command & Dual Gimbal Downward Config	View M350 RTK →
DJI Matrice 300 RTK	Supported with latest DJI Pilot 2 firmware updates	View M300 RTK →

DJI DL 24 mm F2.8 Lens — Frequently Asked Questions

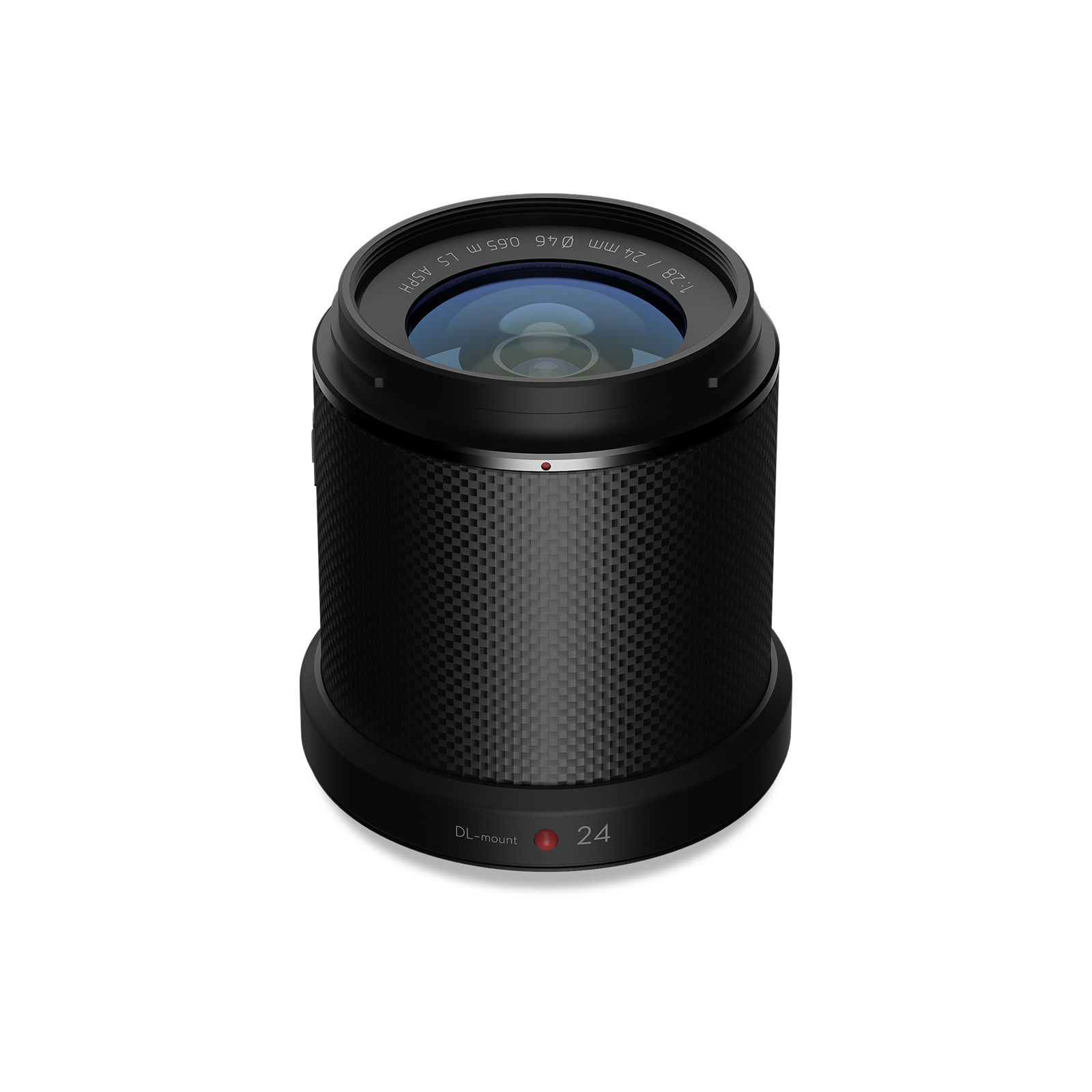

What is the DJI DL 24 mm F2.8 LS ASPH Lens?›

The DL 24 mm F2.8 LS ASPH is a fixed‑focus prime lens designed for the DJI DL‑Mount system, compatible with the Zenmuse X7 camera. It features a carbon‑fibre housing and is optimised for aerial cinematography and high‑end imaging workflows.

What are the key specifications of the 24 mm lens (aperture, weight, size)?›

The lens has a maximum aperture of F2.8. Its filter attachment diameter is 46 mm. While exact weight and dimensions vary slightly, comparable lens listings show ~180 g weight for the DL 24 mm variant and compact dimensions suited for aerial use.

Which cameras and mounts is this lens compatible with?›

This lens is natively compatible with the DJI DL‑Mount system and is listed as compatible with the Zenmuse X7 camera (and other DJI DL‑Mount systems) for high‑resolution aerial and cinematography work.

What image formats and workflows is it suitable for?›

The lens supports high‑end imaging workflows including RAW capture, stills and cinema footage when mounted on the Zenmuse X7. For example, the X7 supports 6K/30 fps CinemaDNG, 5.2K Apple ProRes and other professional formats when paired with suitable media.

What optical quality or design highlights does the lens offer?›

The DL lens lineup, including the 24 mm, uses a carbon‑fibre monocoque housing for lightweight and stability in aerial platforms. It features advanced optics designed for high resolution, minimal distortion and compatibility with Super 35/APS‑C sensor formats used in the Zenmuse X7.

Is the lens suitable for aerial mapping, inspection or survey work?›

Yes. When used with a compatible aerial camera like the Zenmuse X7, the 24 mm lens delivers wide‑field coverage with high detail—making it suitable for inspection, surveying, cinematography and advanced aerial imaging tasks. The fixed focal length and high image quality support professional workflows.

How do I care for and maintain the lens when used on a drone platform?›

After each flight, gently clean the front lens element with a soft microfiber cloth, check for mounts/looseness, store in a dry cool case, avoid direct exposure to salt/abrasive spray, and ensure the lens is balanced on the gimbal before mounting to the aircraft. Firmware and calibration (if needed) should be checked regularly.

What support and purchase options are available through Drone Sales UK?›

As a UK reseller, we offer the DL 24 mm lens bundled with the Zenmuse X7, accessories, calibration support and UK‑ready advice. Contact us for stock, bundle pricing and demo options.

What is the cost in the UK and how do I order?›

Pricing depends on configuration, bundle, and regional stock. Please visit our product page or contact us to get current UK pricing, availability and lead time.

Zenmuse P1 24 mm Lens — Wide‑Area Mapping Efficiency

High‑performance survey mapping solution: full‑frame 45 MP sensor, DL‑mount 24 mm lens, large‑coverage mapping and survey‑grade accuracy for professional aerial photogrammetry missions.

45 MP full‑frame sensor
24 mm DL‑mount lens
Wide‑area coverage (~3 km²/flight)
Smart Oblique Capture Mode
Survey‑grade accuracy: 3 cm H / 5 cm V
GSD ~2.7 cm @100 m

Lens & Sensor Specifications

Focal Length: 24 mm (DL mount)
Sensor Resolution: 45 MP (8192 × 5460 pixels)
Equivalent Format: Full‑Frame (35 mm format)
Shutter Type: Global Mechanical Shutter (max 1/2000 s)
Field of View (FOV): Approx. 84° horizontal
Ground Sampling Distance (GSD): ~2.7 cm @ 100 m altitude (24 mm lens)
Recommended Flight Altitude: 100 – 150 m AGL (typical survey missions)
Weight (lens only): Approx. 178 g
Image Format: JPEG / RAW (DNG)
Survey Coverage (approx.): Up to ~3 km² per flight @150 m AGL

Accuracy & Compatible Platforms

Survey‑Grade Accuracy (absolute): Horizontal ~3 cm, Vertical ~5 cm *
Compatible Aircraft: Matrice 400/350 RTK, Matrice 300 RTK
Notes: Accuracy figure assumes mapping mission with GSD ~3 cm, typical speed and overlap.

* Actual accuracy depends on flight altitude, overlap, RTK/PPK performance, environmental conditions, and calibration.
