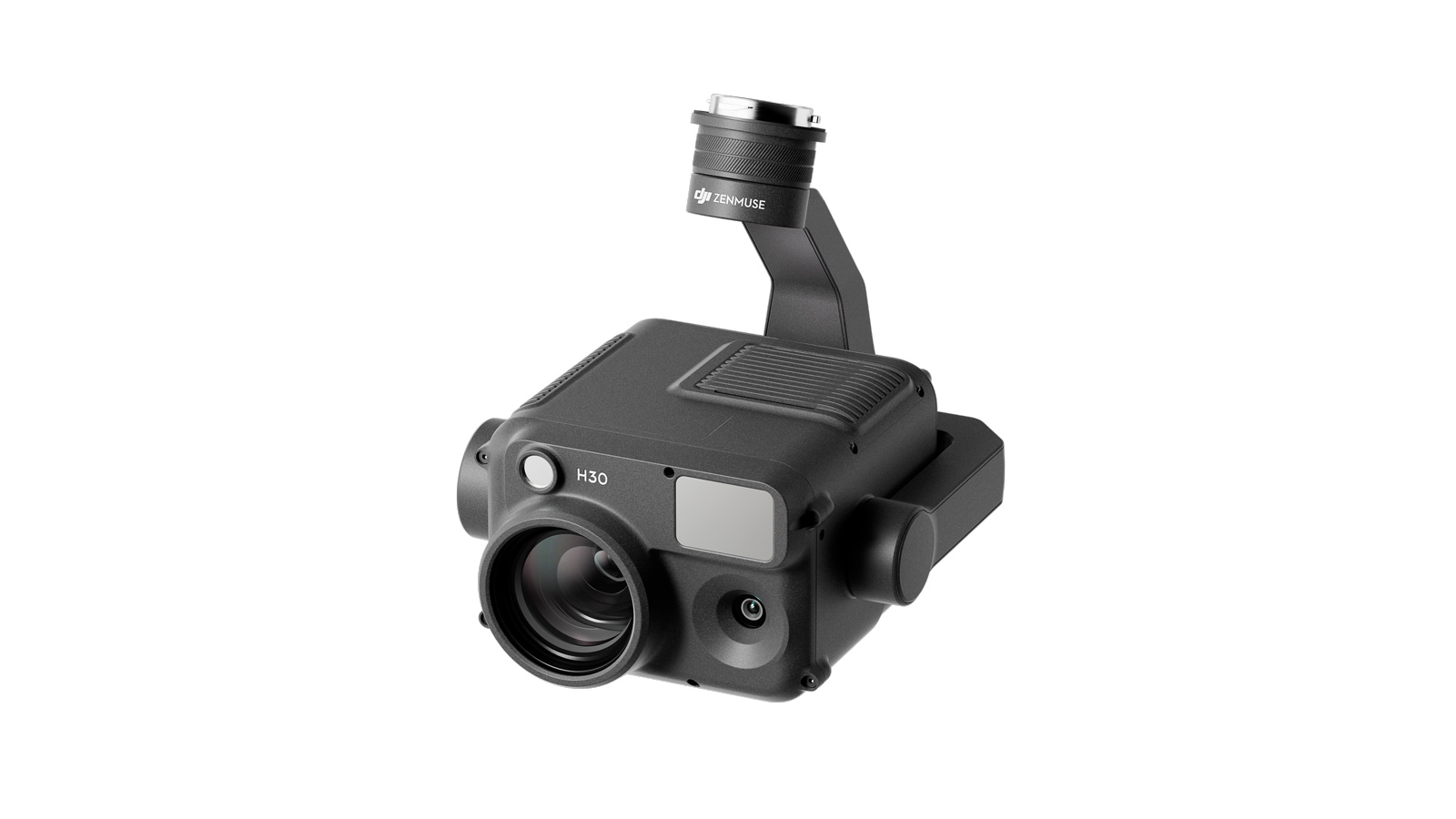

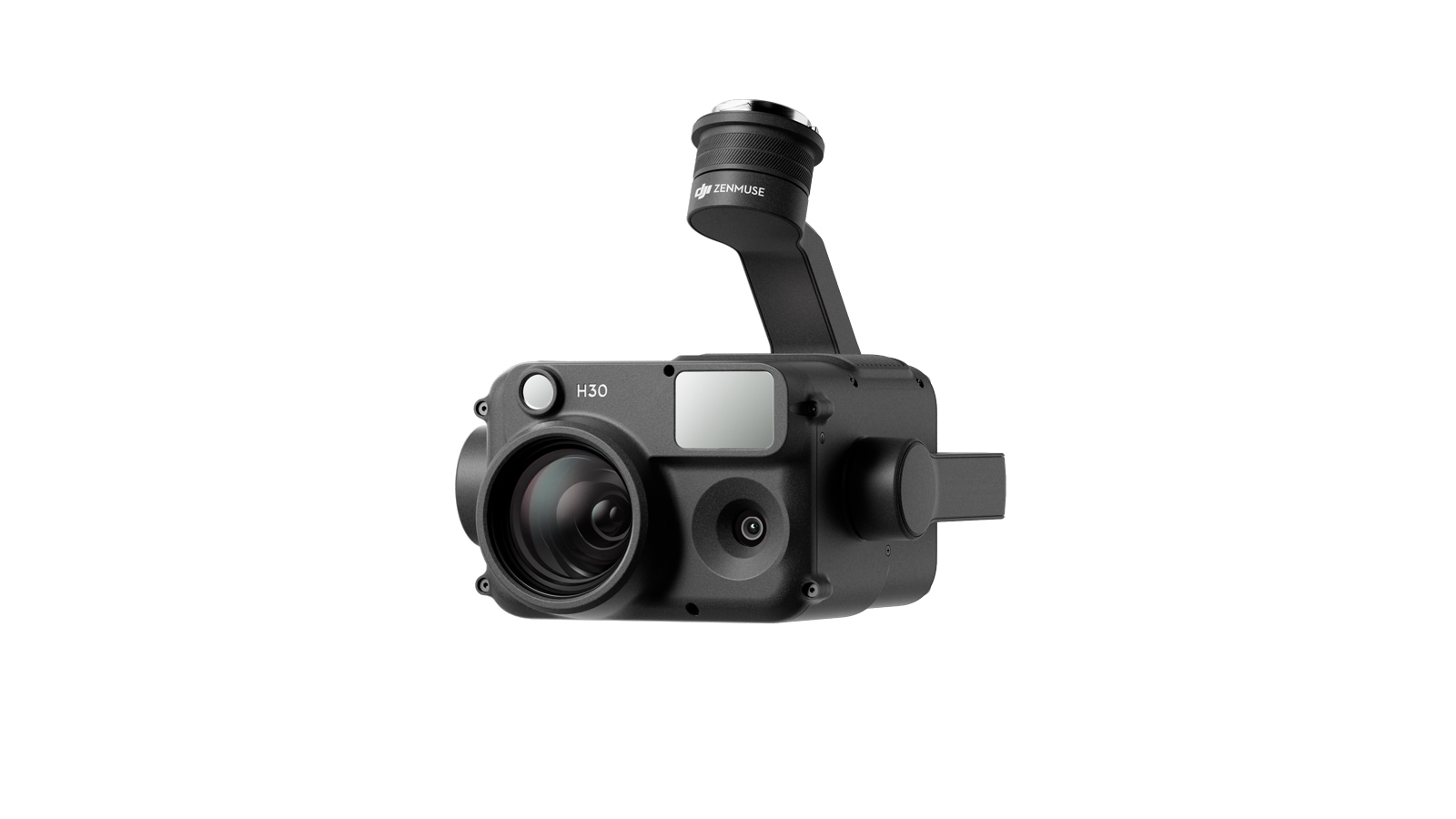

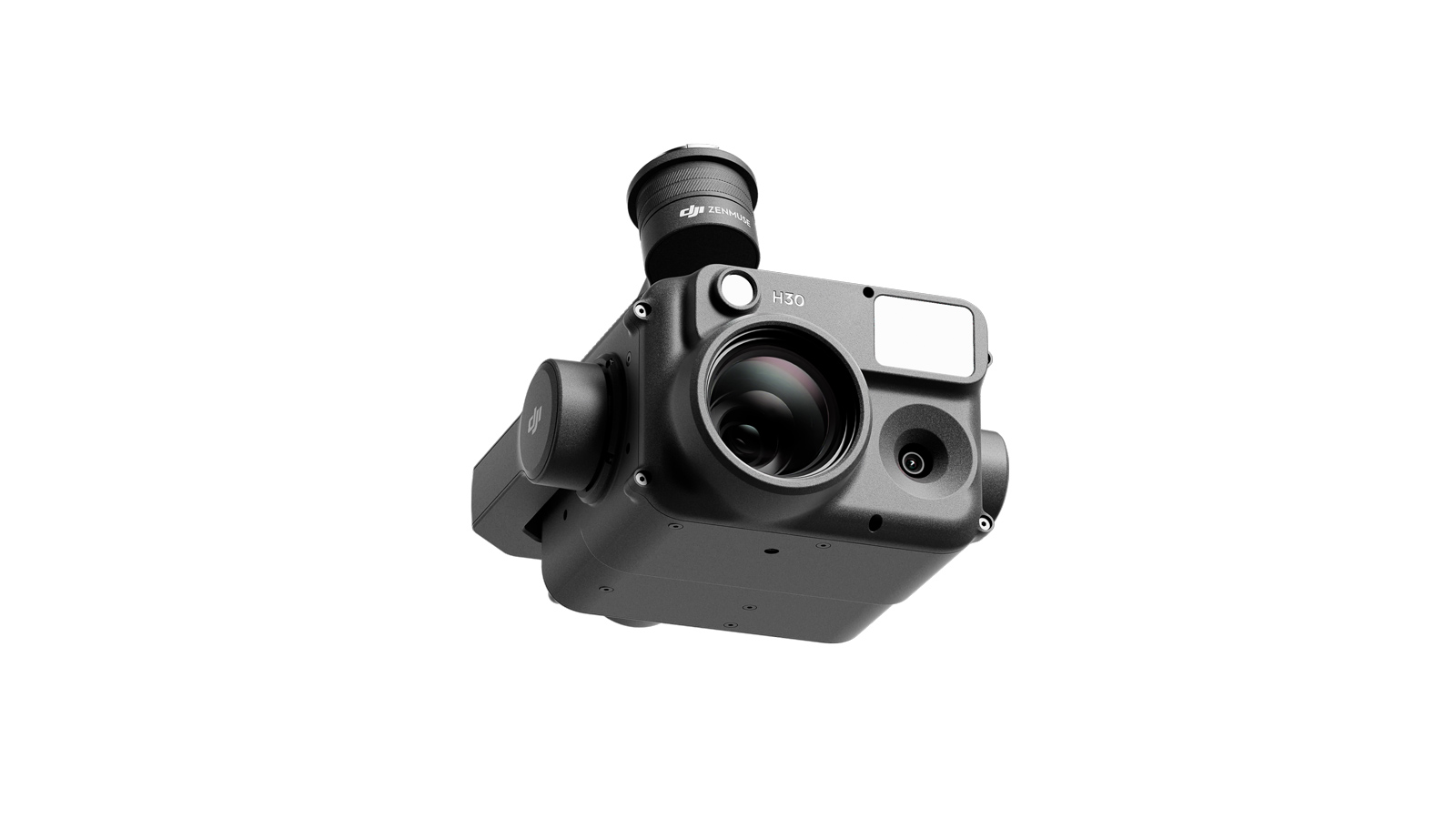

DJI Zenmuse H30
£3,880.00
- 1280×1024 thermal resolution
- ≤50 mK thermal sensitivity
- 3 km laser range finder
- IP54 weather-rated build
- Wide, zoom, thermal, LRF & NIR sensors
DJI Zenmuse H30 Series — Advanced Multi-Sensor Imaging
The DJI Zenmuse H30 Series redefines the benchmark for multi-sensor commercial payloads, integrating five distinct core modules into a single, weather-sealed system: a high-resolution wide camera, a powerful zoom camera, a high-performance infrared thermal sensor (exclusive to the H30T), a high-precision laser range finder, and an integrated near-infrared (NIR) auxiliary light. Unified by advanced software intelligence, this payload operates flawlessly around the clock. Authorized and supported by Drone Sales UK.
1280 × 1024 Thermal (H30T)
3000 m Laser Range Finder
NIR Illumination Assist
IP54 Weather Protection
Smart Night Scene Mode
Uncompromised All-Weather Mission Readiness
Critical field operations can’t wait for ideal weather conditions or sunrise. The Zenmuse H30 Series combines raw hardware power with DJI’s next-generation imaging algorithms to cut through rain, fog, and absolute darkness. Featuring an IP54 ruggedized housing, it maintains mechanical stability and precision tracking across a vast temperature range, making it the definitive tool for search and rescue, structural inspections, power grid protection, and surveillance workflows.
- Delivers exceptional visual details from long distances with a 34× hybrid optical zoom and a staggering 400× maximum digital limit
- Features an ultra-sensitive night scene profile that actively pairs with the NIR auxiliary beam to illuminate pitch-black environments
- Pinpoints target coordinates up to 3,000 meters away with precise laser distance analysis
Rock-Steady Long-Range Target Tracking
High-magnification payloads are highly vulnerable to micro-vibrations, but the H30 utilizes a highly advanced stabilization array to keep details crisp.
- Electronic De-Haze: Intelligently clears atmospheric distortion, fog, and smog during distant daytime checks.
- Pinpoint LRF Target Locking: Locks onto moving assets or structural details and continuously updates GPS coordinates.
- Enhanced Structural Inspection: Isolates individual bolts, insulators, and components safely outside high-voltage arcs.
High-Definition Radiometric Thermal Diagnostics
The Zenmuse H30T model integrates a high-resolution 1280 × 1024 thermal core, delivering a 4× increase in pixel density over previous enterprise generations.
- High-Resolution Radiometrics: Tracks distinct heat profiles down to ≤ 50 mK for quick hot-spot identification.
- Link-Zoom Capabilities: Syncs visual and infrared lenses together, enabling side-by-side split screen comparisons.
- Critical Search & Rescue: Identifies faint human heat signatures through smoke, dense foliage, and night cover.
Pro Tip: When operating the H30T during search and rescue missions at night, switch to “Smart Night Mode.” This configuration optimizes the low-light RGB processing algorithms while running the thermal camera in a split-screen layout, ensuring you don’t miss vital visual color details or thermal heat signatures.
Supported Enterprise Airframes
The Zenmuse H30 Series connects natively via the standard DJI Skyport ecosystem, offering plug-and-play integration with current and legacy flagship DJI Matrice platforms:
| Aircraft Platform | Integration Support Type | Quick Link |
|---|---|---|
| DJI Matrice M400 | Full Native Software Command & O3 Enterprise Video Link | View M400 Range → |
| DJI Matrice 350 RTK | Full Native Software Command & Dual-Gimbal Downward Config | View M350 RTK → |
| DJI Matrice 300 RTK | Supported with latest DJI Pilot 2 firmware updates | View M300 RTK → |
DJI Zenmuse H30 — Frequently Asked Questions
What modules and sensors are included in the H30?›
The H30 includes four integrated modules: a wide‑angle camera, a zoom camera, a laser rangefinder, and an NIR (near‑infrared) auxiliary light.
What are the key specs of the zoom camera?›
The zoom camera has a 1/1.8‑inch CMOS sensor with 40 MP effective pixels, supporting up to 34× optical zoom and up to 400× digital/hybrid zoom.
What about the wide‑angle camera specs?›
The wide‑angle camera features a 48 MP 1/1.3‑inch CMOS sensor, equivalent focal length ~24 mm and a DFOV of ~82.1°.
What is the laser range‑finder’s range and accuracy?›
The laser range‑finder measures from approximately 3 m to 3000 m. For distances ≤ 500 m its accuracy is ±(0.2 m + distance × 0.15 %), beyond 500 m about ±1.0 m.
What is the weight, size and power consumption?›
The payload weighs ~920 ± 5 g with dimensions ~170 × 145 × 165 mm. Power consumption is about ~26 W.
What ingress protection and operating environment does it support?›
Under controlled conditions it attains an IP54 rating. Operating temperatures range from –20 °C to +50 °C, with storage up to +60 °C.
What gimbal stabilisation and motion ranges does it offer?›
The H30 has a 3‑axis gimbal (tilt, roll, pan). Angular vibration stability is around ±0.002° in hover and ±0.004° in flight. Controllable tilt range is –120° to +60°, pan ±320°.
Which aircraft and remote controllers are compatible?›
The H30 is compatible with DJI Matrice 300 RTK (requires DJI RC Plus) and Matrice 350 RTK platforms.
Does the H30 support night operations or low‑light modes?›
Yes. It supports Night Scene mode for both the zoom and wide‑angle cameras and uses the NIR auxiliary light to assist in darkness.
Is mapping or photogrammetry possible with the H30?›
The H30 is primarily engineered for inspection, surveillance and observation rather than high‑precision mapping—although some lower‑accuracy mapping might be feasible.
What smart or software features are built in?›
Features include Smart Capture, electronic dehazing, pre‑record, foreground stabilisation, AI spot check and full integration into DJI’s enterprise ecosystem.
What activation, care and usage considerations apply?›
You must activate the H30 via DJI Pilot 2 before first use. Store in low humidity (< 40 %), avoid direct sun/over‑heating, and wait at least 30 s between power‑on cycles to protect the unit.
DJI Zenmuse H30 Series — Multi-Sensor Payload Specifications
The ultimate flagship aerial intelligence system built for commercial enterprise missions. Designed for extreme night operations, public safety, and detailed inspections, the Zenmuse H30 integration merges massive 400x digital zoom, a high-resolution wide-angle camera, precision laser rangefinding, and advanced uncooled thermal imaging into a single IP54-protected, 3-axis stabilized gimbal.
48 MP Wide-Angle 1/1.3″ CMOS
1280×1024 High-Res Thermal (H30T)
3000 m Class 1 Laser Rangefinder
819,200 Max Night Scene ISO
IP54 Ingress Weather Shielding
General Design, Gimbal, & Aircraft Compatibility
- Form Factor & Weight: Sleek structural footprint measuring 170×145×165 mm. Net physical weight locks in at 920 ± 5 grams.
- Power Requirements: Highly optimized operational draw limiting consumption to 26 W (Standard H30) or 28 W (Thermal H30T).
- Weatherproof Resilience: Certified with an IP54 protection rating under controlled laboratory conditions to survive airborne dust and light moisture sweeps.
- Supported Flight Ecosystems: Mounts natively to the Matrice 350 RTK and Matrice 400 platforms. Backward compatible with the Matrice 300 RTK (specifically requires the use of the DJI RC Plus controller). Installs instantly via a detachable DJI SKYPORT adapter.
- Stabilization Integrity: Ultra-precise 3-axis (tilt, roll, pan) gimbal platform. Restrains angular vibration ranges to a near-flawless ±0.002° in stable hover and ±0.004° during active high-speed transit.
- Controllable Range Limits: Tilts from -120° to +60° and spans a wide pan adjustment window of ±320° (Structural mechanical endpoints match a tilt of -132.5° to +73°, roll of ±60°, and pan limit of ±328°).
Dual Visual Imagery Architecture (Zoom & Wide)
- 40 MP Zoom Camera: Driven by a 1/1.8-inch CMOS sensor. Packs an actual focal length of 7.1-172 mm, achieving a phenomenal 33.4-809.3 mm 35mm equivalent field of view.
- Breathtaking Zoom Capabilities: Delivers a crisp 34x hybrid optical zoom alongside an astonishing 400x absolute maximum magnification threshold.
- Zoom Lens Mechanics: Features a dynamically tracking variable aperture of f/1.6 to f/5.2 with a diagonal field of view (DFOV) tightening from 66.7° down to an ultra-precise 2.9°.
- 48 MP Wide-Angle Camera: Outfitted with a premium 1/1.3-inch CMOS image sensor. Utilizes a rapid f/1.7 fixed aperture, a 6.72 mm actual focal length (24 mm equivalent), and an expansive 82.1° DFOV profile.
- Revolutionary Starlight Night Core: Delivers stunning low-light imagery via specialized electronic shutter speeds (1/8000s down to 2s). Single-shot ISO spans 100-25,600, while enabling a blistering 100-819,200 ceiling in dedicated Zoom Night Scene mode (Wide Night Scene caps at 409,600 ISO).
- Video Recording Streams: Capture smooth, data-rich MP4 profiles using modern H.264/H.265 compression strategies with selectable CBR or VBR bit rates.
- Standard Day Shooting: Ultra-HD 3840×2160 at 30fps or full 1920×1080 at 30fps.
- Specialized Night Scene: Fluid 1920×1080 capture adjustable across 25fps, 15fps, or a highly hyper-sensitive 5fps setting.
Uncooled VOx Infrared Thermal Matrix (H30T Exclusives)
- Infrared Core Engine: Implements a highly advanced uncooled VOx Microbolometer core boasting a native high-definition infrared photo and video resolution of 1280×1024 at 30fps.
- Thermal Optics: Configured with a 24 mm focal length (52 mm equivalent), an ultra-wide f/0.95 aperture threshold, a 45.2° DFOV, a tight 12 μm pixel pitch, and a dedicated 32x equivalent digital zoom multiplier.
- Thermal Sensitivity & Band: Operates over an 8-14 μm spectral band. Restrains thermal noise sensitivity to a tiny, accurate NETD metric of ≤ 50 mk at an f/1.0 calibration.
- Analytical Targeting Modes: Supports real-time Spot Measurement, Area Measurement, Center Point tracking, custom temperature alerts, and automated internal Flat Field Calibration (FFC).
- Immersive Dual-Gain Thermal Range:
- High Gain Layer: Detects targets from -20° to 150° C (-4° to 302° F); scales aggressively from -20° to 450° C (-4° to 842° F) when deploying an optional Infrared Density Filter.
- Low Gain Layer: Maps targets from 0° to 600° C (32° to 1112° F); scales out to a massive 0° to 1600° C (32° to 2912° F) with the addition of the physical Infrared Density Filter accessory.
- Sun Burn Protection Architecture: Intelligent hardware safe-guards automatically activate to insulate the internal thermal array elements from lens-warping sun exposure damage.
- Dynamic Imaging Palettes: Quickly cycles across 10 functional color layouts: White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, and Hot Iron. Outputs radio-metric R-JPEG file structures.
Laser Rangefinder & Illumination Tools
- Laser Rangefinding Engine: Fires a safe 905 nm wavelength pulse to calculate exact geo-coordinates over a wide operational measurement span of 3 to 3000 meters.
- Common Object Targeting Limits: Accurately isolates grasslands up to 2000 m out, woodlands up to 1900 m, and hard road surfaces up to 1700 m.
- Measurement Accuracy Threshold:
- Ranges Under 500 m: Extremely precise ±(0.2 m + current target distance × 0.15%).
- Ranges Over 500 m: Dependable flat accuracy profile of ±1.0 meter.
- Laser Spot Dimensions: Projects an initial footprint of approx. 50×450 mm at 100 meters, expanding cleanly out to approx. 450×4500 mm when ranging targets at 1000 meters.
- Safety Regulatory Standard: Certified as a Class 1 laser asset. Governs accessible emission limits (AEL) to 260 nJ with an 18 mm reference aperture and handles up to 52 W of peak laser pulse emission power within a 5-nanosecond window.
- NIR Auxiliary Illuminator: Integrates an 850 nm near-infrared auxiliary light tool casting a tight 4.6° ± 0.6° round beam. Projects a crisp 8-meter diameter illumination circle at 100 meters to aid low-light operations. Rated as Class 1 safety tier.
Software, Memory Data Security, & Specialized Features
- Specialized Automation Capabilities: Native software layers fully support Link Zoom, Click to Aim, High-Res Grid Photography, Smart Capture profiles, Video Pre-Recording buffers, and automated Ultra-High Resolution (UHR) Infrared sharpening algorithms.
- Memory Requirements: Demands high-speed exFAT formatted microSD storage media rated at U3, Class 10, or V30 speeds minimum. Natively verified with Lexar 1066x and Kingston CANVAS GO! Plus cards up to 512GB capacities.
- Ironclad Hardware Encryption: Employs a robust built-in Security Code asset configuration tucked inside the Data and Privacy menu of the DJI Pilot 2 application. Setting this code actively encrypts files across the installed microSD memory layout. Decryption and retrieval can be safely completed on Windows computers using the official standalone DJI Decrypt Tool.
- Post-Processing Support: Merges data streams into DJI Terra or DJI FlightHub 2 software for accurate industrial mapping, while utilizing DJI Thermal Analysis Tool 3 to generate deep post-flight R-JPEG reports.
* Atmospheric weather parameters such as dense fog, rainstorms, and thick smoke plumes will naturally disperse laser pulse energy and contract target distance capacities. Environmental thermal limits remain fixed between -20° and 50° C. The laboratory-verified IP54 weather seal rating is subject to degradation over extended deployment lifecycles due to normal mechanical wear, tear, and field storage flexing.
