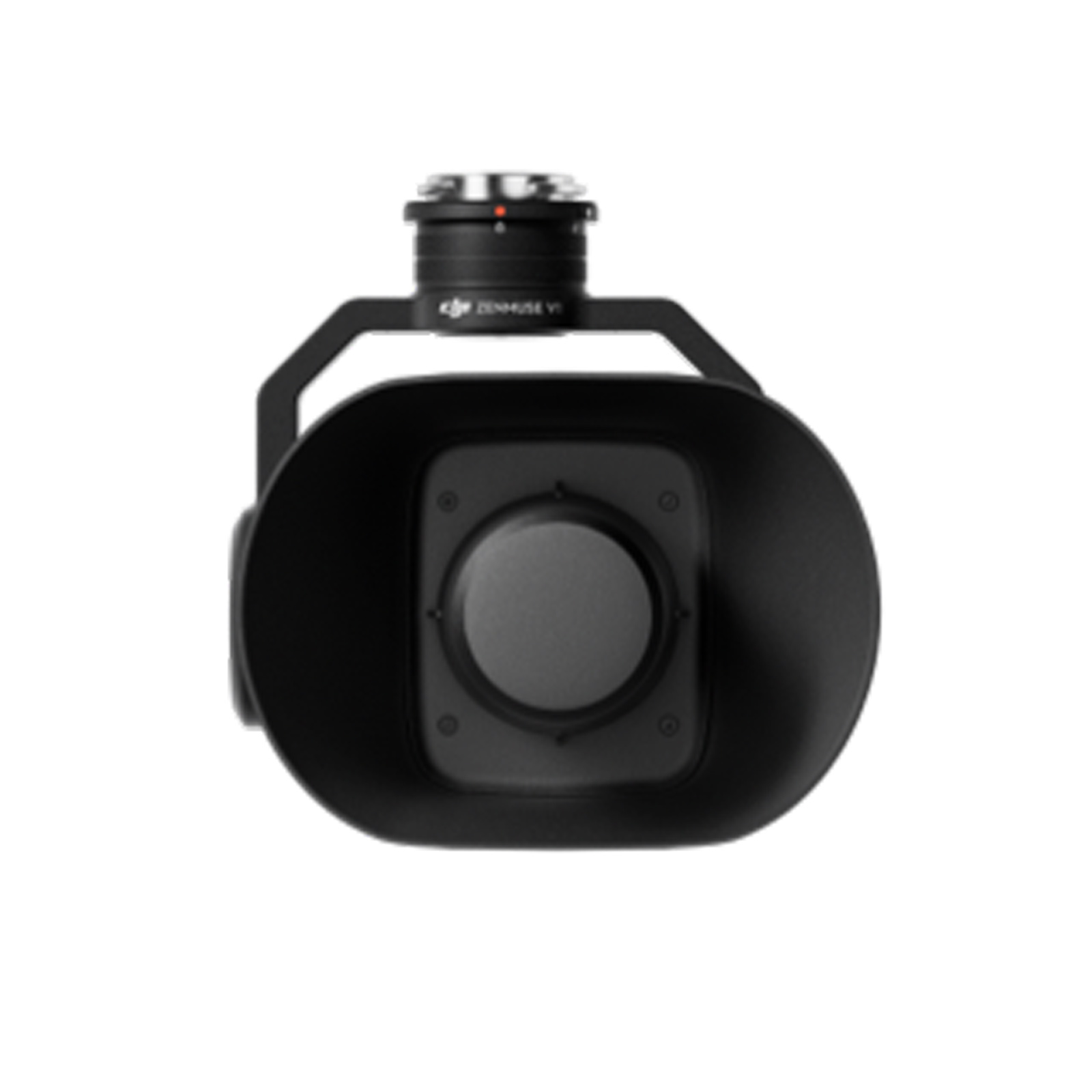

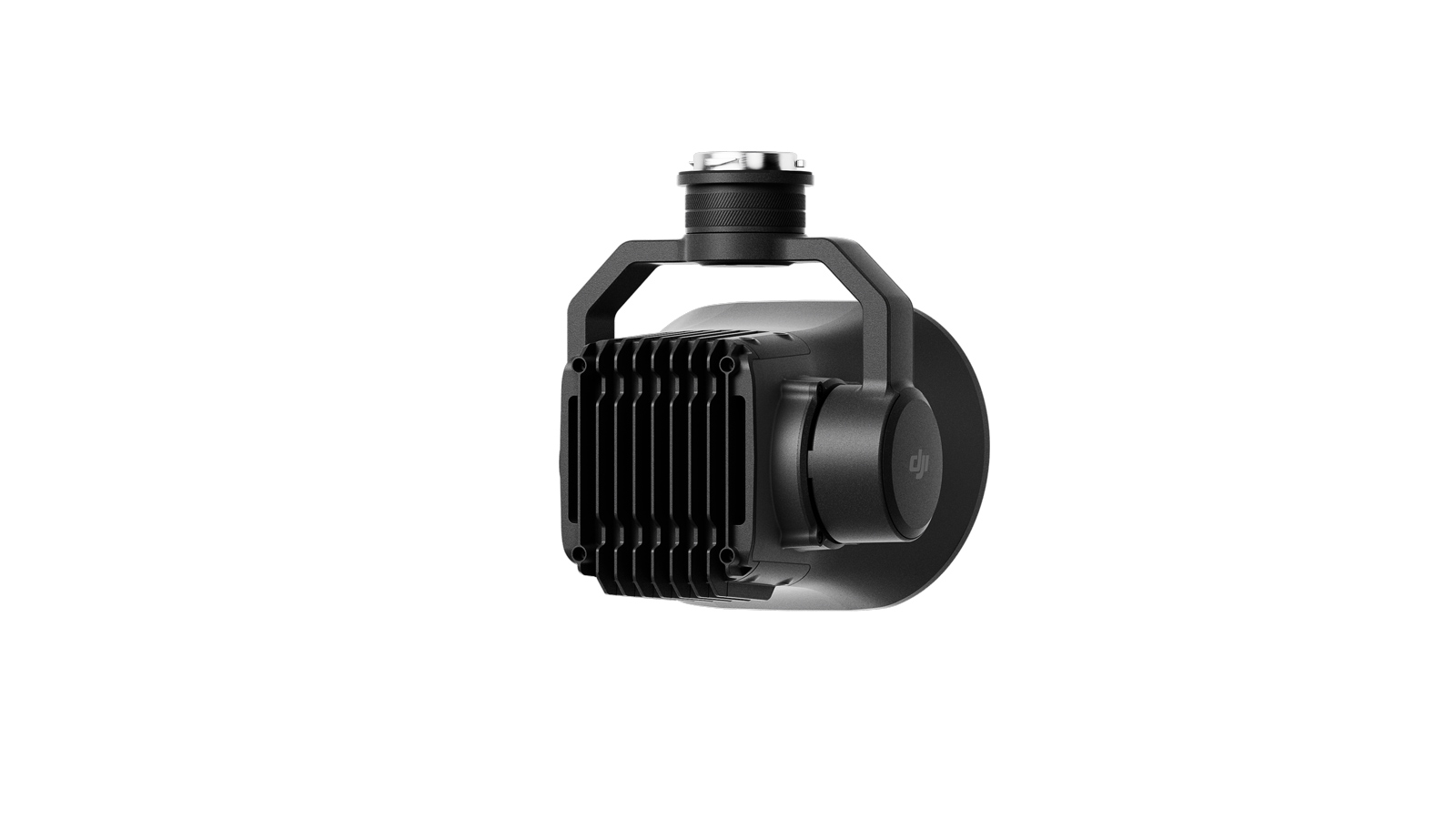

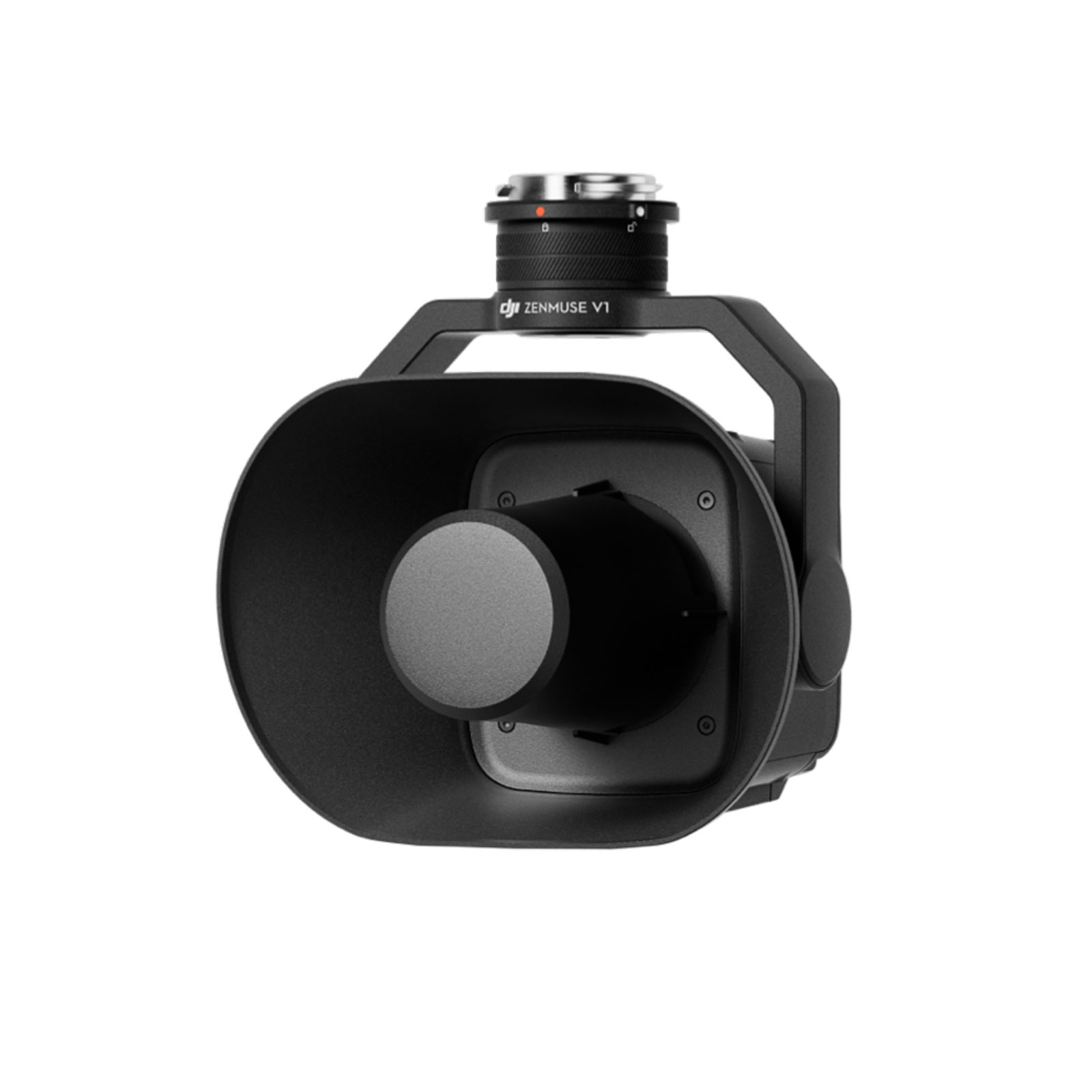

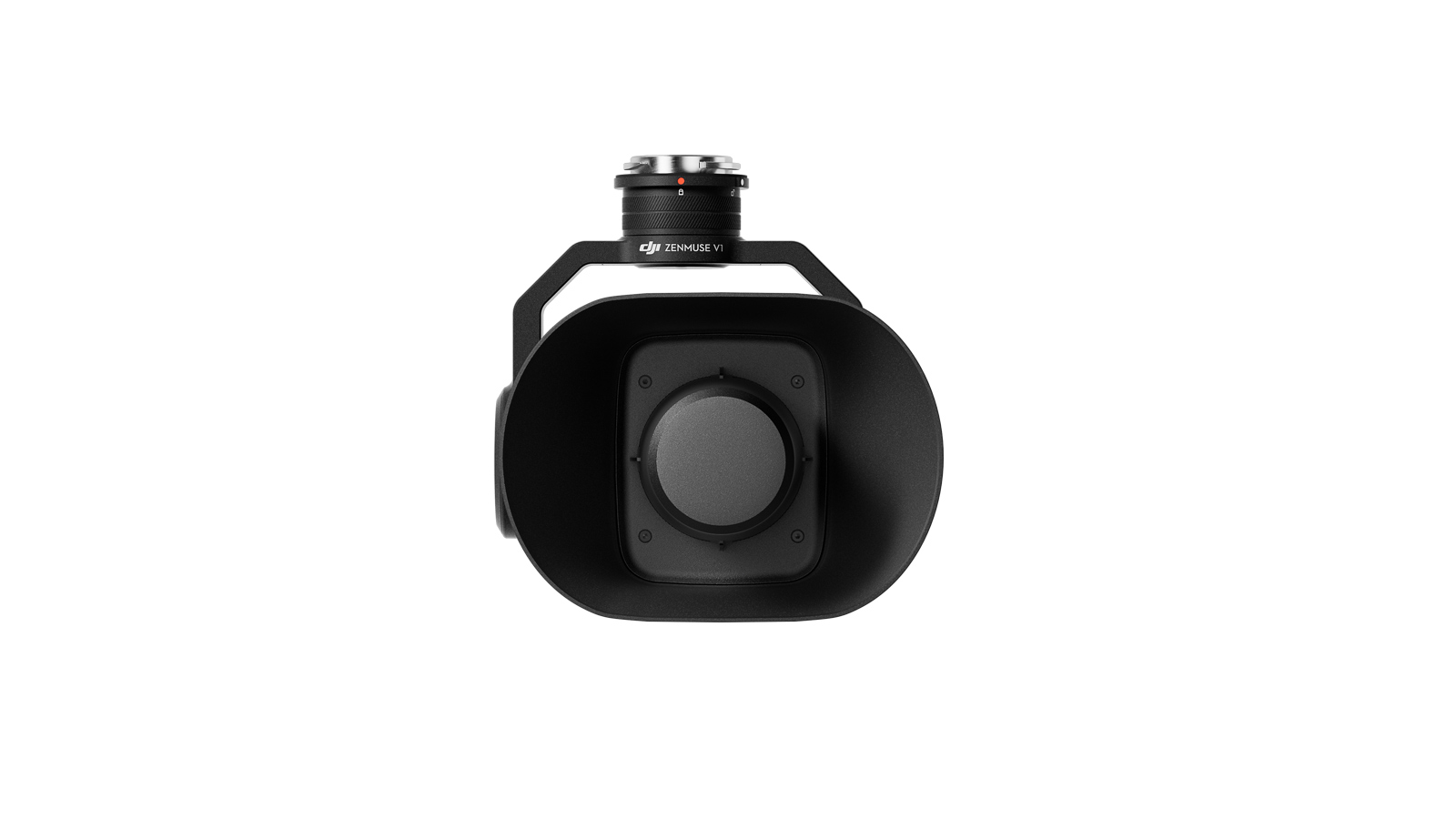

DJI Zenmuse V1

The Zenmuse V1 is DJI’s first purpose‑built loudspeaker payload for multi‑payload drones, enabling aerial communication via live voice, text‑to‑speech, or audio file playback — ideal for public safety, emergency response, crowd control and more.

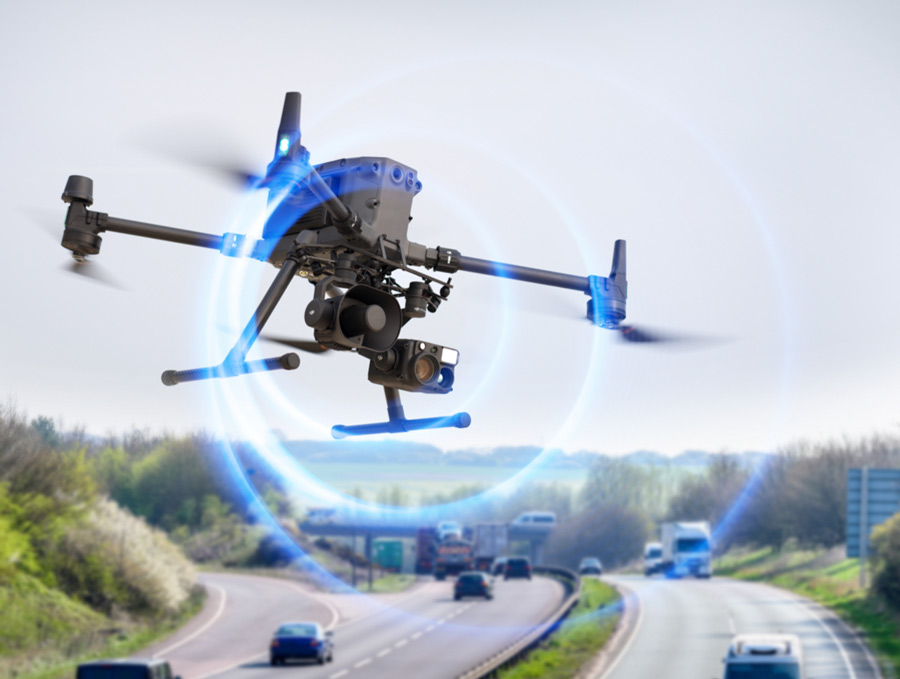

The V1 is compatible with the DJI Matrice 300 RTK, Matrice 350 RTK and Matrice 400. It requires the DJI RC Plus remote controller for full broadcast control and integration with the DJI Pilot 2 app.

At 1 metre the V1 can reach a maximum sound‑pressure level of ~127 dB. Its effective broadcast range is up to ~500 metres in optimal conditions. :contentReference[oaicite:1]{index=1}

It supports three primary modes: live record‑and‑broadcast, text‑to‑speech (TTS) with adjustable tone & speed, and audio file playback (MP3, AAC, WAV). You can loop, pause or stop playback dynamically. :contentReference[oaicite:2]{index=2}

Yes. The RC Plus has a directional microphone with noise‑suppression for clear voice capture. The V1 also synchronises with the gimbal’s tilt to aim audio precisely at target areas. :contentReference[oaicite:3]{index=3}

Dimensions: ~134 × 119 × 140 mm. Weight: ~690 g ±10 g. Rated power: ~30 W nominal output typically ~25 W. :contentReference[oaicite:4]{index=4}

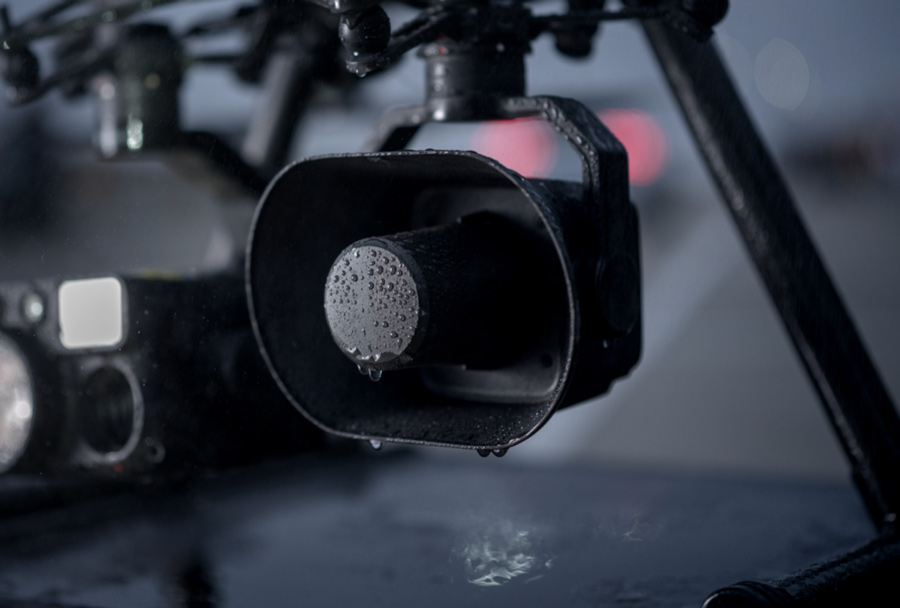

The V1 is rated IP54 for dust and splash resistance (under lab conditions) and has an operating temperature range of –20 °C to +50 °C. :contentReference[oaicite:5]{index=5}

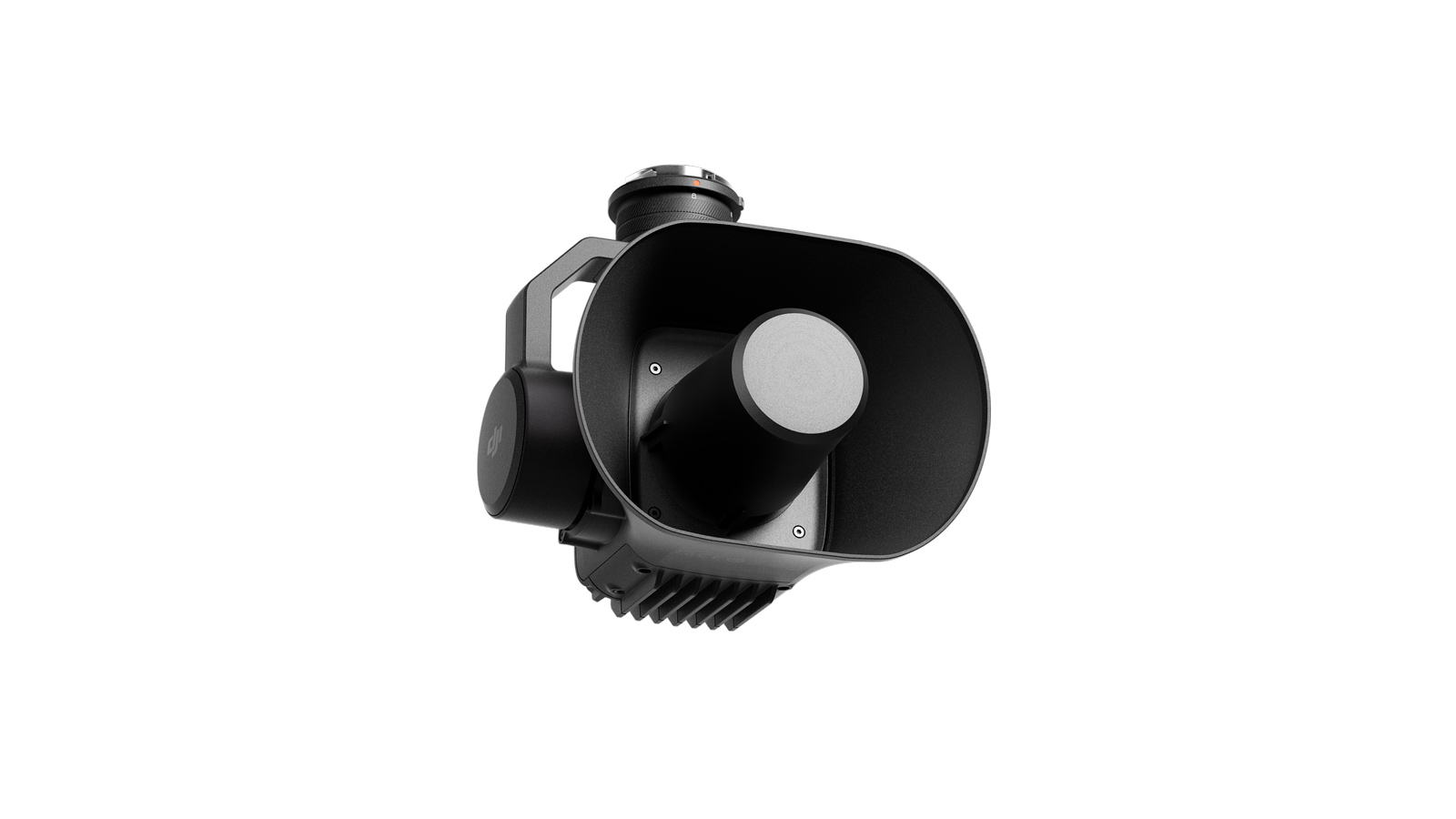

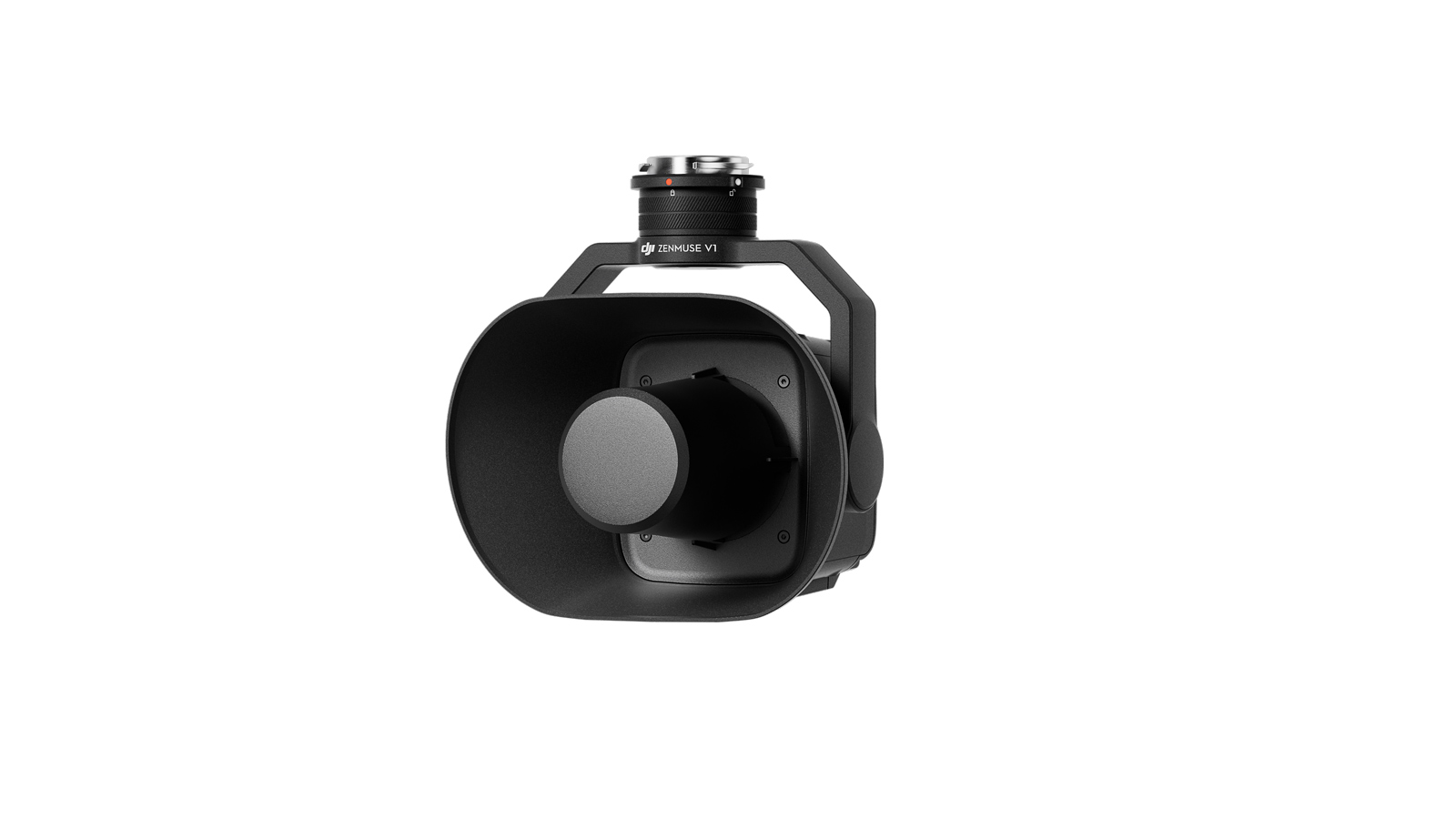

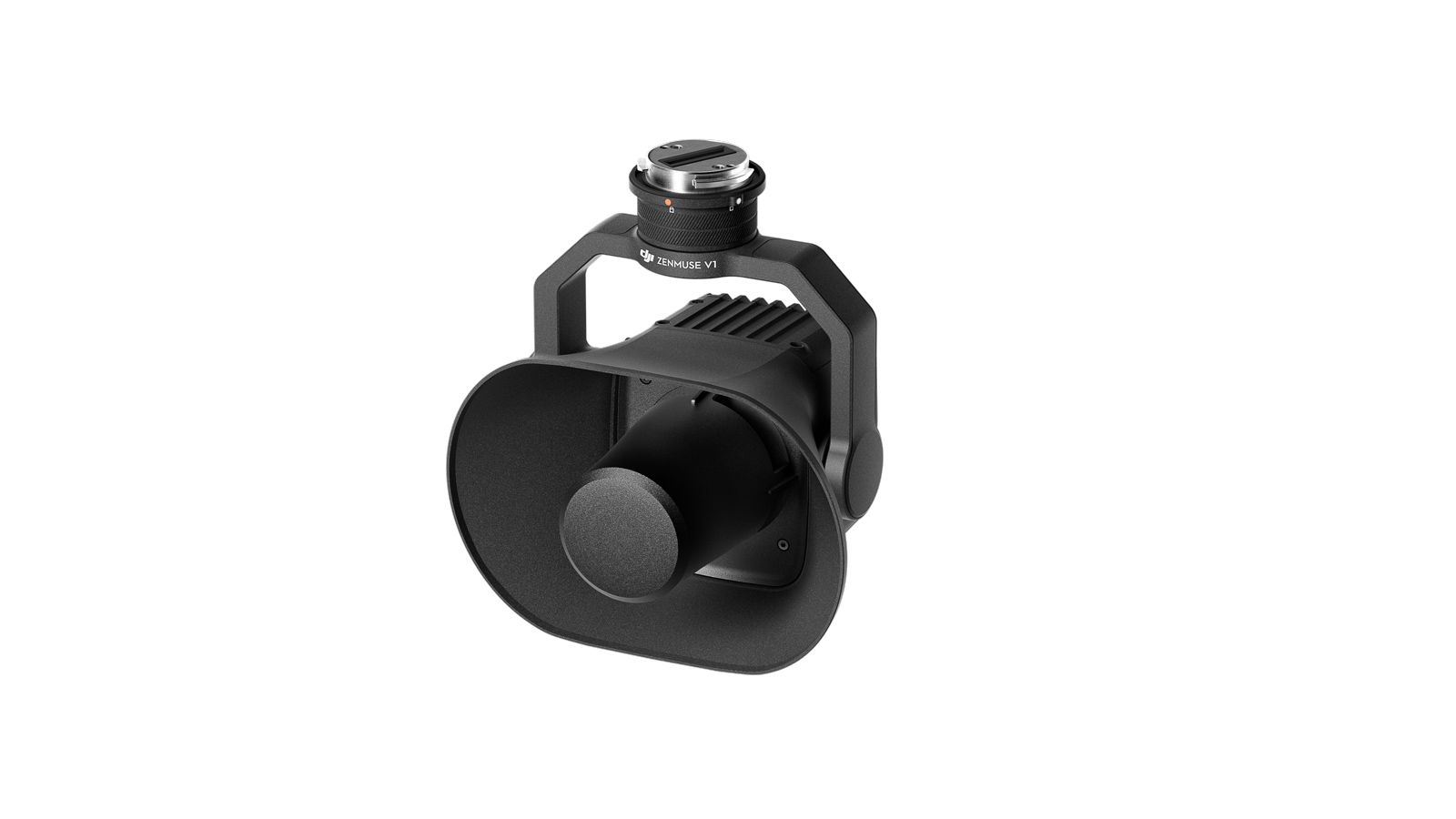

The speaker uses a single‑axis (tilt) gimbal. Controllable tilt range is −120° to +20°. It supports Follow, Free and Re‑centre modes for aligning the sound direction. :contentReference[oaicite:6]{index=6}

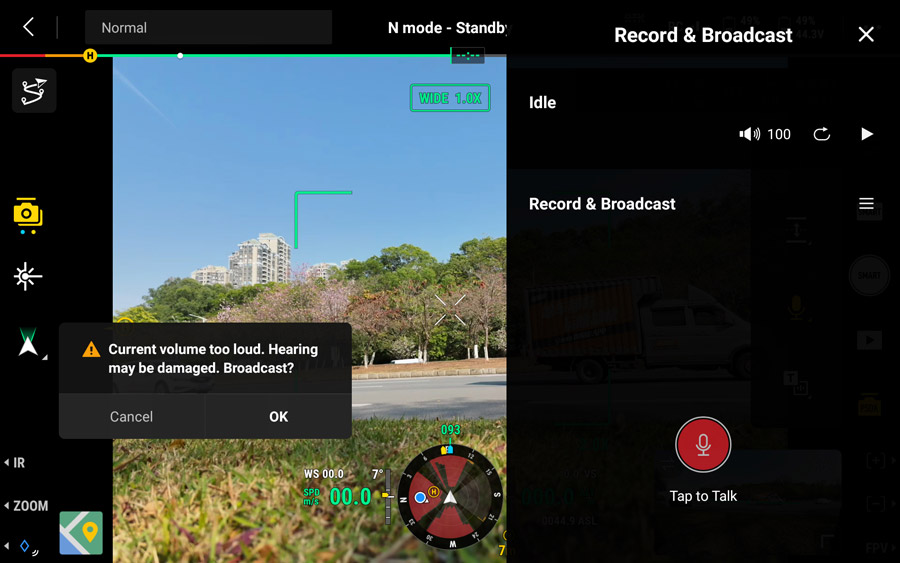

When on the ground it automatically limits volume to ~40 % to reduce risk of hearing damage. It also includes overcurrent, temperature and power protection features to prevent unsafe operation. :contentReference[oaicite:7]{index=7}

You can mount the V1 alongside imaging payloads (for example the H30 series) on upward or downward gimbal ports. Its gimbal synchronisation ensures audio direction aligns with camera views. :contentReference[oaicite:8]{index=8}

Ideal for search & rescue (broadcasting instructions), crowd control, public event announcements, traffic management, security deterrence and remote communications in industrial sites or remote environments. :contentReference[oaicite:9]{index=9}

It adds weight and draws some power, so there is an impact on flight time. Design is optimised to minimise drag and power consumption, and many users report manageable trade‑offs for the communication benefits. :contentReference[oaicite:10]{index=10}

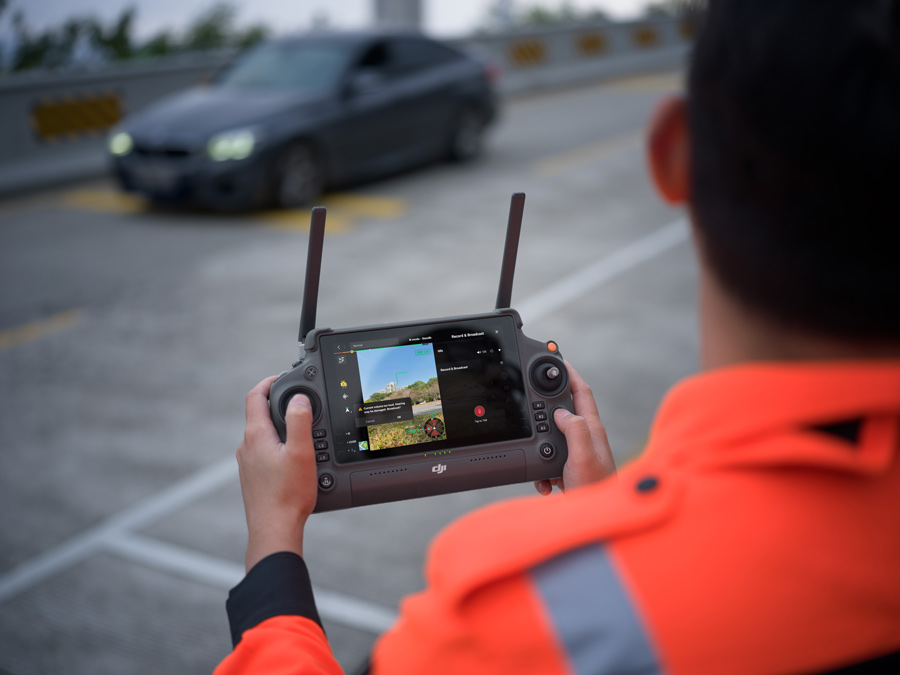

Controlled via the DJI Pilot 2 app and RC Plus: start/stop broadcast, switch modes, adjust volume, load audio files, or activate text‑to‑speech. Shortcuts on the controller enable quick recording/playback. :contentReference[oaicite:11]{index=11}

Firmware updates, user manual, release notes and product guides are available via DJI Enterprise’s Zenmuse V1 support page. Ensure firmware is up‑to‑date before deployment. :contentReference[oaicite:12]{index=12}
