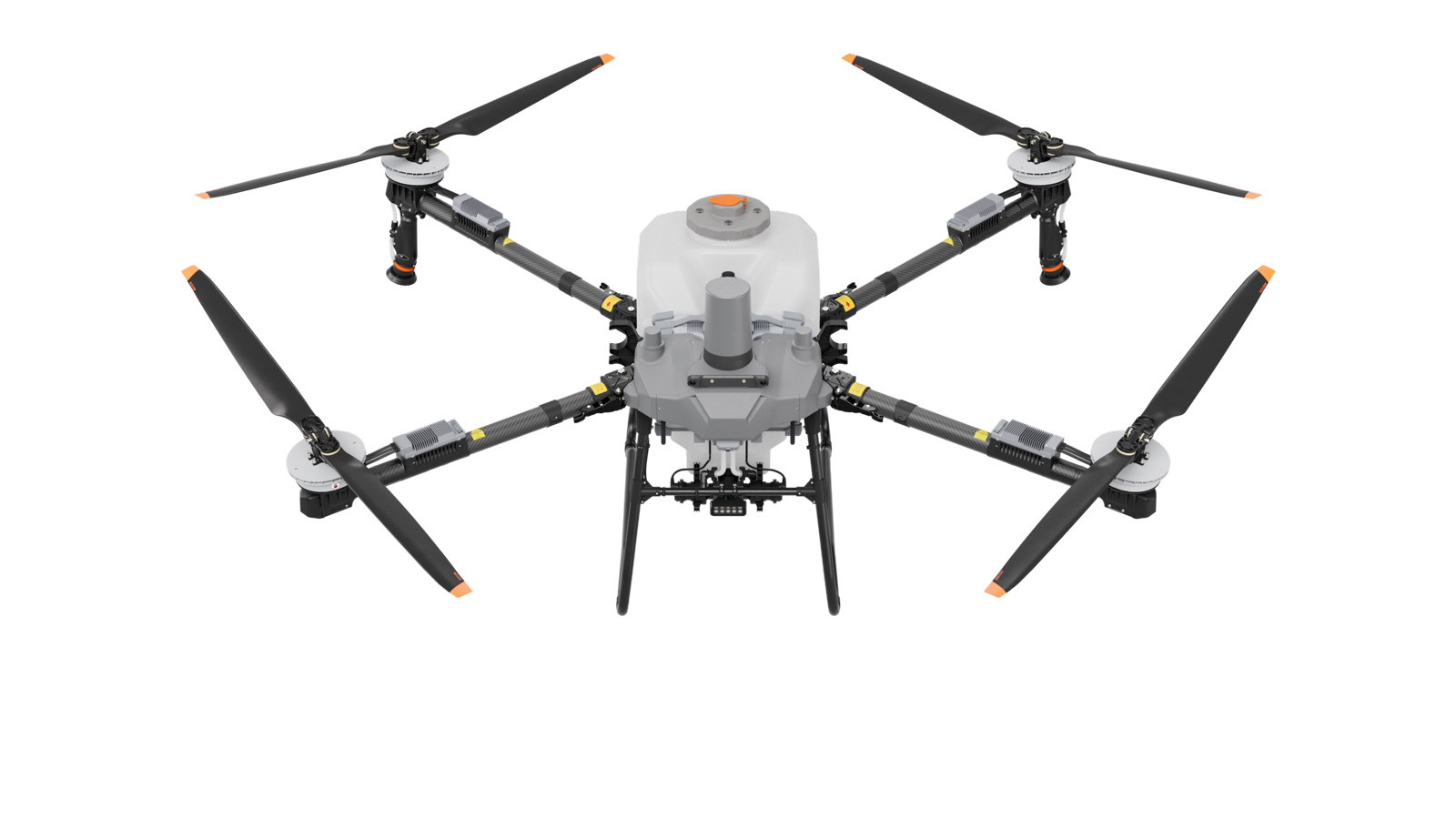

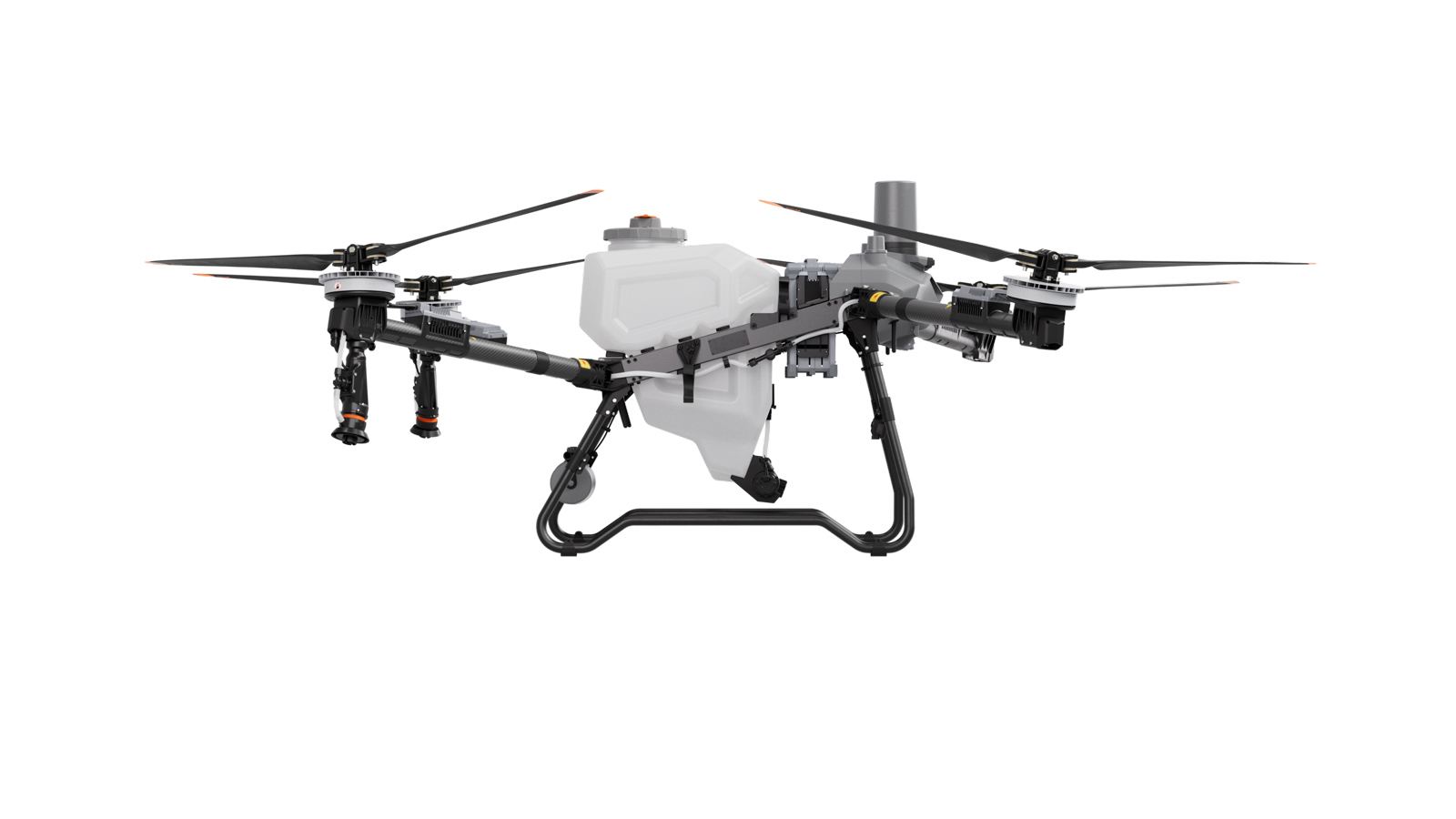

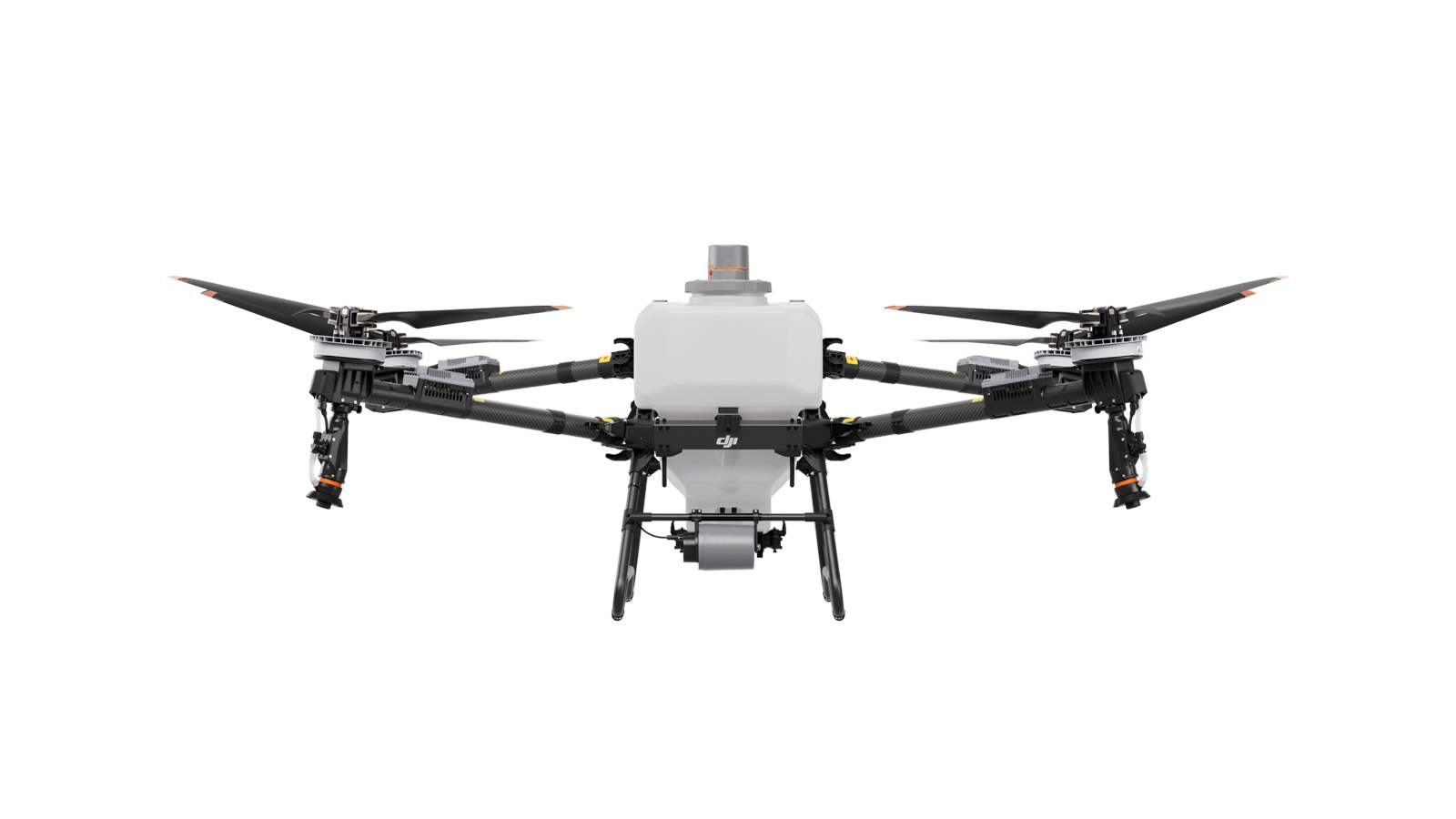

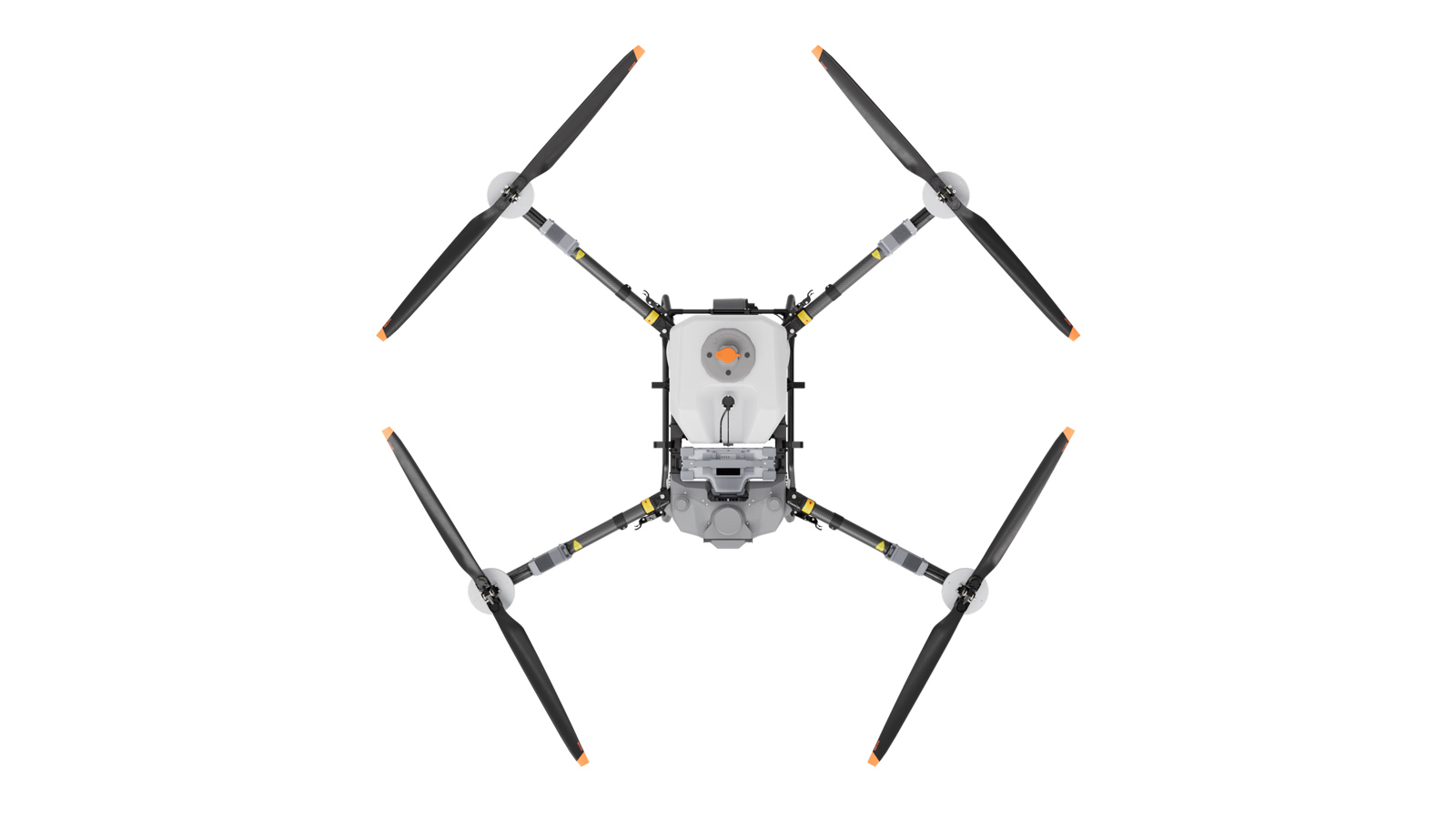

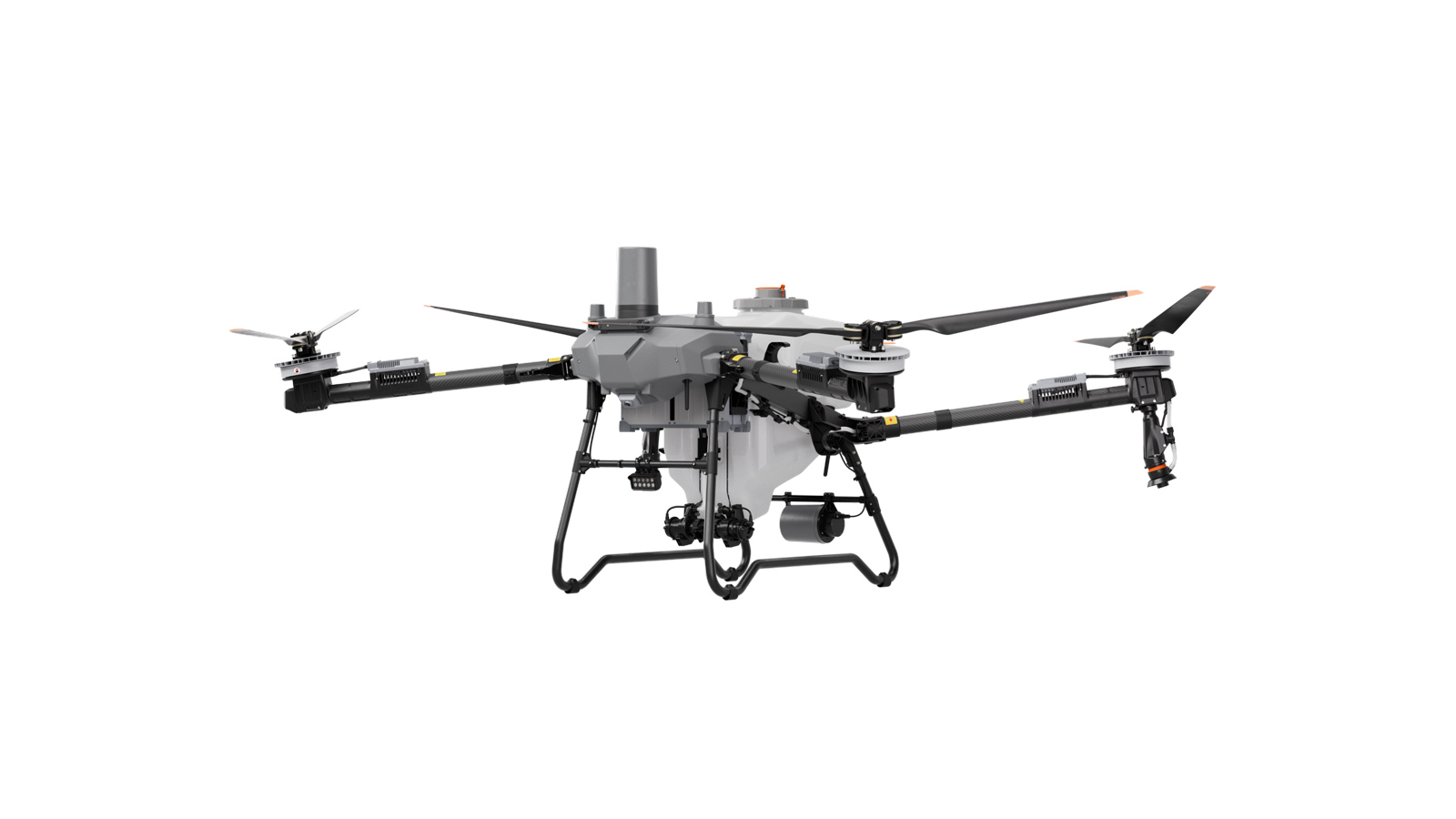

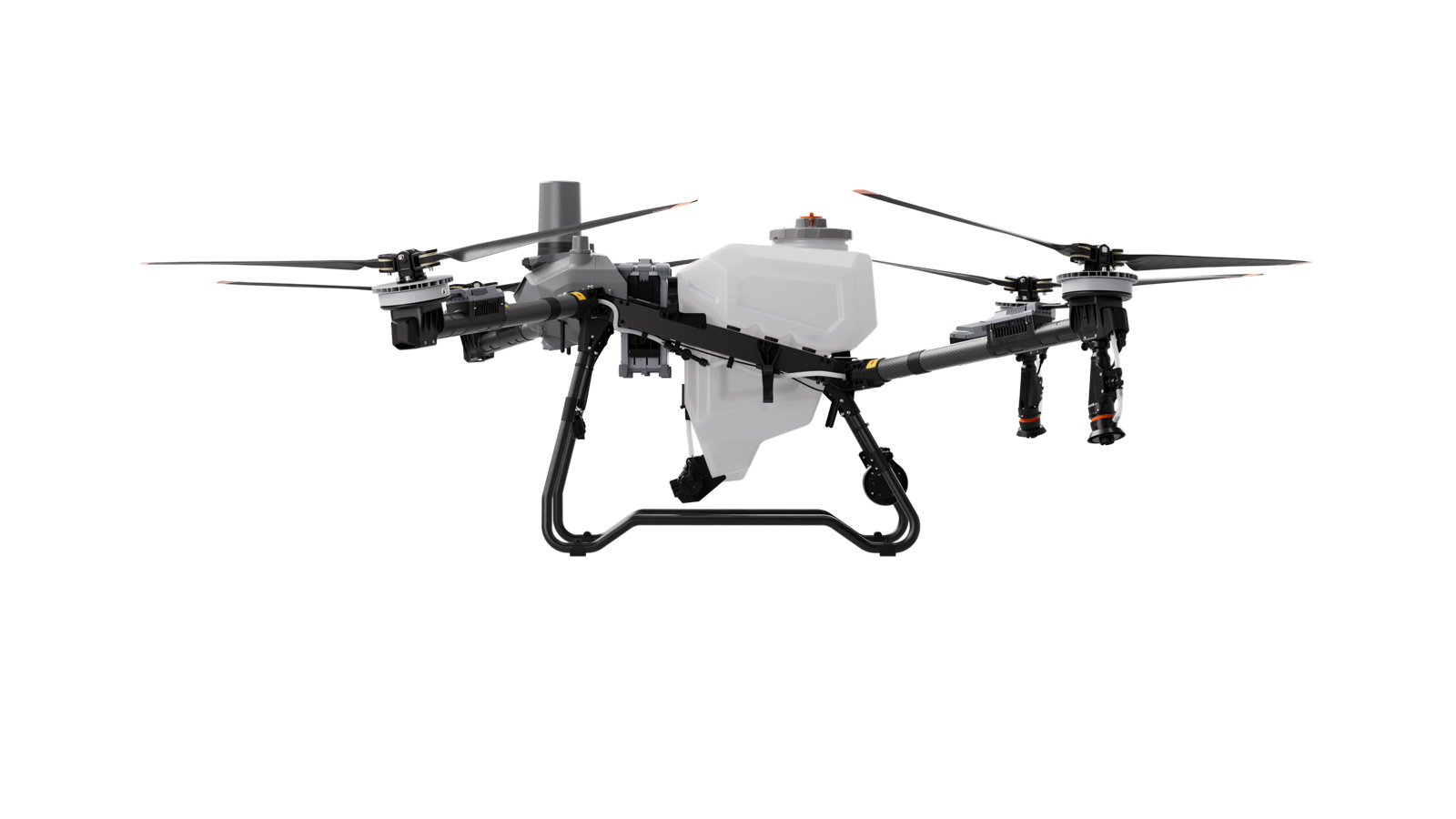

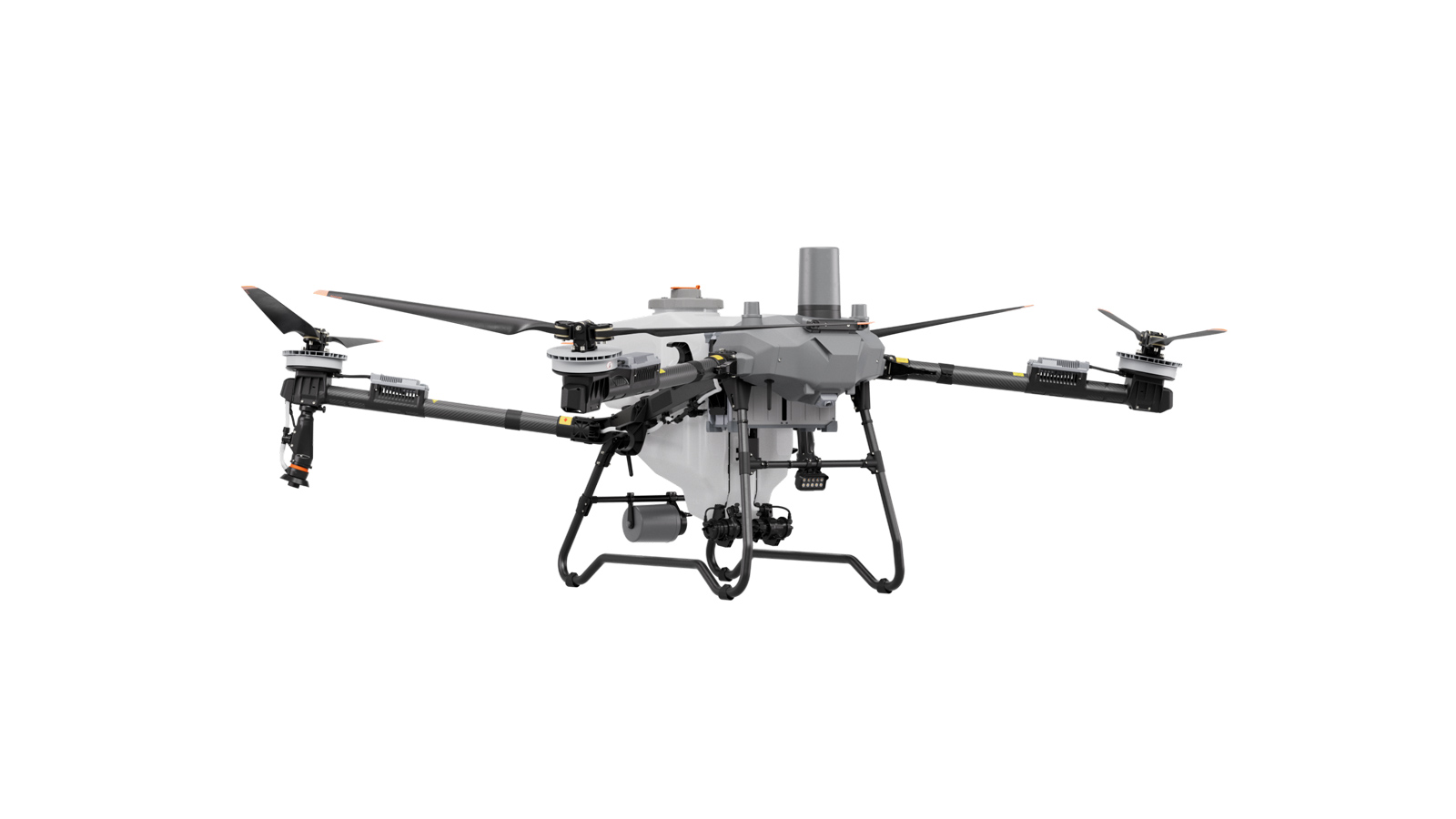

DJI AGRAS T70 P
DJI AGRAS T70 P - Image 2
DJI AGRAS T70 P - Image 3
DJI AGRAS T70 P - Image 4
DJI AGRAS T70 P - Image 5
DJI AGRAS T70 P - Image 6
DJI AGRAS T70 P - Image 7

DJI AGRAS T70 P

£10,000.00

  • High-capacity agricultural spraying drone
  • Designed for large-scale farm operations
  • Advanced radar and vision sensing
  • RTK precision for accurate application
  • Built for efficient crop spraying missions
Categories: ,

DJI Agras T70 — Optimized Heavy-Scale Spraying, Spreading & Lifting

The DJI Agras T70 represents the peak efficiency sweet spot for commercial contractors and professional large scale UK operations. While ultra heavy platforms struggle with aggressive power drain during multi directional maneuvers, the T70 balances maximum field capacity with agile energy management. Carrying a substantial 70 L spray payload, a 100 L granular hopper, and an integrated 65 kg utility winch system, this powerhouse uses an advanced propulsion setup to offer maximum efficiency per battery cycle without punishing your power infrastructure. Authorized and supported by Drone Sales UK.

70 L Liquid Spray Tank
100 L (70 kg) Granular Hopper
Up to 40 L/min Flow Rate
400 kg/min Spreading Output
65 kg Automated Winch Lift
Safety System 3.0 + Tri-Vision

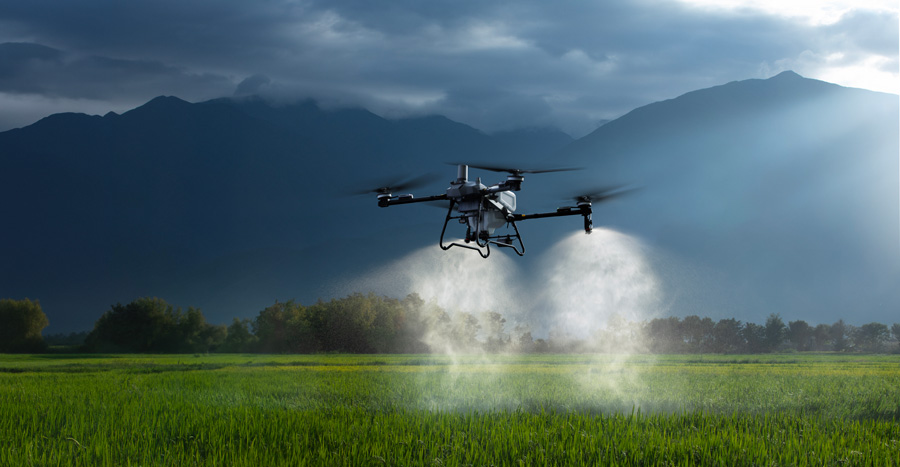

DJI Agras T70 commercial spraying drone in field

The Dynamic Efficiency Standard

Bigger is not always faster. The Agras T70 is specifically designed to maximize work output by maintaining an optimal power-to-weight footprint. Where maximum-scale alternative drones demand massive battery infrastructure and experience severe power drop-offs during frequent field turns, the T70 operates with 30% lower energy consumption. This allows for continuous, rapid flight routines, lightning-fast 7-to-9 minute turnaround charges, and less strain on your field generators.

  • Optimized 62-inch carbon fiber propellers increase aerodynamic efficiency by 15%
  • Excellent handling on irregular terrain with frequent directional changes
  • Reduced overall operating costs with extended battery life cycles

Ultra-High-Flow Spraying (70 L Capacity)

Equipped with dual atomizing centrifugal sprinklers and next-generation magnetic drive impeller pumps, the T70 delivers remarkable canopy penetration.

  • Massive Flow System: 30 L/min standard flow, scalable up to 40 L/min with the 4-nozzle layout.
  • Centrifugal Control: Variable droplet sizing (50–500 µm) eliminates nozzle clogs completely.
  • Orchard Mode Canopy Penetration: Redesigned downwash increases leaf underside coverage by 65%.
  • Solenoid Valves: Instant start-and-stop spraying prevents chemical dripping on headlands.

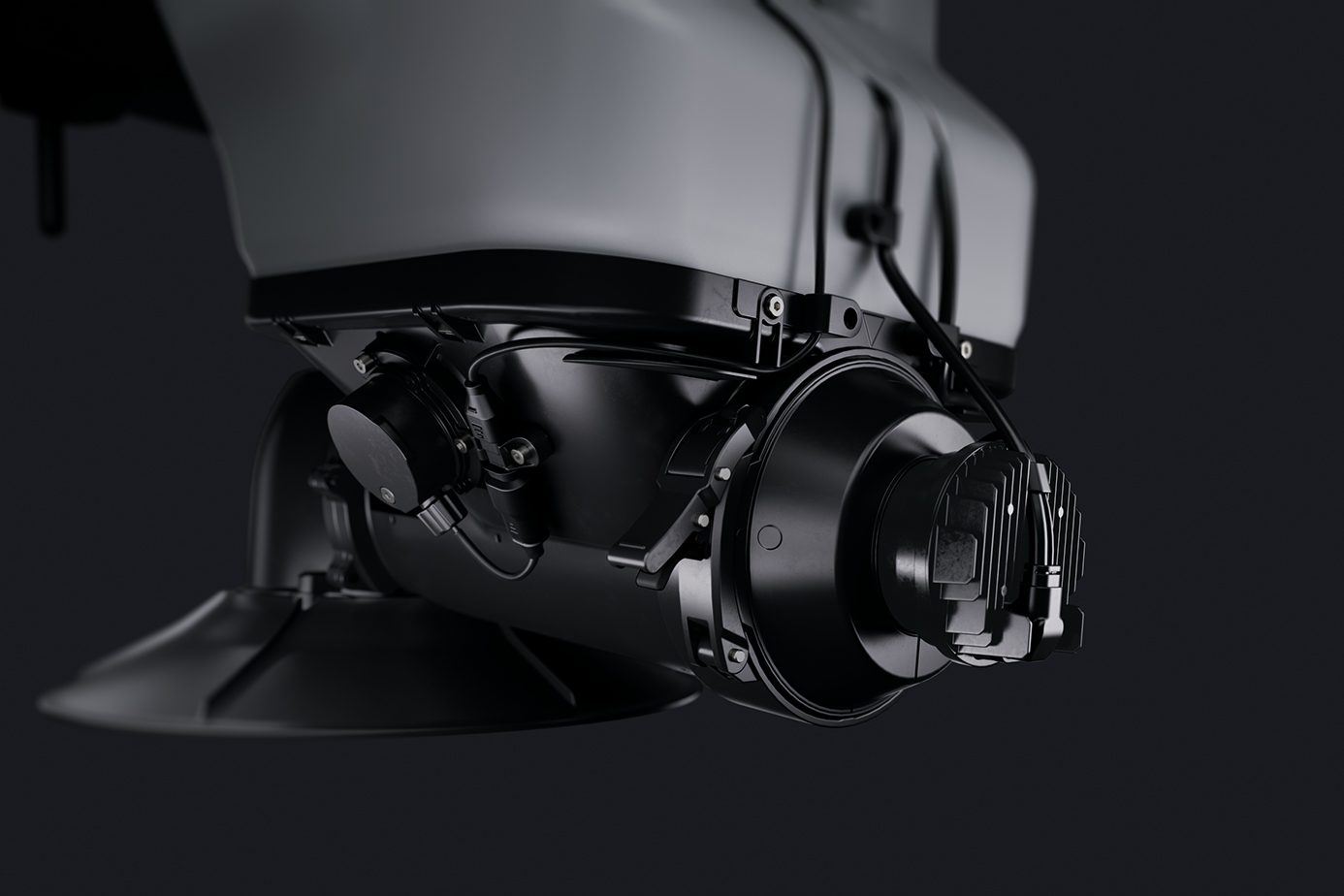

High-Output Spreading with Screw Feeder

Switch payloads in minutes. The Spreading System 4.0 features a completely redesigned screw feed structure, multiplying flow control accuracy over massive acreages.

  • 100 L Spreading Hopper: Perfectly matched to handle a full 70 kg payload safely.
  • 400 kg/min Discharge Rate: Empties material at an industrial pace with an effective 10 m swath width.
  • Interchangeable Augers: Four specialized feeder sizes process everything from fine oilseed rape to large fertilizers (0.5–10 mm).
  • Real-Time Analytics: Integrated high-precision weighing sensors monitor remaining volume instantly.

DJI Agras T70 commercial spraying drone in field

DJI Agras active safety system radar tracking

Integrated 65 kg Lifting & Radar Safety 3.0

The T70 acts as a multi-role utility asset, moving past simple crop care into a comprehensive transport system for rugged locations.

  • Smart Winch System: Supports up to 65 kg of automated lifting for tools, saplings, or estate materials.
  • Dual Phased-Array Radar: Scans terrain up to 5,000 times per second with a 360-degree horizontal field.
  • Tri-Eye Visionary Intelligence: Full AR-enhanced cockpit view with a color night-vision FPV camera for safe dusk operations.

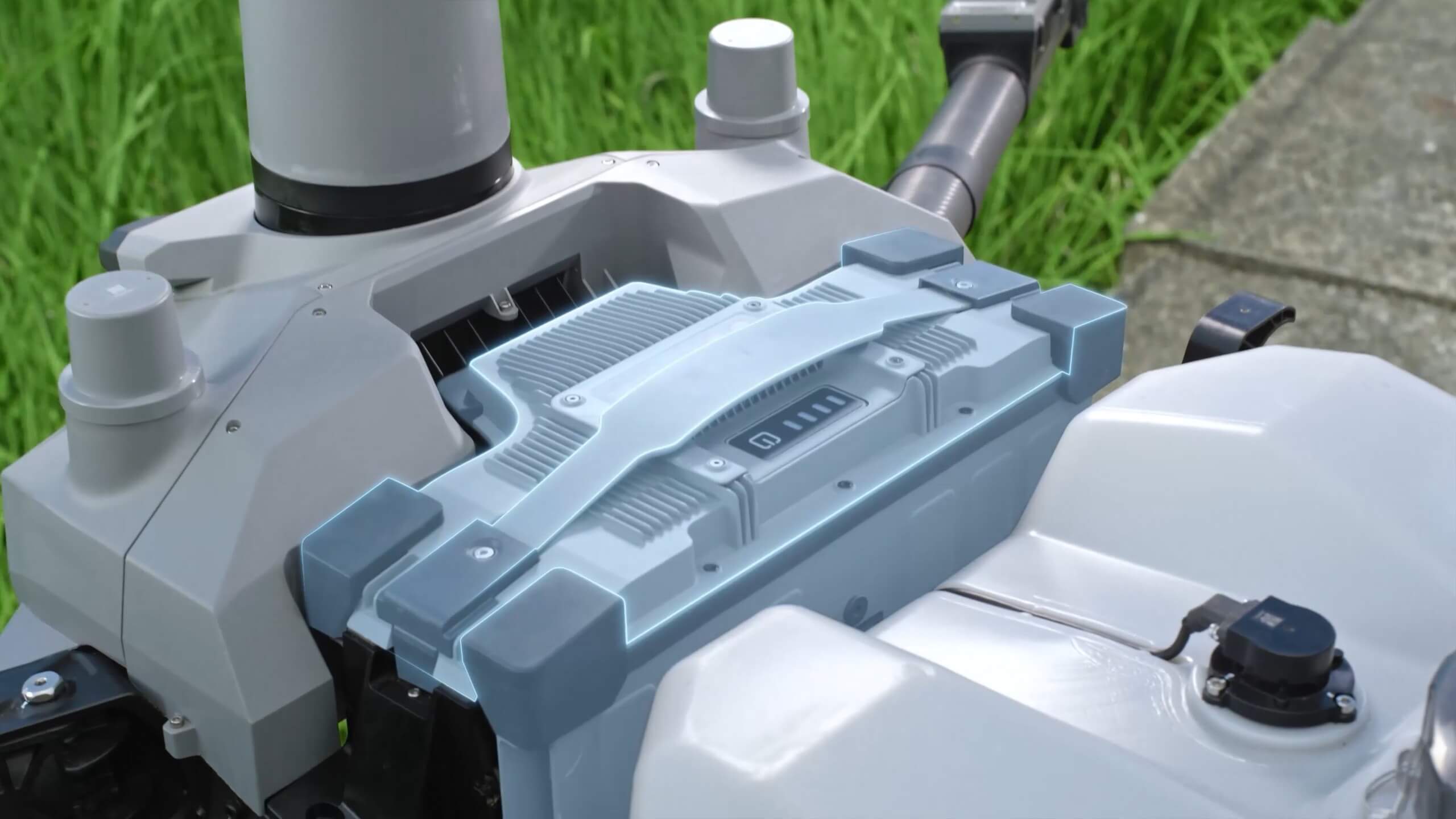

Next-Gen DB2100 Intelligent Flight Batteries

The T70 power infrastructure is optimized to provide sustainable field cycling with a significantly lower total cost of ownership compared to larger platforms.

  • Extended Life Design: New battery chemistry supports up to 1,500 charging cycles.
  • Heat Dissipation: Integrated vertical cooling channels lower core temperatures by 10°C.
  • Air-Cooled Charging Hub: Charges a massive battery from 30% to 95% in just 9 minutes.
  • Generator Friendly: Lower total kilowatt requirement prevents overload issues on standard field setups.
DJI Agras T70 battery charging station

Expected Throughput on UK Farms

High-Flow Spraying
Up to ~24 ha / hour
Maintains maximum flight speeds up to 20 m/s.

Granular Spreading
Up to ~400 kg / min
Screw-feeder accuracy doubles material consistency.

Commercial UK Applications

High-Turnaround Contractors

Optimized fuel and battery efficiency profiles cut downtime between mixed farm segments.

Arable & Root Crop Farms

Delivers industrial canopy penetration on potatoes and cereals without extreme localized downwash risks.

Mixed Forestry & Supply Transport

Utilizes the standard winch hook assembly to transport tools and crops across rugged topography.

Looking to integrate the ultimate balance of power and efficiency? Contact Drone Sales UK to discuss Agras T70 pricing, custom power kits, and regional on-farm demonstrations.

Enquire About the T70 System

What is the DJI Agras T70P?›

The DJI Agras T70P is a next-generation heavy-duty industrial and agricultural drone. Upgraded to a versatile multi-mode platform, it natively supports high-volume spraying, granular spreading, and material lifting across fields, orchards, and rugged commercial terrains.

What are its primary payload capacities?›

The T70P is a literal powerhouse, featuring a 70-liter liquid spray tank, a 100-liter granular spreading hopper, and a dedicated winched hook mechanism capable of lifting and transporting up to 65 kg of physical cargo like saplings, tools, or supplies.

How fast can the T70P spray and spread?›

Equipped with magnetic-drive impeller pumps and dual atomizing centrifugal sprinklers, it delivers a standard flow rate of 30 L/min, upgradeable to 40 L/min. For solids, its Spreading System 4.0 uses a redesigned screw feeder to blast material out at a staggering 400 kg/min across a 10-meter throw width.

What safety systems are built into the aircraft?›

The T70P features DJI’s Safety System 3.0, combining front and rear millimeter-wave radars with a Tri-Vision camera array. This sensor fusion creates full 360° obstacle avoidance and precision terrain-following, allowing the drone to navigate steep orchard slopes and bypass power lines entirely on its own.

Does the remote control support night operations?›

Yes. The drone comes with a massive 7-inch RC Plus touchscreen putting out 1400 nits of brightness. The system integrates an AR-enhanced safety display that overlays flight paths over live feeds, working alongside built-in night-vision FPV cameras and high-beam navigation lights for 24/7 productivity.

Which batteries and chargers run the T70P?›

The aircraft relies on high-capacity smart cells, specifically the DB2160 (41 Ah) or DB1500 (30 Ah) Intelligent Flight Batteries. Paired with the C12000 Intelligent Power Supply and an air-cooled heat sink, these massive batteries can fast-charge to full in just 7 to 9 minutes.

Can Drone Sales UK help source and support the Agras T70P?›

Yes. Drone Sales UK handles comprehensive enterprise industrial setups. We supply the complete T70P standard combo—including the aircraft, RC Plus, high-output C12000 generators, DB2160 flight batteries, and custom heavy-duty trailer integrations to keep your operation completely mobile.

DJI AGRAS T70P Aircraft · TKPL 2 Remote Controller (7-inch) · DB2160 Intelligent Flight Battery (41,000 mAh) · 70 L Spraying Tank · 100 L Spreading Tank 4.0 · Safety System 3.0 (Radar + Tri-Eye Vision) · Dual Atomizing Centrifugal Sprinklers · Coaxial Twin-Rotor Propulsion · 65 kg Capacity Lifting System · D14000iE Inverter Generator · RTK Relay

DJI T70P Agricultural Drone — Official Technical Specifications

A monumental leap forward in heavy-duty agricultural aviation. Engineered for massive-scale efficiency, the DJI T70P features an ultra-capable 70 kg operating payload, precision Tri-eye Visionary Intelligence, and versatile mission swapping across spraying, spreading, and heavy-lifting platforms.

70 kg Max Operating Payload
Dual Magnetic Impeller Pumps
100 L Massive Spreading Tank
Omnidirectional Radar + Tri-Eye Vision
65 kg Winch Lifting System
7-Min Ultra-Fast Charging
Aircraft & Propulsion Profile
  • Empty Weight: 52 kg (with DB1580 Battery) | 56 kg (with DB2160 Battery)
  • Max Takeoff Weight (DB2160): Spraying: 126 kg (2 nozzles) / 130 kg (4 nozzles) | Spreading: 130 kg | Lifting: 118.5 kg
  • Max Takeoff Weight (DB1580): Spraying: 102 kg (2 nozzles) / 105 kg (4 nozzles) | Spreading: 126 kg | Lifting: 115 kg
  • Dimensions: 3200×3520×960 mm (unfolded) | 1160×900×960 mm (fully folded for transport)
  • Wheelbase & Frame: 2440 mm maximum diagonal wheelbase; high-strength folding arms
  • Propulsion Power: 4x High-torque motors (Stator: 155×22 mm, 65 rpm/V) spinning 62-inch Carbon Fiber Composite propellers
  • Flight Limits & Weather: 2 km configurable radius; under 6 m/s wind resistance; 0 °C to 40 °C operational threshold
  • Positioning Precision: RTK Enabled: ±10 cm horizontal & vertical | RTK Disabled: ±0.6 m horizontal, ±0.3 m vertical
Payload Systems: Spraying, Spreading & Lifting
  • Spraying Assembly: 70 L heavy-duty HDPE tank; 70 kg operating payload capacity
  • Atomization & Pumps: Dual magnetic drive impeller pumps; max flow rate of 30 L/min (Standard 2 sprays) or 40 L/min (Optional 4 sprays); 50 – 500 μm droplet size across a 4 – 11 m effective spray width
  • Spreading System 4.0: 100 L volume capacity with centrifugal disc and feeder feeding architecture; blistering max discharge rate of 400 kg/min (compound fertilizer); effective spreading width of 3 – 10 m
  • Auger Versatility: Extra-large (0.5-10mm for fertilizer/wheat), Medium (4-6mm for rice), Optional Large (4-10mm) and Small (0.5-4mm for rapeseed/herbicides)
  • Integrated Lifting System: Fully functional winching apparatus featuring a 65 kg load capacity (including ropes/hooks) paired with a standard 10 m steel cable (supports 10 – 15 m configurations)
Safety 3.0 & Intelligent Avionics
  • Sensing Coverage: Front Millimeter Wave Radar (360° Horizontal, ±45° Vertical/Up cone) + Rear Radar (360° Vertical, ±45° Horizontal) + Tri-eye Visionary Intelligence (90° Horizontal, 180° Vertical)
  • Obstacle Avoidance: Safe distance of 2.5 m from obstacles post-braking; effective operating range up to 60 m; active obstacle bypass functional up to 13.8 m/s airspeed (minimum obstacle height 1.5 m)
  • TKPL 2 Remote Controller: Premium 7-inch LCD touchscreen operating at a brilliant 1400 cd/m² (1920×1200 resolution); runtime up to 3.8 hours (internal battery) or 7 hours total with external cell battery
Power, Charging & Ground Support Infrastructure
  • DB1580 Intelligent Battery: 30000 mAh capacity | 52 V nominal voltage | 11.7 ± 0.3 kg weight
  • DB2160 Intelligent Battery: 41000 mAh capacity | 52 V nominal voltage | 14.7 ± 0.3 kg weight
  • D14000iE Inverter Generator: 30 L fuel capacity (RON ≥91 unleaded); 87 ± 0.5 kg footprint; one-button electric start; massive 9650W DC recharge channel alongside a 1500W auxiliary AC output
  • C12000 Smart Charger: 12000W rated output (380V three-phase) or 3000W output (220V single-phase); comprehensive over-voltage, over-charge, under-voltage, and thermal safety suites
  • Ground Turnaround Speed: Charge times of just 7 – 8 minutes (DB1580) or 8 – 9 minutes (DB2160) from 30% to 95% capacity using either the D14000iE or C12000 systems
  • O4 Data Relay: Lightweight 630g signal booster expanding reliable transmission ranges up to 8 km (FCC) or 5 km (SRRC) under IP55 conditions; 5-hour internal battery life
  • D-RTK 3 AG Base Station: Comprehensive multi-band satellite tracking (GPS, BeiDou, Galileo, GLONASS, QZSS, L-BAND); Network RTK precision down to 0.8 cm horizontal; rugged IP67 enclosure

* All payload weight restrictions and intelligent mission profiles are monitored and structurally recommended inside the DJI Agriculture App to maintain total flight safety. Downward sensing assists terrain-following behavior; the safety array cannot actively bypass fast-moving dynamic objects. Turnaround charge metrics are verified at sea level in stable ambient temperatures between 15 °C and 40 °C.
