Waterproof 4K 3 Axis Gimbal Camera For Splashdrone 3/3+
£795.03
Out of stock
Categories: All Products, SD3 Payloads, Shop Front, Splashdrone 3+
Overview

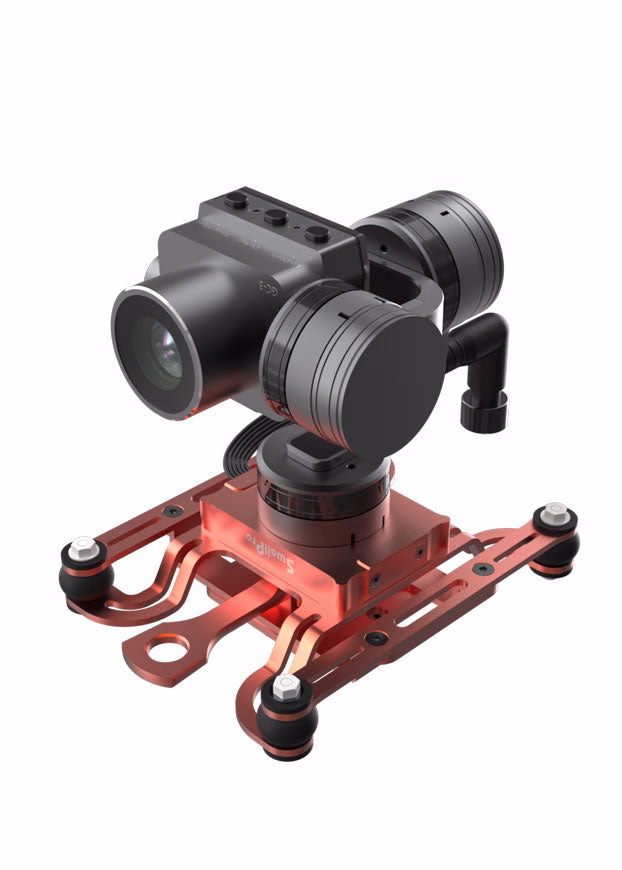

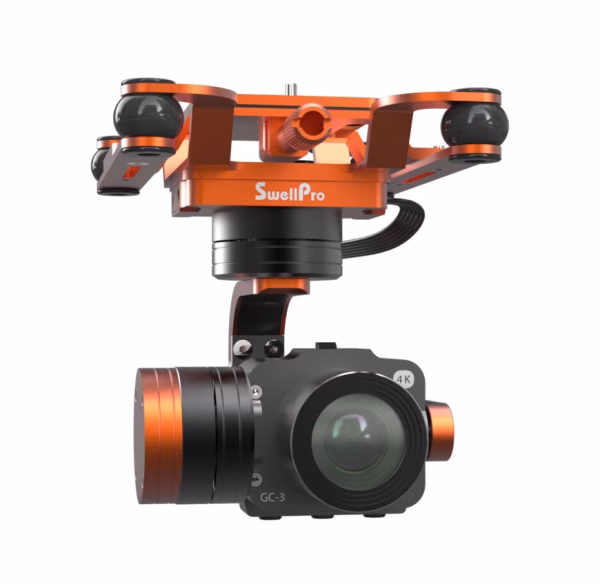

A completely new waterproof 3 axis gimbal 4k camera that is one of the core modules for SplashDrone 3+. It helps SplashDrone 3+ to capture ultra smooth video and high resolution picture, whether in the air, rain & underwater.
- All new gimbal and camera assembly. The 3 axis gimbal and new 4K camera are fully waterproof and ready to use in salt water environment.
- High sensitivity and powerful gimbal motors ensures shake-free footage at all times and hold the position of camera in the water.
- Compressive ball mount absorbs vibrations and eliminate the jelly effect significantly better than previous designs.
- Smaller field of view means a natural view with very little fish-eye effect.
- New, high quality image sensor captures more details and true colors.

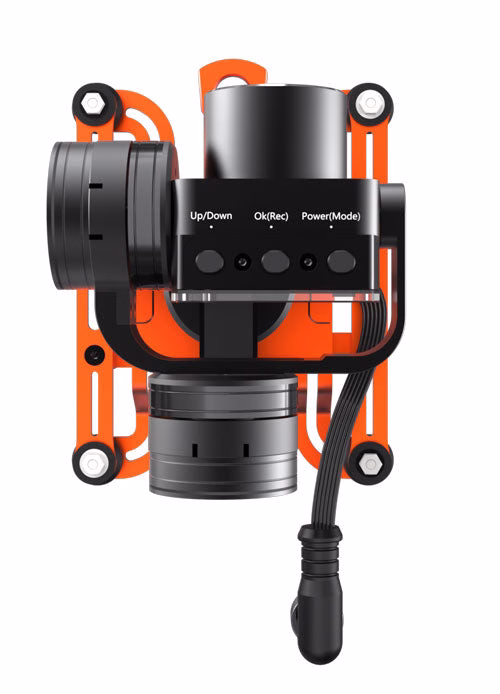

- The camera settings can be adjusted with the built-in buttons instead of an APP.
- Micro SD card recording is available in-camera.
Note the 3-axis gimbal camera is only designed for SplashDrone 3 series.
Spec Sheet
Waterproof Level: | IP67 |
Stabilization System: | 3 axis – Tilt and Pan adjustable |
Vertical Controllable Range: | Tilt -90°to 0, Pan -25° to 25° |
Angle Step Precision: | ±0.02° |
Image Sensor: | 1/2.3” CMOS, 1600M |
Lens: | FOV 90° f/2.5 |
ISO range: | 100-1600 |
Picture Resolution: | 16M(4608×3456 4:3) 12M(4000×3000 4:3) 8.3M(3840×2160 16:9) |
Video Resolution: | PAL: 3840×2160 25p 2720×1530 25p 2560X1350 50/25p 1920×1080 100/50/25p 1280×720 200/100p |
NTSC: 3840×2160 30p 2720×1530 30p 2560X1350 60/30p 1920×1080 120/60/30p 1280×720 240/120p | |
Max Video Stream: | 60Mbps |
Picture Format: | JPEG |
Video Format: | MP4/MOV |
Support Memory Card: | Class 10 or UHS-1 and above specifications Micro SD card |
Example Footage
