TB100 Flight Battery
£1,320.00
- 977 Wh intelligent battery
- Up to 59-minute flight time
- Hot-swappable dual setup
- Self-heating for cold weather
- Works with DJI BS100 station

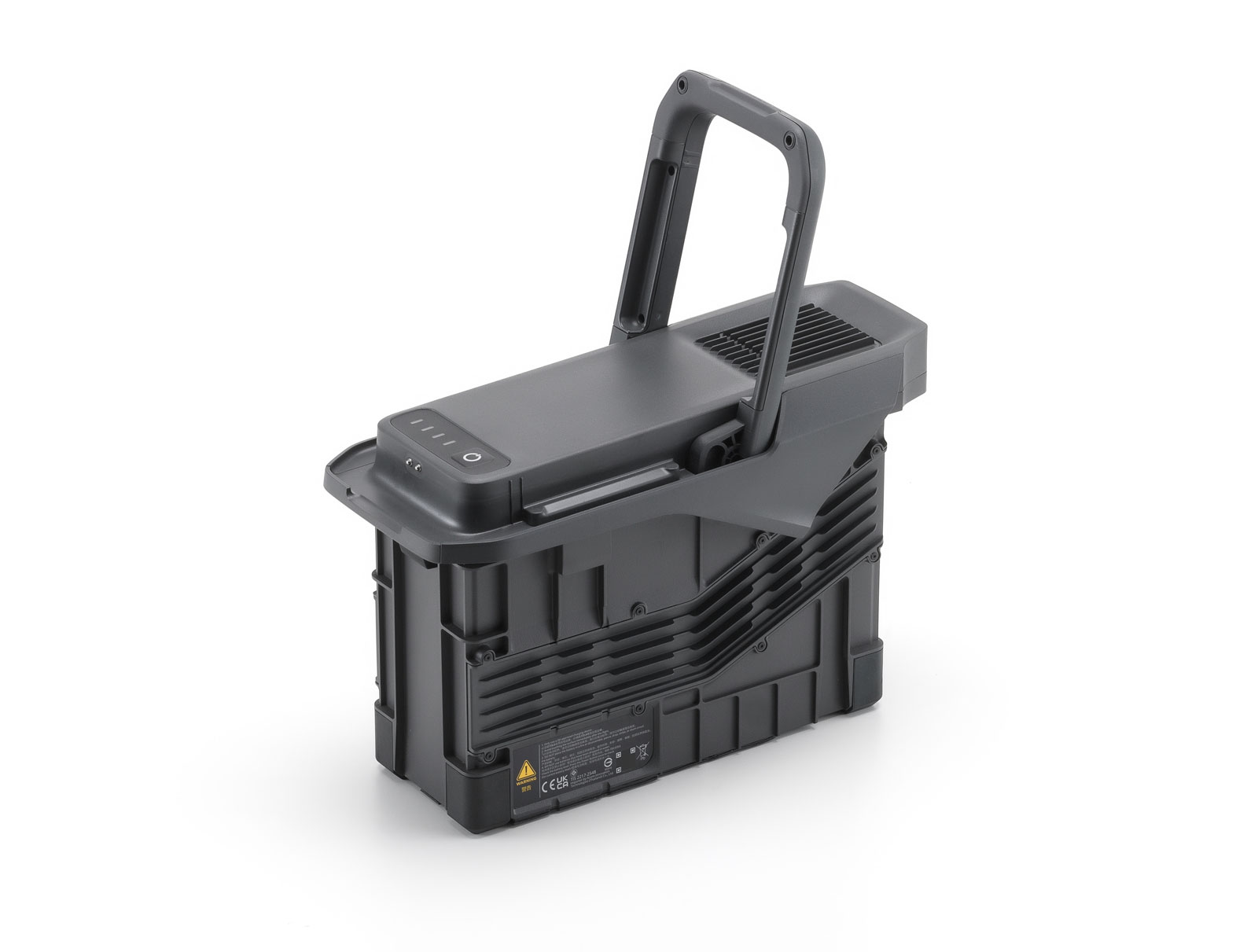

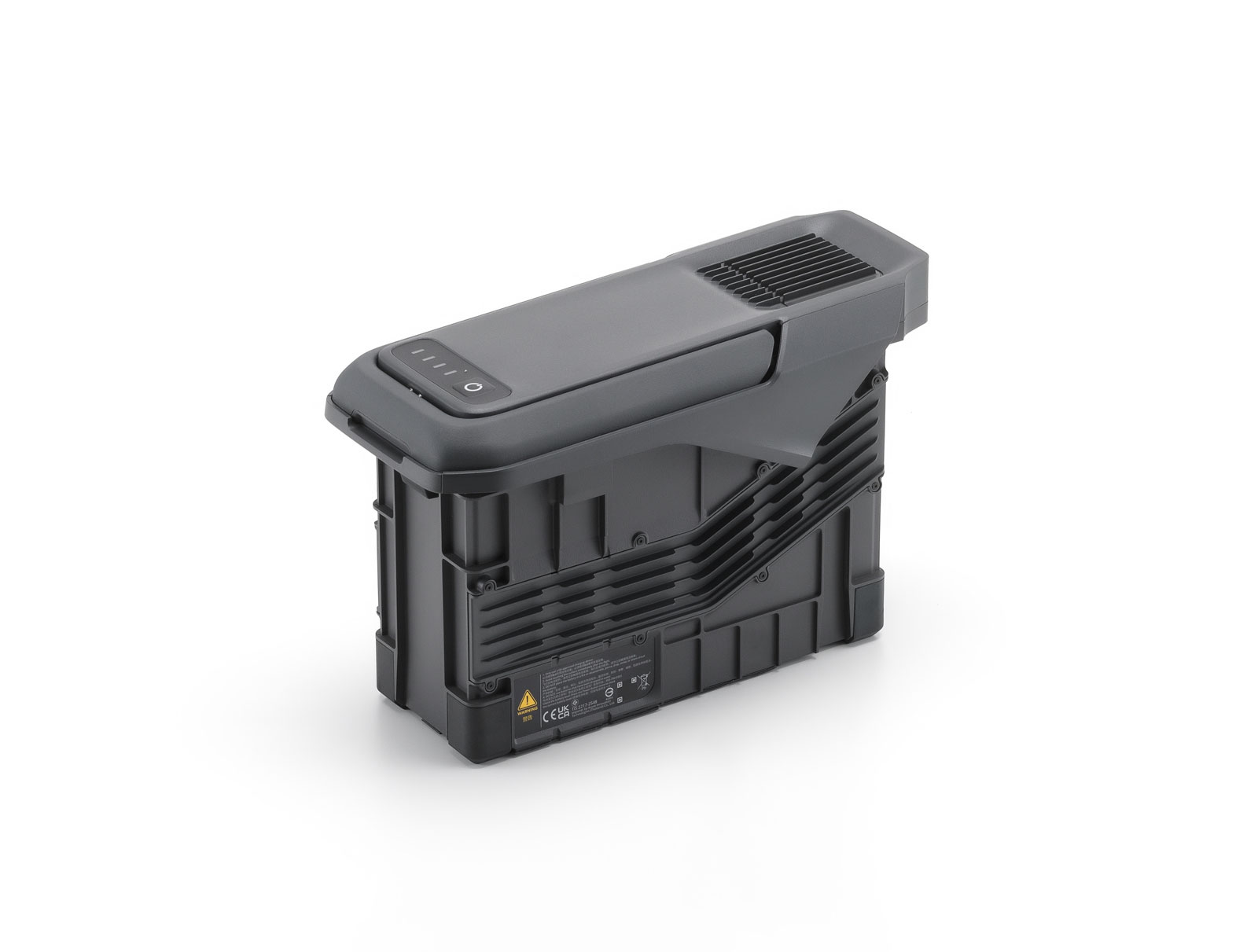

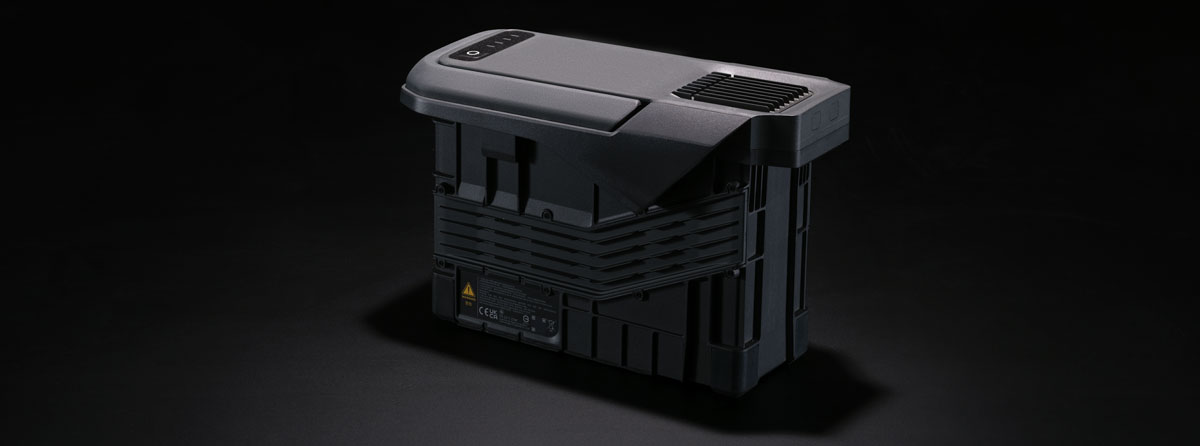

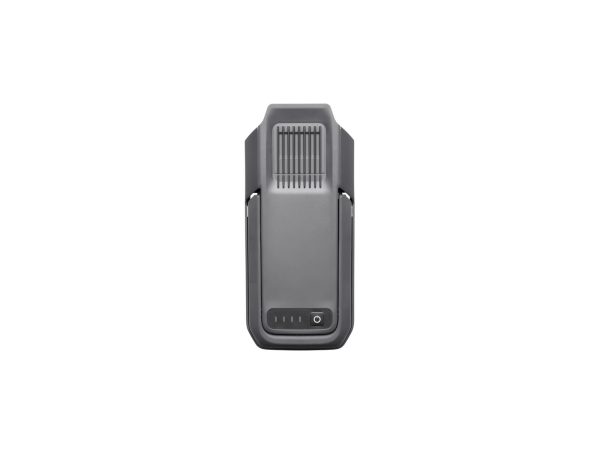

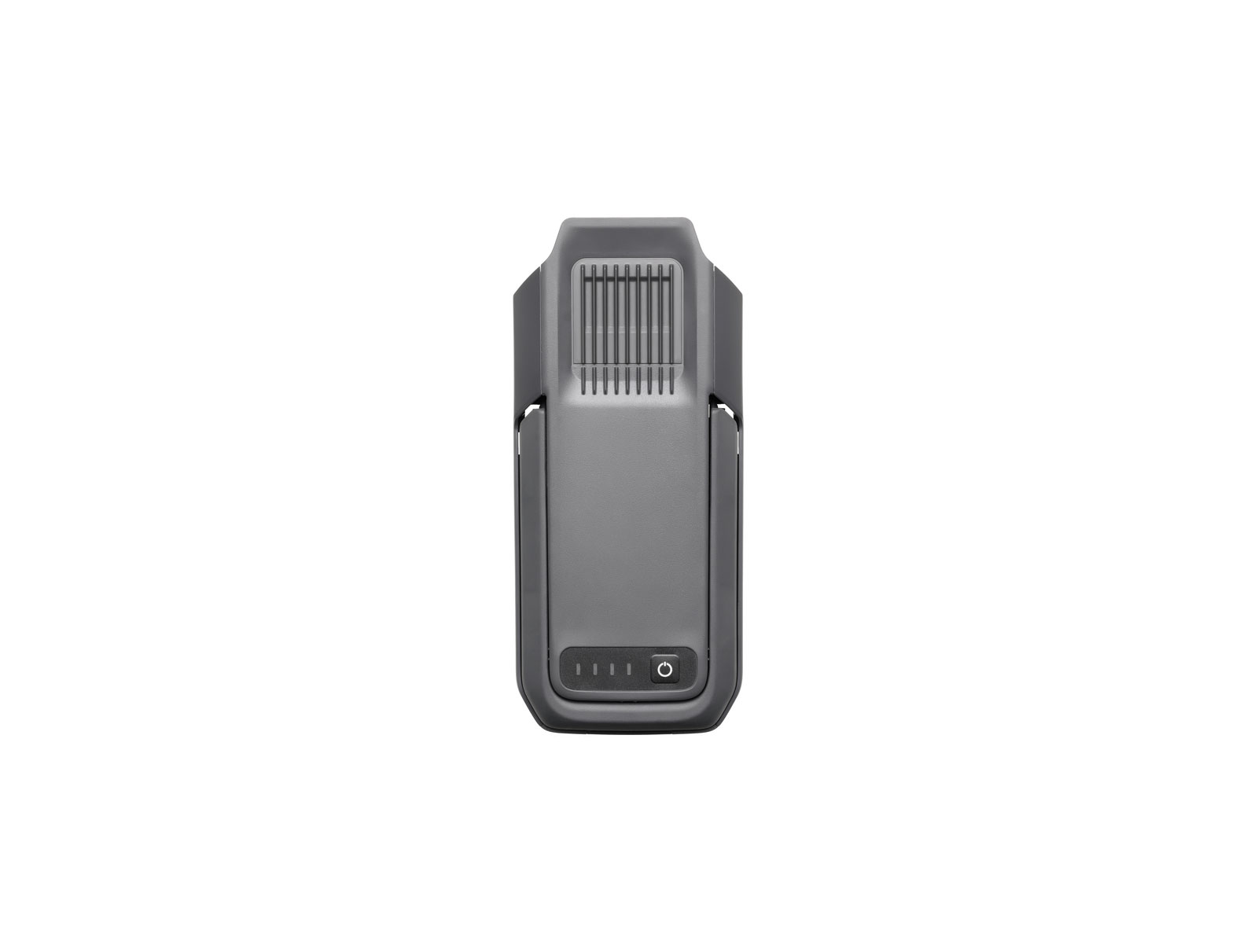

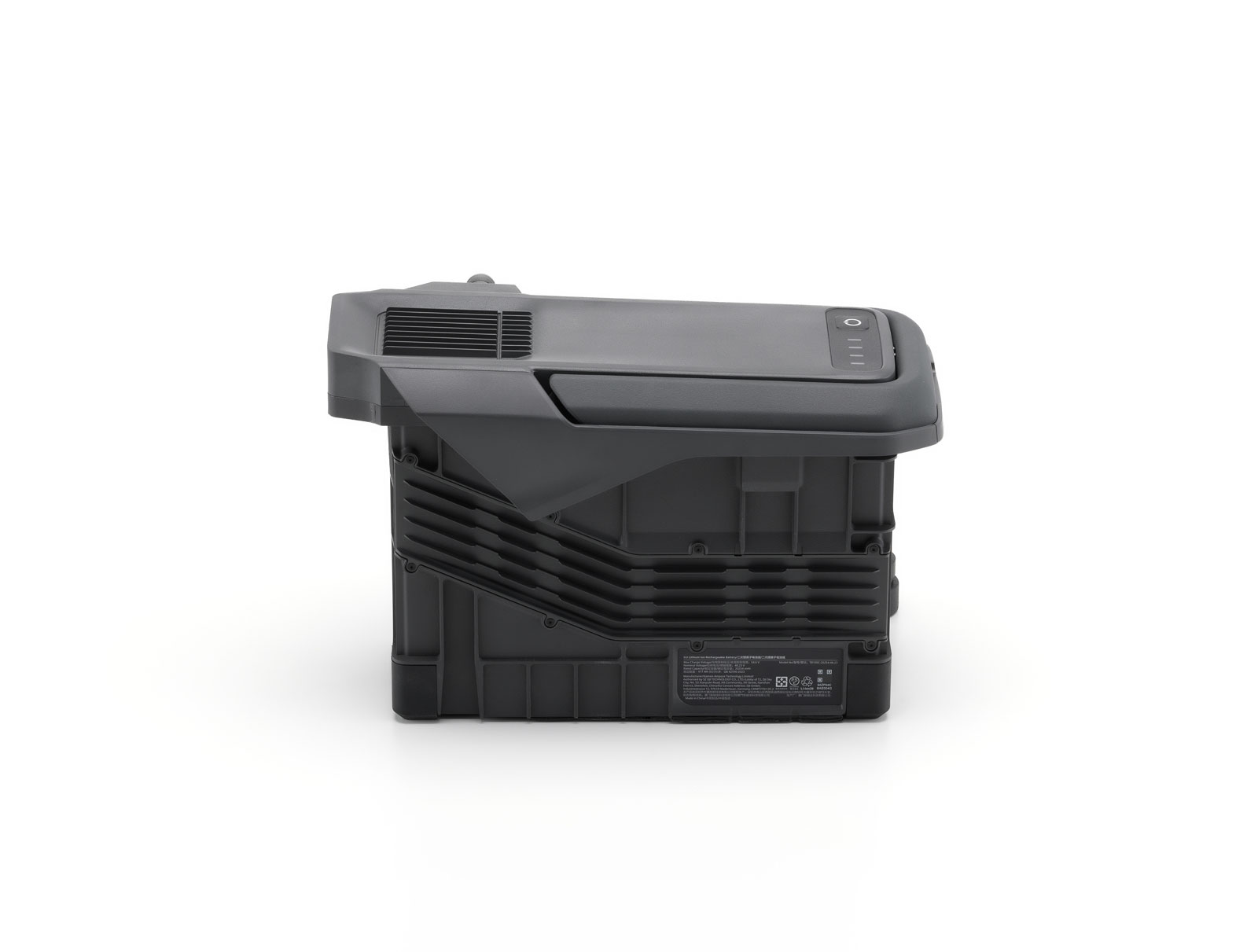

DJI TB100 Flight Battery
The DJI TB100 Intelligent Flight Battery powers the Matrice 400 with unmatched
reliability and endurance. With 977 Wh of capacity and a new high-efficiency
thermal design, it delivers extended flight times of up to 59 minutes while maintaining
stable performance in demanding conditions.
Designed for enterprise operations, the TB100 features self-heating for cold-weather missions,
hot-swappable dual battery configuration, and advanced health management
through DJI Pilot 2. The result is maximum uptime, minimal maintenance, and dependable power for every mission.
Compatible with the DJI BS100 Battery Station for fast charging and battery diagnostics, the
TB100 sets a new standard for enterprise drone energy efficiency.
DJI TB100 Intelligent Flight Battery — Frequently Asked Questions
What is the TB100 Intelligent Flight Battery?›
The TB100 is a high‑capacity intelligent flight battery designed for the DJI Matrice 400 series and similar enterprise UAV platforms, offering extended endurance and enterprise‑grade performance.
What are the key specifications (capacity, energy, voltage)?›
It features a capacity of 20,254 mAh, standard voltage of 48.23 V, energy rating of 977 Wh, and Li‑ion 13S chemistry. It weighs approximately 4,720 g ± 20 g.
How many charge cycles can the TB100 handle?›
The TB100 is rated for up to 400 charge cycles under normal conditions, helping reduce cost per flight in intensive enterprise operations.
What compatibility does the TB100 have?›
It is compatible with the DJI Matrice 400 platform and other systems that support the TB100 battery interface. Ensure firmware and system support are current.
What endurance or flight time can be expected?›
Under ideal conditions and with minimal payload, users report up to ~59 minutes of flight time with the TB100, though actual endurance depends on payload weight, wind, temperature and mission profile.
What features enhance field operations?›
The TB100 features a top‑insert design for rapid battery swaps, a sturdy handle for secure mounting/removal, and provides hot‑swap capability with compatible aircraft to minimise downtime.
What charging and operational temperature range does it support?›
Charging temperature range is typically 5 °C to 45 °C, and discharging may support down to approx. –20 °C in some conditions. For optimum performance keep within manufacturer’s specified limits.
How should I care for and maintain the TB100?›
Store the battery in a cool, dry place, avoid deep discharges, inspect for swelling or damage, follow manufacturer’s battery care guidance, and keep firmware/management system updated. Replace if performance degrades significantly.
What support and bundle options are available from your team?›
We offer UK‑ready bundles, installation advice, battery care plans, and spares for the TB100. Contact us for tailored quotes and operational support.
How do I purchase and what’s the cost in the UK?›
Pricing varies by stock, configuration and region. Please check our product listings or contact us for current UK pricing and lead times.
DJI TB100 Flight Battery – Specifications
| Model | TB100 Intelligent Flight Battery |
| Capacity | 20,254 mAh / 977 Wh |
| Nominal Voltage | 48.23 V (13S Li-ion) |
| Weight | Approx. 4.72 kg ± 20 g (per battery) |
| Energy Density | 218 Wh/kg |
| Configuration | Dual hot-swappable system (pair required) |
| Operating Temperature | −20 °C to 50 °C |
| Charging Temperature | 5 °C to 45 °C |
| Self-Heating Function | Supported (auto / manual) |
| Max Discharge Rate | Up to 4C (typical use) |
| Max Charge Rate | Up to 2C (using BS100 station) |
| Cycle Life (Reference) | Approx. 400 cycles (proper usage) |
| Compatible Charger | DJI BS100 Battery Station |
| Flight Time Reference | Up to 59 minutes (no payload, no wind) |
