DJI Dual-Battery Lifting System

DJI Dual-Battery Lifting System

£1,278.00

  • Dual-battery heavy lift system
  • Designed for DJI FlyCart 100
  • Supports high payload missions
  • Balanced power distribution
  • Improved redundancy and safety
Category:

DJI Dual-Battery Lifting System — Efficiency for Industrial Logistics

The DJI Dual-Battery Lifting System is a specialised payload solution designed for the FlyCart 100, providing a cost-effective and reliable method for short-distance aerial transport. By utilising two intelligent flight batteries simultaneously, this system extends operational endurance and ensures mission continuity, supported by Drone Sales UK for expert advice on heavy-lift workflows.

85 kg Payload Capacity
Dual-Battery Endurance
Real-Time Weighing
Auto-Balance Control
Emergency Cable-Cut

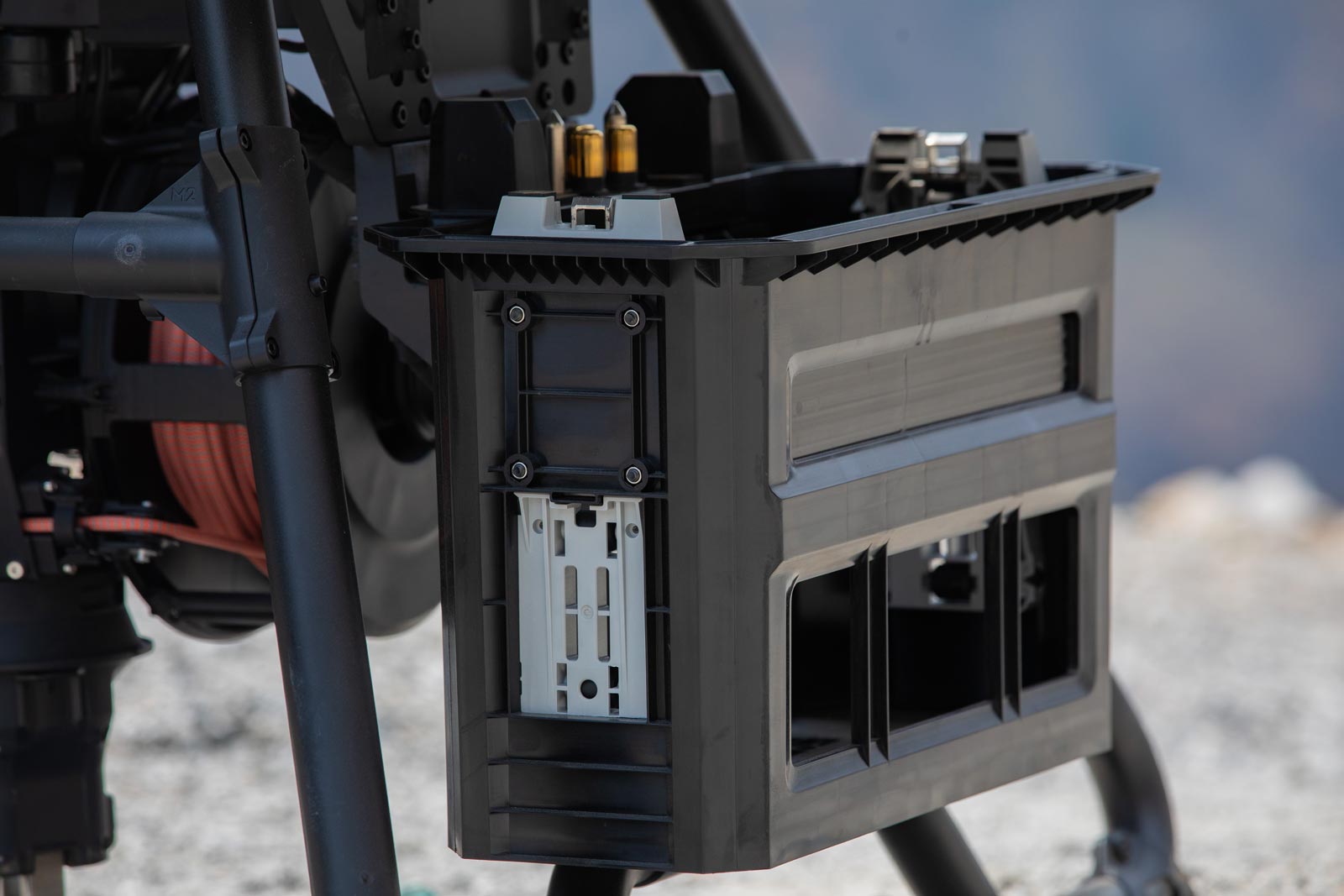

DJI Dual-Battery Lifting System on FlyCart 100

Optimised for Heavy-Lift Endurance

While a single-battery setup maximises raw lift, the Dual-Battery Lifting System is engineered for the “sweet spot” of payload and range, allowing for a massive 85 kg load with significantly increased flight time.

  • 85 kg max payload in dual-battery configuration.
  • Up to 12 km flight distance at 149.9 kg takeoff weight.
  • Enhanced power redundancy; flight continues even if one battery fails.
  • Ideal for repeatable short-to-medium range logistics cycles.

Smart Cargo Management

Safety is built into the hardware. The system features integrated sensors that monitor the weight and balance of the cargo in real-time, ensuring the aircraft remains stable during flight and delivery.

  • Real-Time Weighing prevents accidental overloading.
  • Auto-Balance Control minimises cargo swing during transit.
  • Mechanical hook system for secure, manual-release attachment.
  • Precision 10m fixed cable length for consistent drop heights.
Lifting System Safety Features

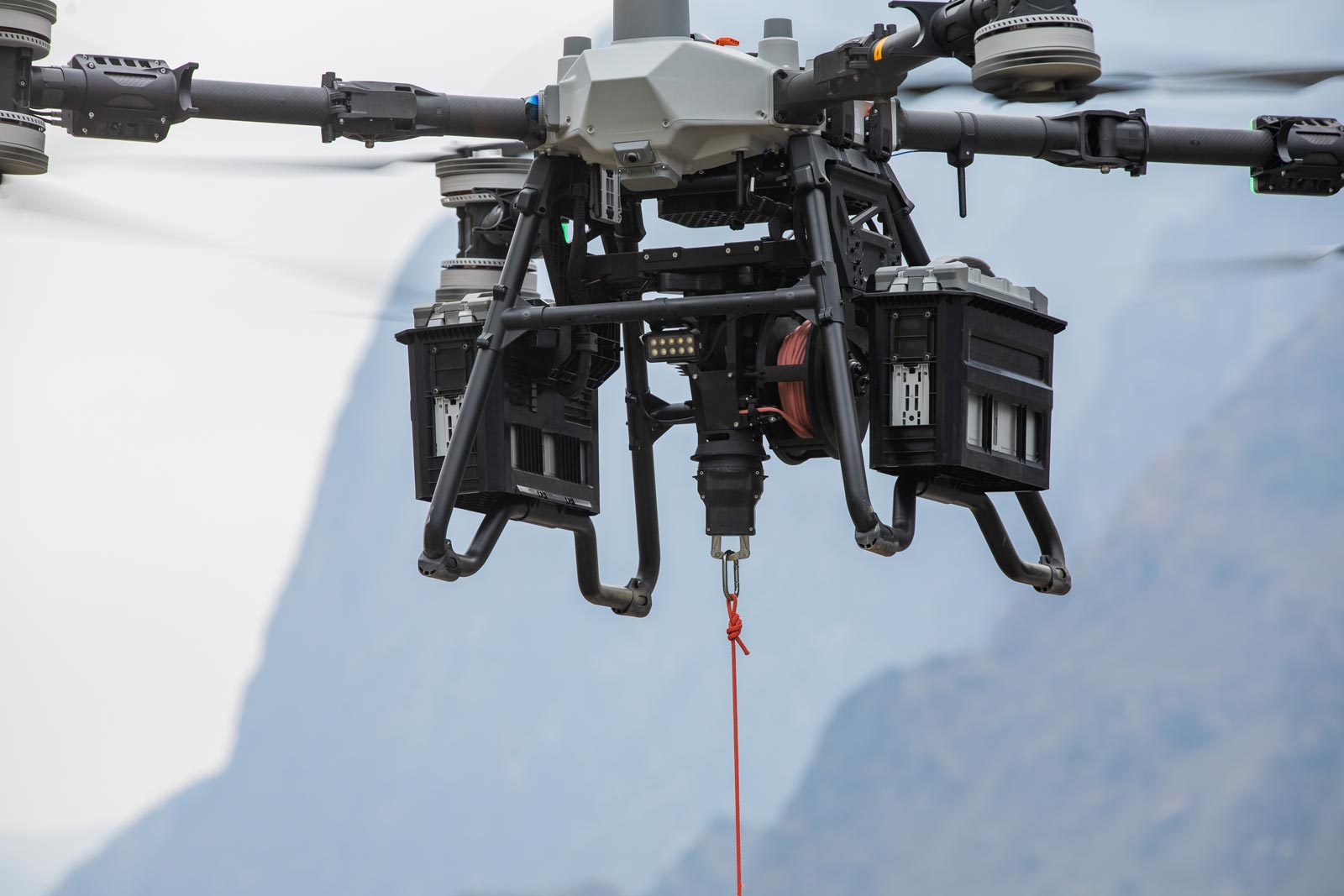

Emergency Cable Cut Mechanism

Mission-Critical Reliability

In high-risk environments, the ability to free the aircraft is paramount. The system includes an intelligent emergency escape mode to protect the drone and surroundings if a load becomes snagged.

  • Cable-Cut Escape (Heat and Melt) for emergency release.
  • Integrated self-check procedures upon power-on.
  • Seamless communication with the DJI Delivery App.
  • Durable construction designed for all-weather industrial use.

Rapid Turnaround Workflows

Designed for busy job sites, the system supports hot-swapping batteries to keep the drone in the air. This minimises downtime between supply runs for construction or maintenance teams.

  • Hot-swappable battery support for non-stop operations.
  • Quick-install bracket compatible with FlyCart 100 mounting.
  • Corrosion-resistant materials for marine and coastal use.
  • Compatible with standard DJI enterprise charging ecosystems.
Lifting System Demonstration
85KG PAYLOAD
Dual-Battery Power
AUTO-BALANCE
Intelligent Sway Control
EMERGENCY CUT
Instant Disconnect

Lifting System Capabilities

Select a system feature above to view technical specifications and safety data.

HEAVY LIFT CAPACITY

The Dual-Battery Lifting System is designed for high-efficiency logistics. While the single-battery mode can lift 100 kg for short bursts, the dual-battery configuration allows for a sustained 85 kg payload over a 12 km range, providing the endurance required for industrial sites and remote infrastructure delivery.

AUTO-BALANCE CONTROL

Using high-precision force sensors, the system detects payload movement and communicates directly with the aircraft’s flight controller. This allows the drone to proactively compensate for pendulum effects, ensuring stable flight even in gusty winds or during complex manoeuvres.

CABLE-CUT ESCAPE

Safety is paramount in heavy-lift operations. The system is equipped with a thermal-fuse cable release. In the event of an emergency where the cargo becomes entangled or risks the safety of the aircraft, the pilot can initiate a “one-click” escape, instantly severing the cable to free the drone.

Example Use Cases

Offshore Maintenance

Deliver heavy components and tools to oil rigs or wind turbines where landing is difficult but endurance is required for sea-crossings.

Remote Construction

Transport structural fixings, cement, or equipment to mountain-side sites with continuous power for back-to-back supply runs.

Resource Logistics

Move survey equipment and industrial spares across large-scale mines or forestry projects where road access is non-existent.

DJI Dual-Battery Lifting System Details

Optimising your logistics with the FlyCart 100? Speak with Drone Sales UK to determine the best battery configuration for your payload requirements.
