DB2160 Intelligent Flight Battery
  1. DB2160 Intelligent Flight Battery
  2. DB2160 Intelligent Flight Battery - Image 2
  3. DB2160 Intelligent Flight Battery - Image 3

DB2160 Intelligent Flight Battery

£3,189.00

  • High capacity Agras flight battery
  • Designed for DJI Agras T100
  • Intelligent battery management system
  • Fast swap for continuous operation
  • Built for demanding farm missions
Category:

DJI DB2160 Intelligent Flight Battery — High-Density Power for Heavy Payloads

The DJI DB2160 is a high-capacity, smart power source designed specifically for the rigorous demands of industrial delivery and agricultural missions. With a massive 41,000 mAh capacity and high-energy density cells, it provides the stable voltage required for heavy-lift operations with the FlyCart 100 and Agras platforms, backed by Drone Sales UK for reliable stock and expert support.

41,000 mAh Capacity
1,500 Charge Cycles
9-Minute Fast Charging
Triple Air-Channel Cooling
500A High-Power Connector

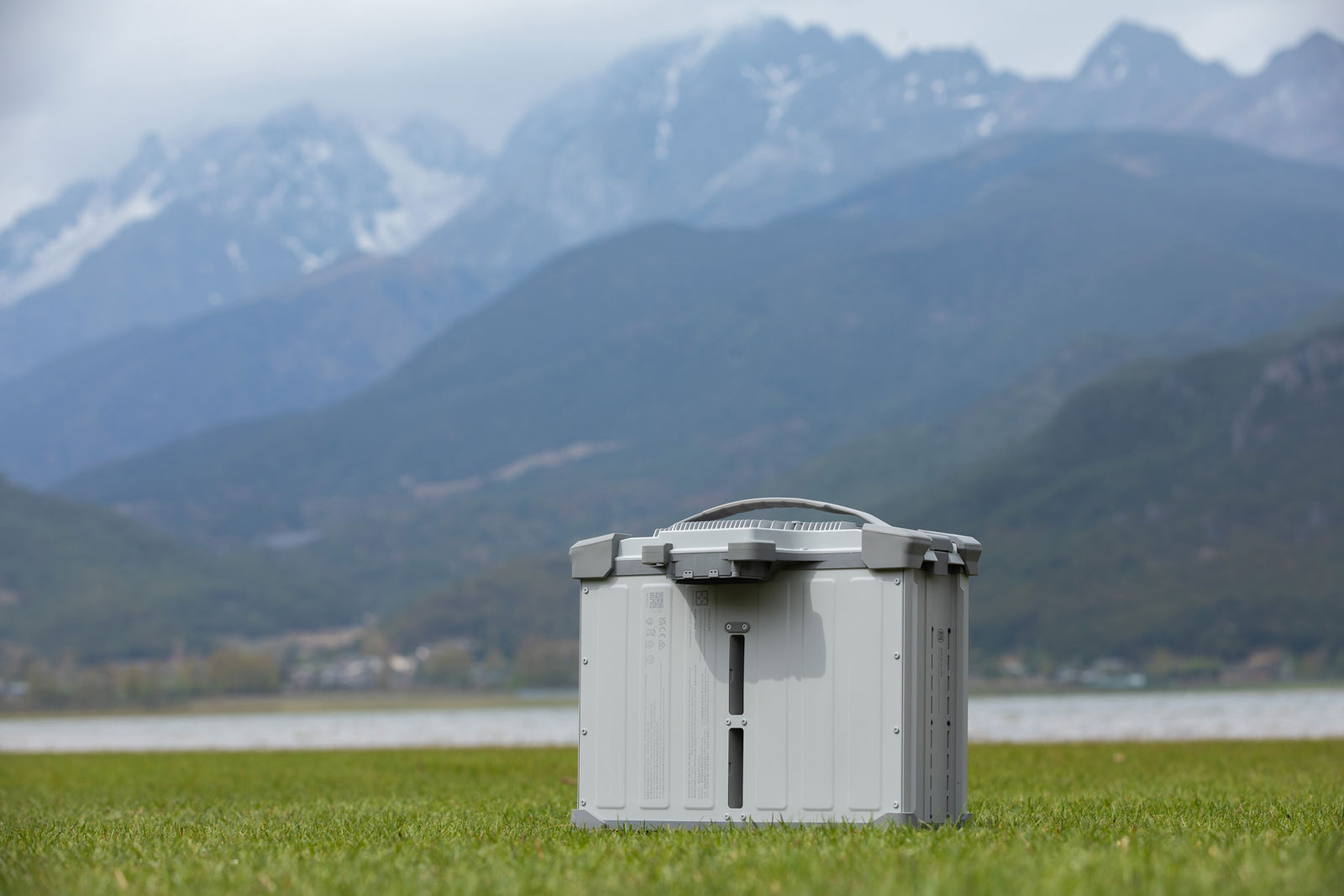

DJI DB2160 Intelligent Flight Battery Detail

Engineered for Maximum Endurance

The DB2160 is built to handle the high discharge rates required during heavy-lift ascents and high-speed transit. Its advanced Li-ion architecture balances massive energy storage with a weight-optimised design.

  • 41,000 mAh (52V) for extended mission flight times.
  • Up to 1,500 rated cycles for long-term ROI.
  • Supports 85 kg payloads in dual-battery configurations.
  • Integrated BMS (Battery Management System) for cell health tracking.

Innovative Triple Air-Channel Cooling

Heat is the primary enemy of battery longevity. The DB2160 features a unique triple-channel cooling structure that allows air to flow through the core of the battery, significantly speeding up the cooling process after high-load flights.

  • Faster transition from “flight” to “charging” mode.
  • Prevents thermal throttling during intensive summer operations.
  • Enhances safety by maintaining stable internal temperatures.
  • Optimised for use with the DJI Battery Cooling Station.

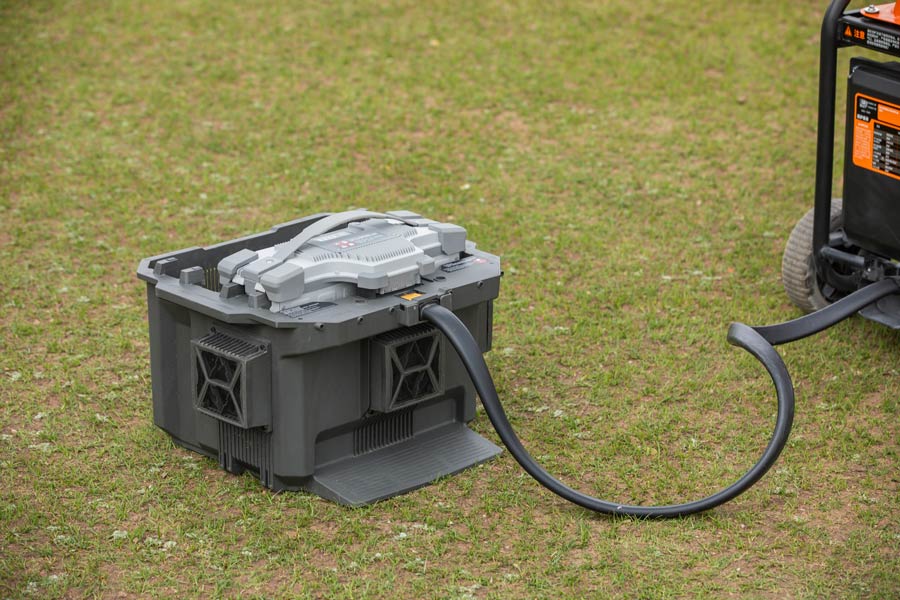

DB2160 Cooling System Design

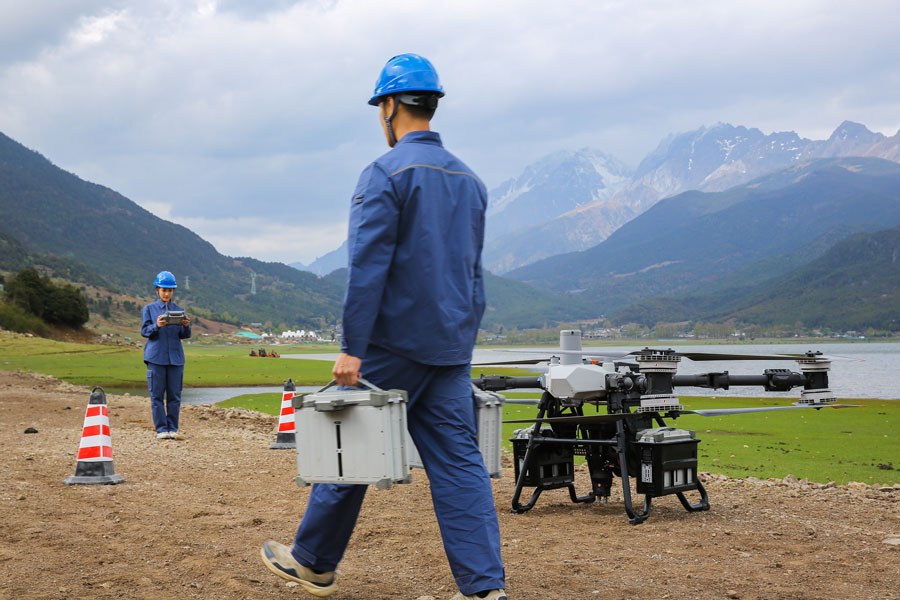

DB2160 Battery Swap Ergonomics

Field-Ready Durability

The battery casing is designed for the rough conditions of industrial sites. From the skin-friendly ergonomic handle to the corrosion-resistant connectors, every detail is built for repeated field handling.

  • IP54-rated protection against dust and moisture.
  • Ergonomic handle for secure carrying and quick swaps.
  • High-power 500A connector for stable energy transfer.
  • Internal potting on circuit boards for vibration resistance.

Ultra-Fast Turnaround Cycles

When paired with the C12000 Intelligent Power Supply or D14000iE Generator, the DB2160 supports extreme charging speeds, allowing you to run a continuous operation with a minimal battery fleet.

  • Charge from 30% to 95% in just 9 minutes.
  • Automatic cell balancing during the charge cycle.
  • Real-time status LEDs for instant charge level checks.
  • Self-discharge function for safe long-term storage.
DB2160 Charging Demonstration
41AH CAPACITY
Maximum Flight Energy
TRIPLE COOLING
Active Heat Dispersion
1500 CYCLES
Long-Term Reliability

DB2160 Battery Specifications

Select a feature above to view technical power data and lifecycle information.

41,000 MAH ENERGY DENSITY

With 41Ah of capacity at a nominal 52V, the DB2160 provides the massive wattage necessary for heavy-lift delivery. For the FlyCart 100, this translates to stable flight profiles even when carrying near-max payloads of 30–40kg in a single-battery setup or up to 80–85kg in a dual-battery configuration.

TRIPLE-AIR-CHANNEL DESIGN

Unlike traditional sealed batteries, the DB2160 uses three separate air channels to pull heat away from the internal cells. This allows the battery to maintain a high discharge rate without overheating and, more importantly, allows it to begin charging almost immediately after landing, saving hours of field downtime.

1,500 CYCLE SMART LIFESPAN

DJI guarantees the DB2160 for up to 1,500 charge cycles or 12 months, whichever comes first. The internal smart board tracks every cycle, monitoring cell balance and voltage history to ensure you are getting the most out of your investment while maintaining a high safety margin for critical missions.

Example Use Cases

Heavy-Lift Logistics

Provide the high-current output necessary to move 40kg+ payloads across rugged terrain without voltage drops.

Intensive Flight Missions

Support back-to-back sorties with rapid 9-minute cooling and charging cycles for maximum daily productivity.

Enterprise Fleet Reliability

Maintain a consistent power supply with a rugged, weather-resistant build designed for the toughest site conditions.

DJI DB2160 Connector and Handle Detail

Building your FlyCart 100 power kit? Drone Sales UK recommends a minimum of 3 batteries and 1 C12000 charger for continuous industrial flight operations.
