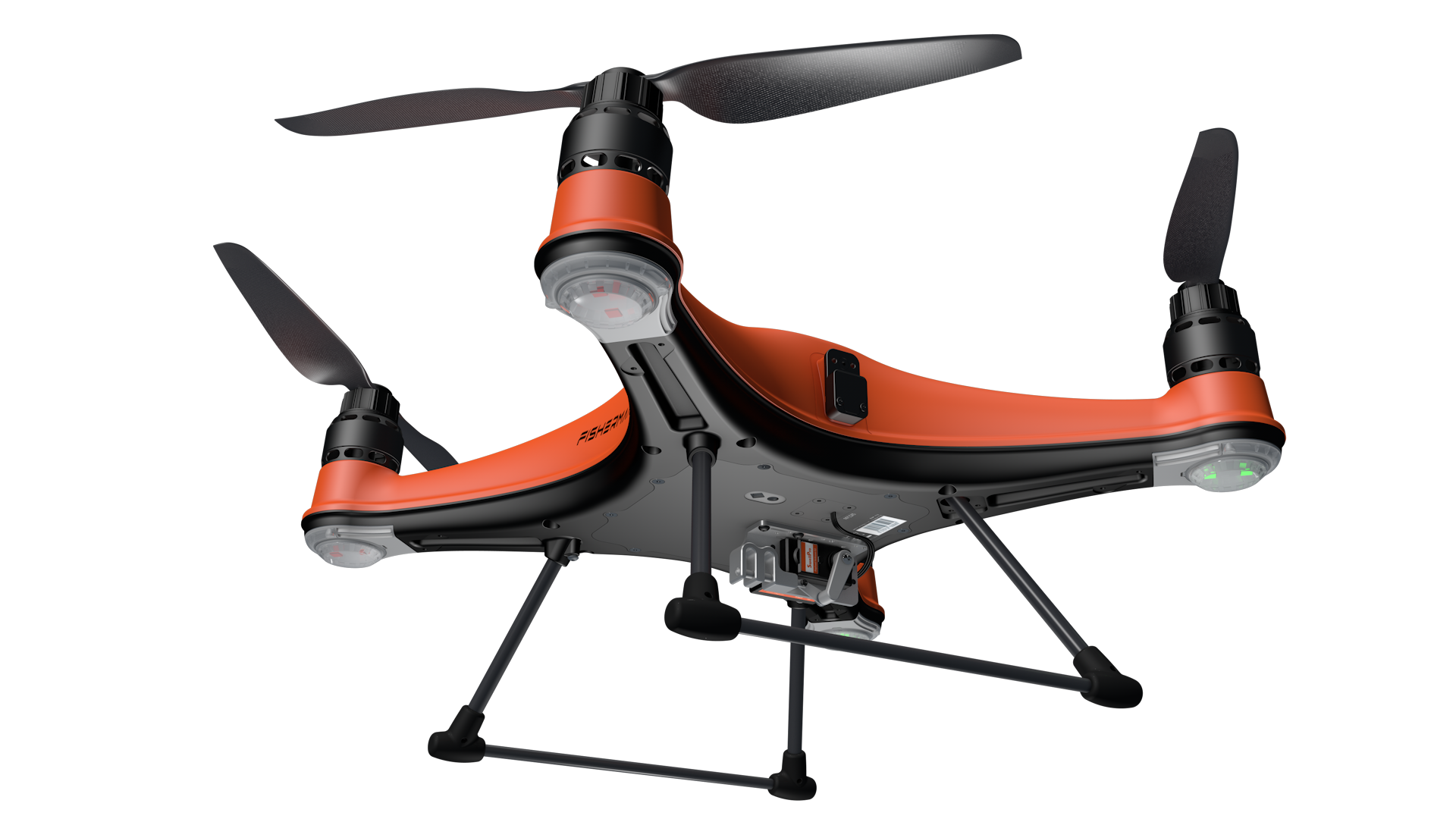

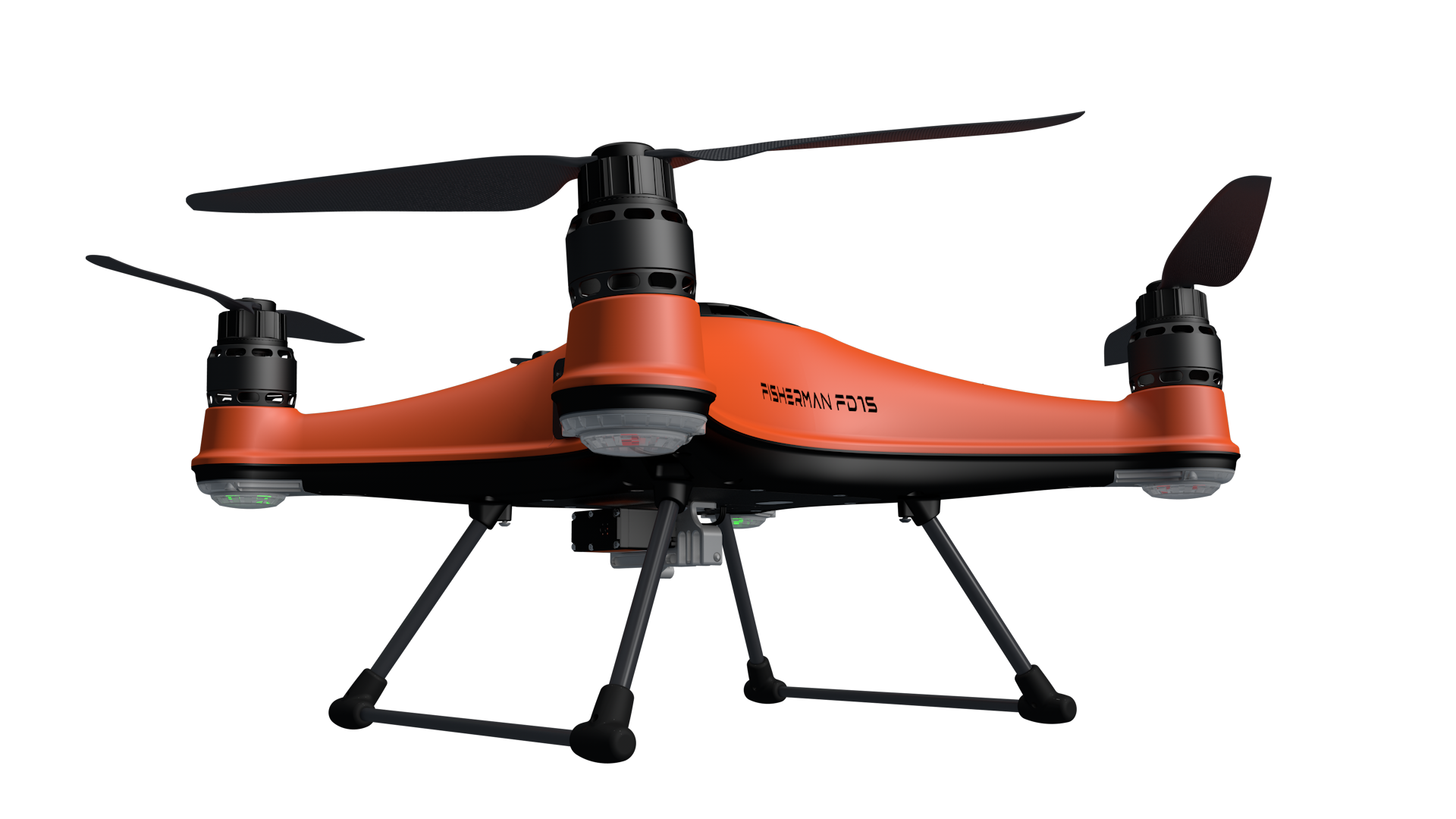

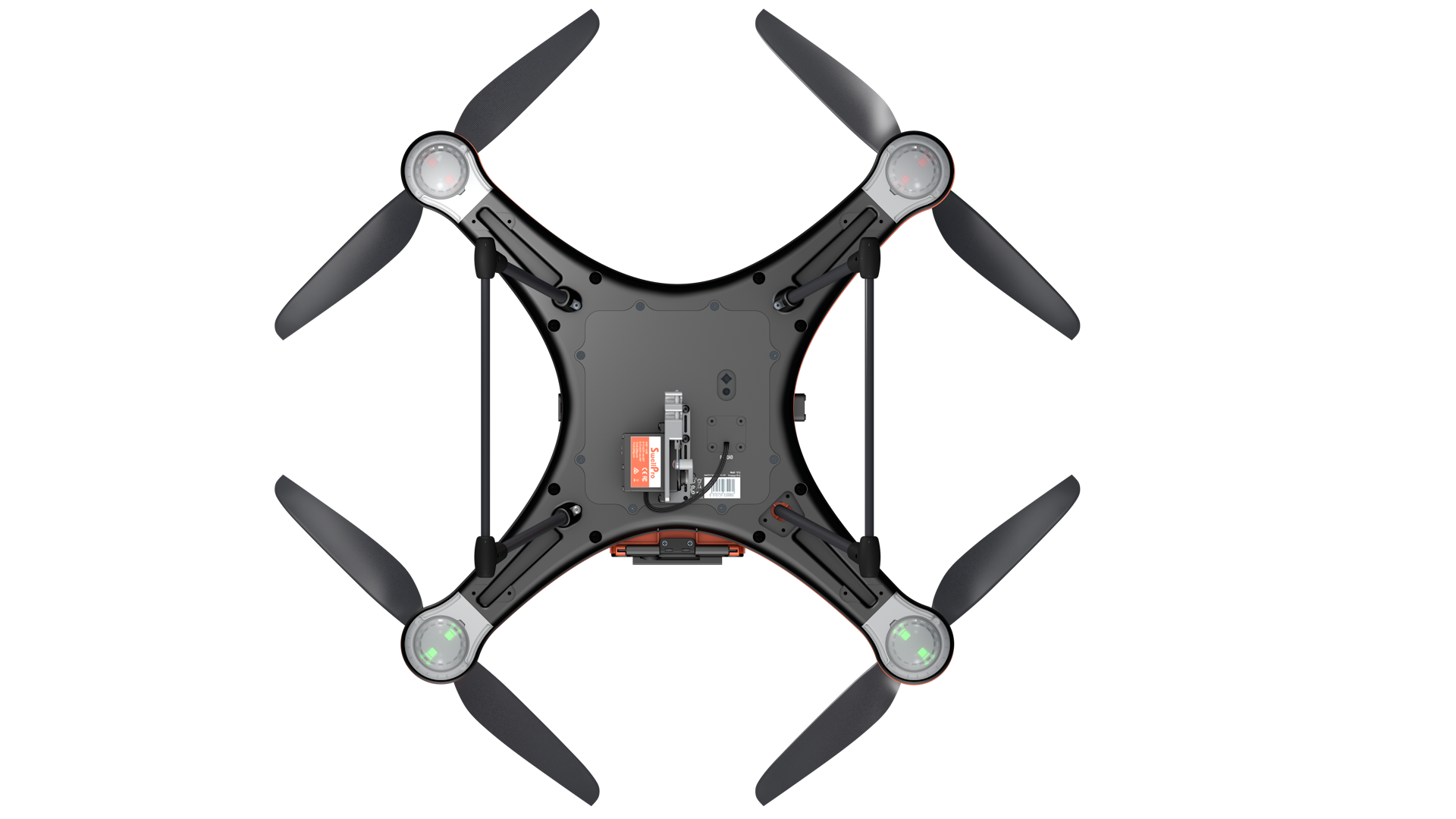

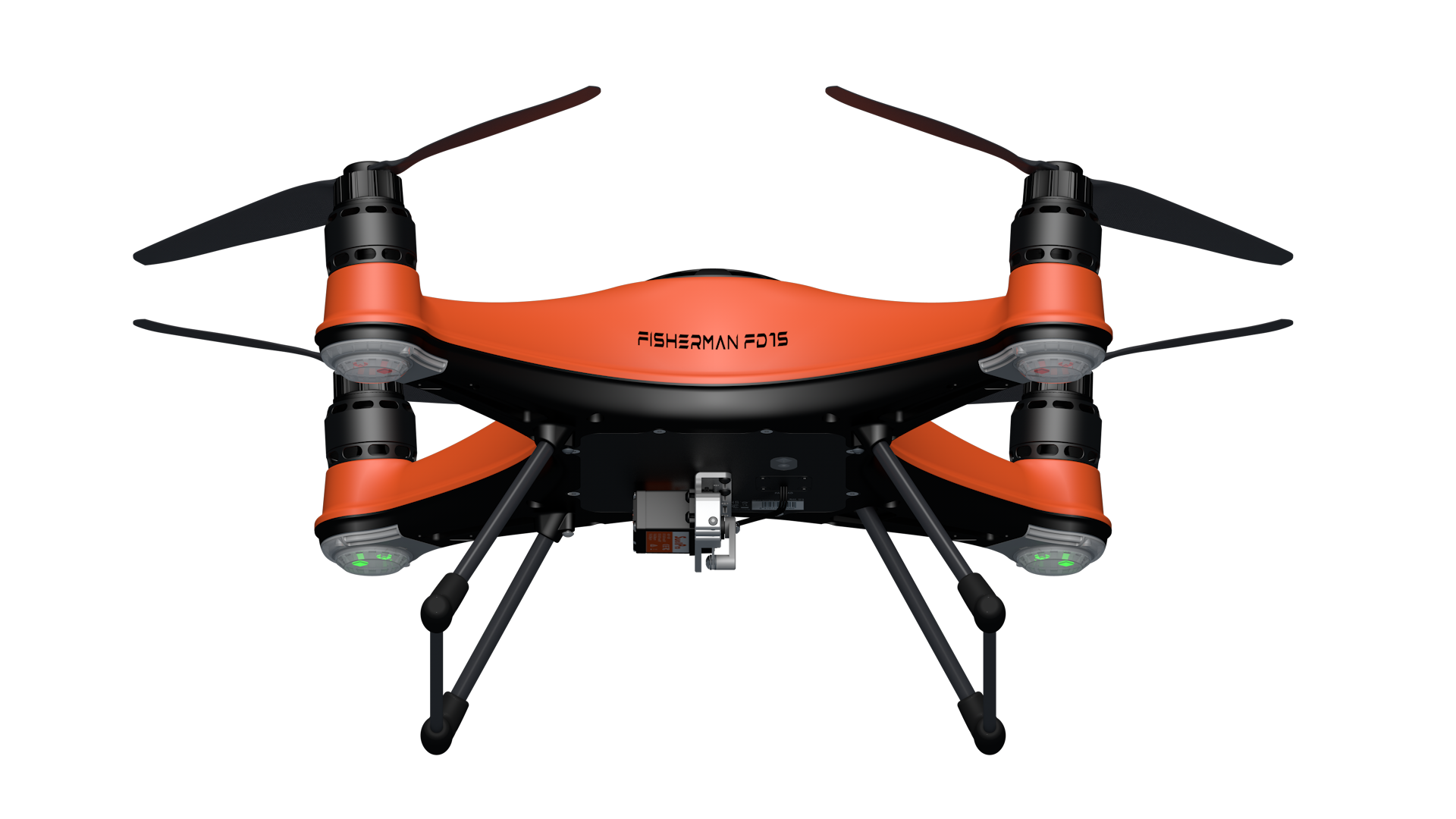

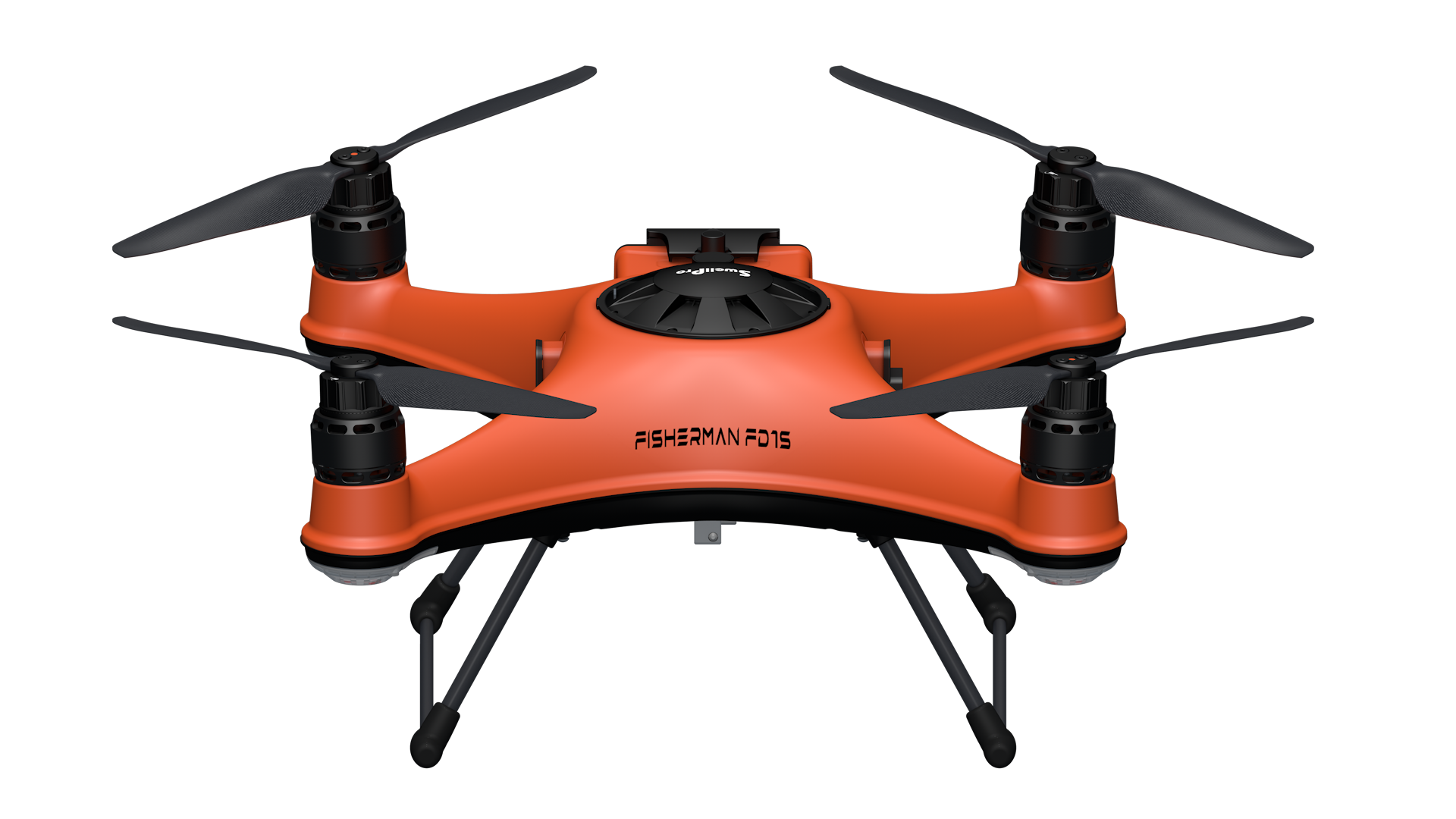

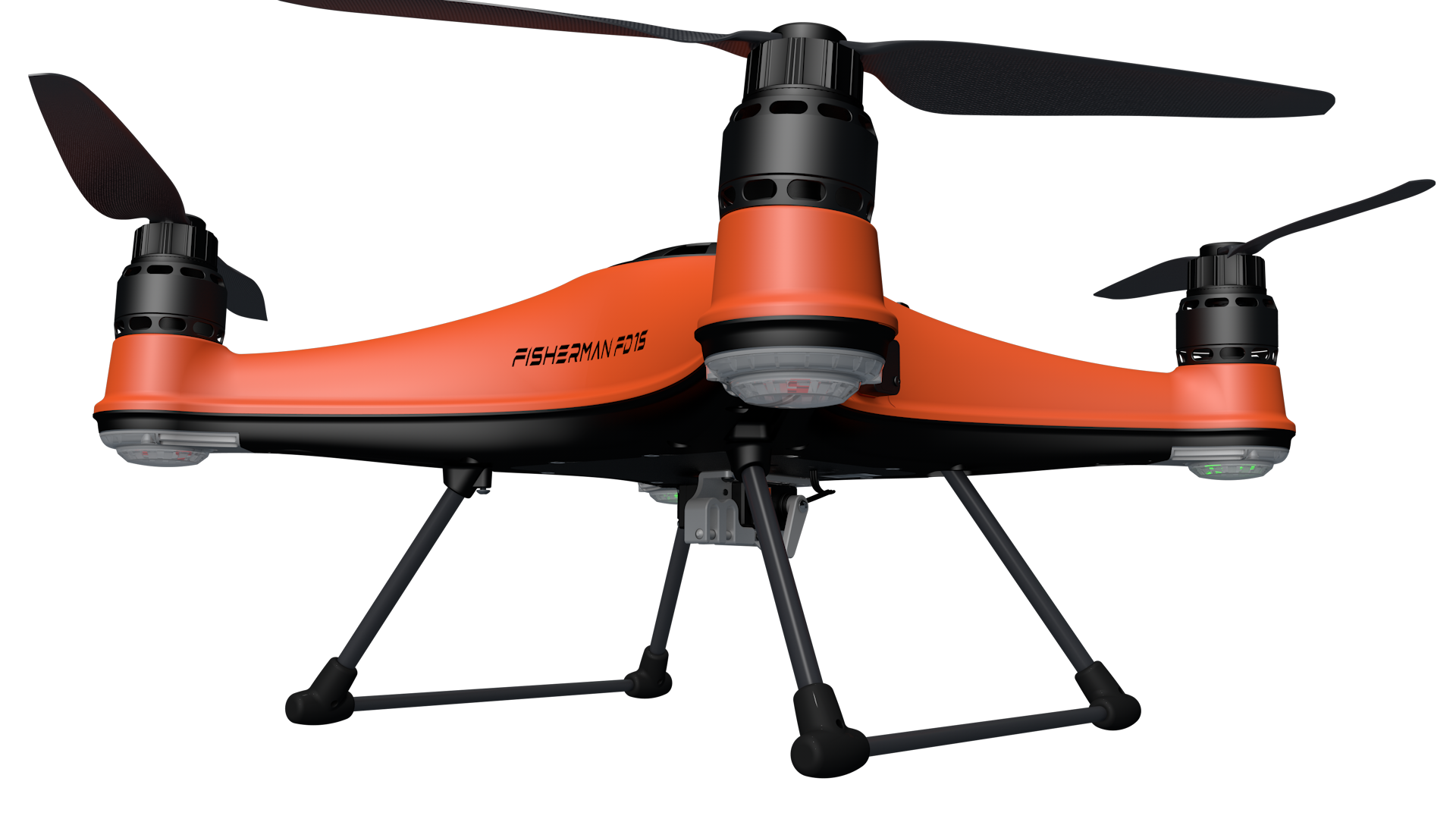

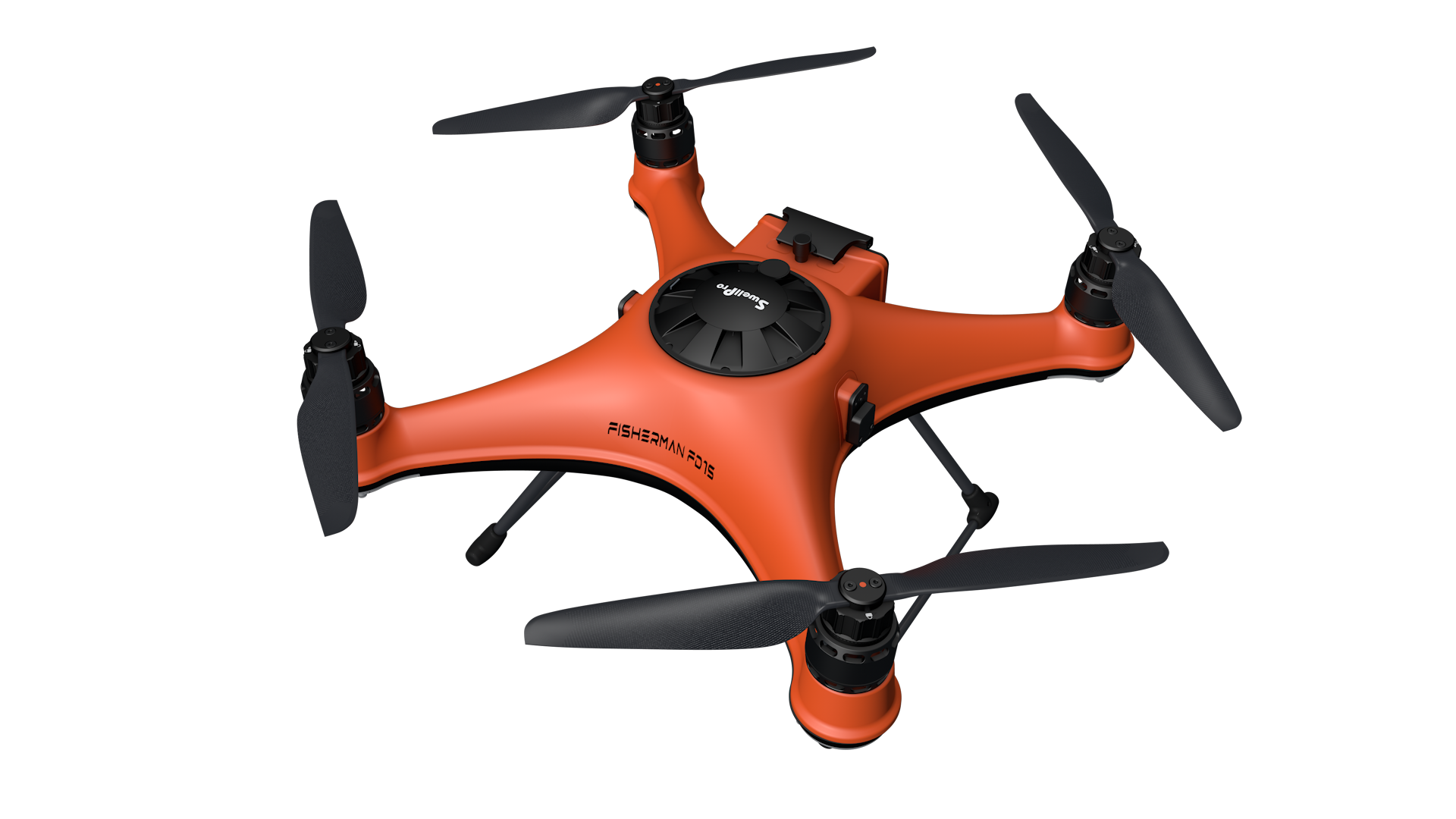

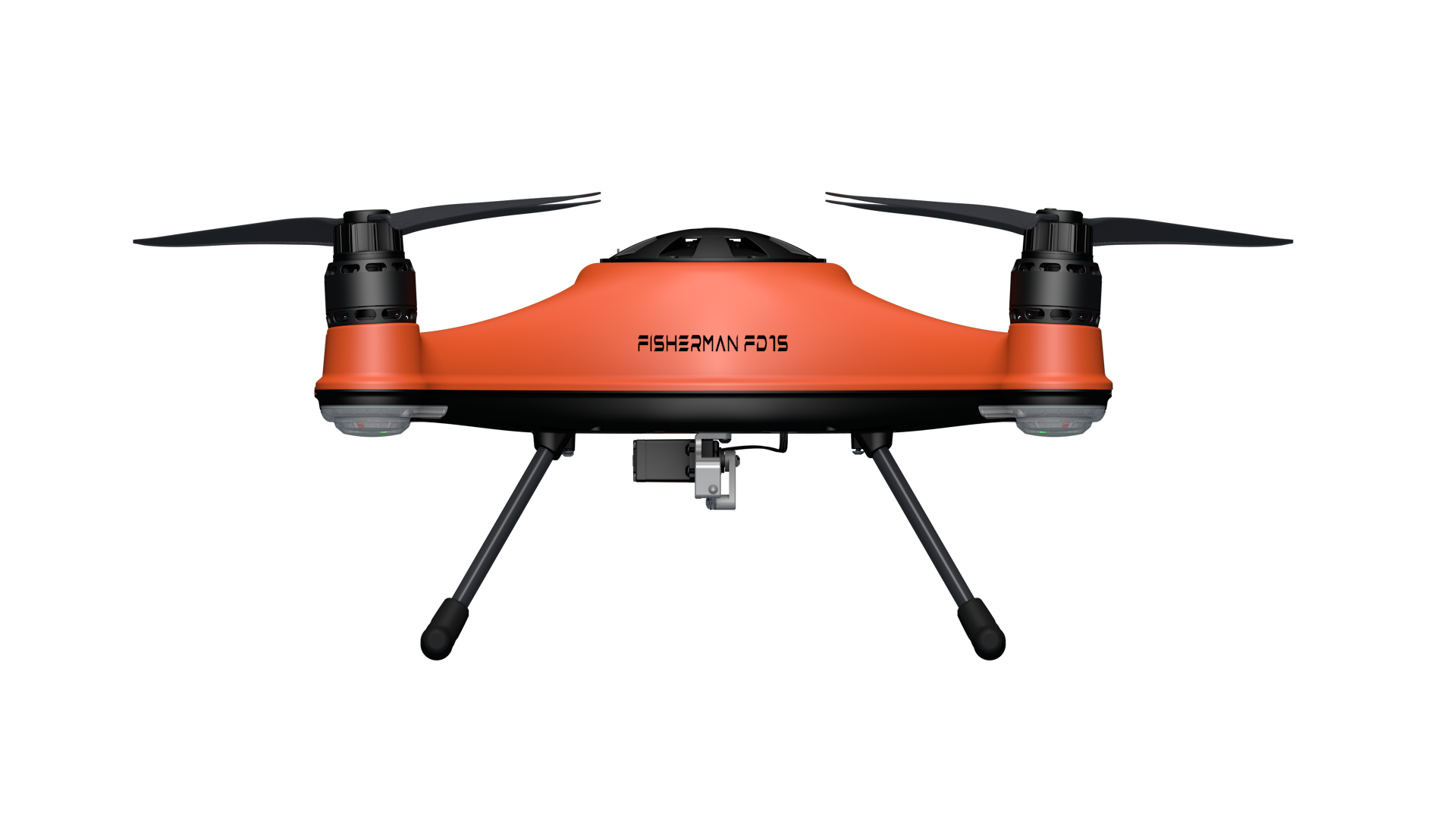

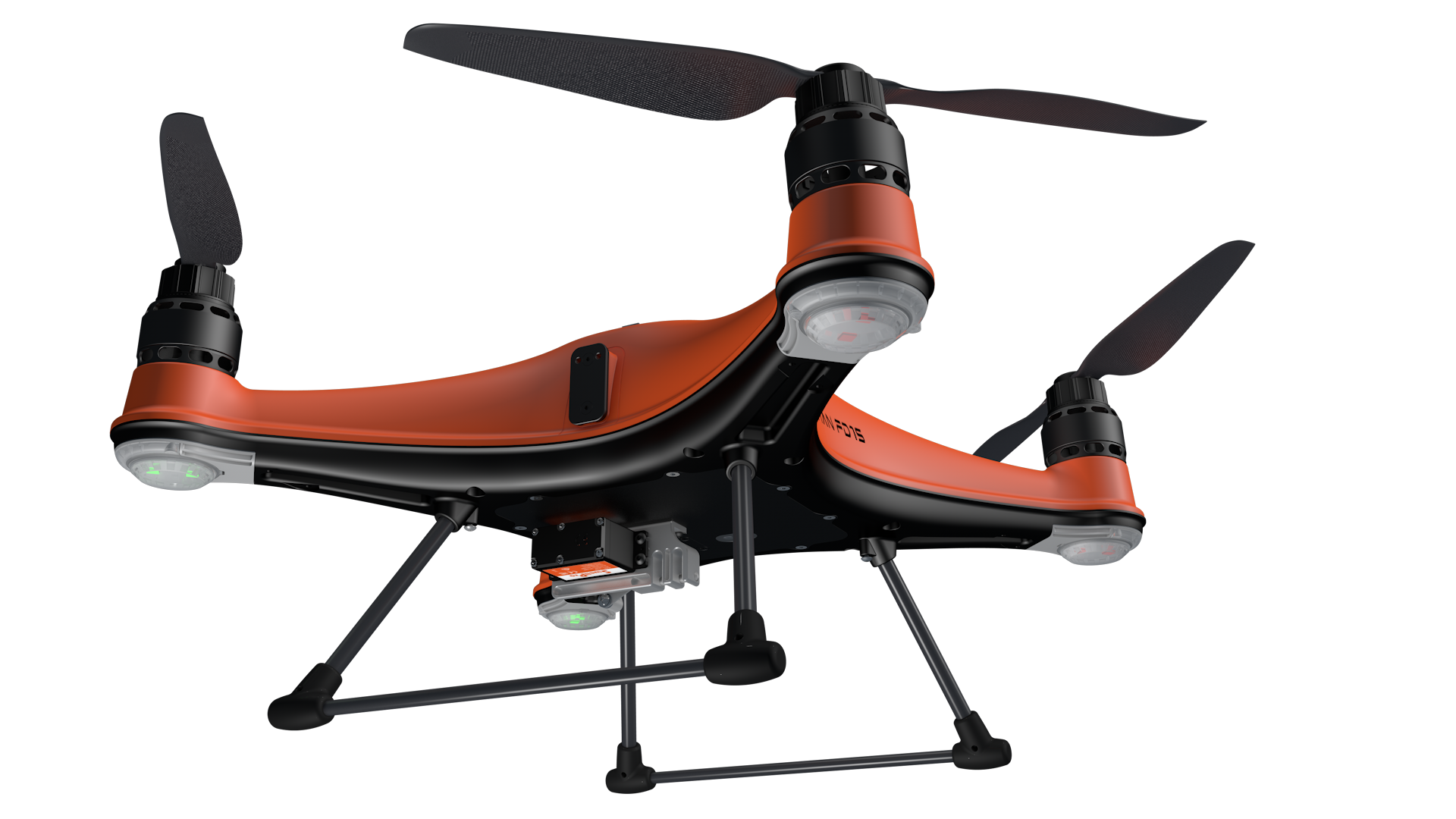

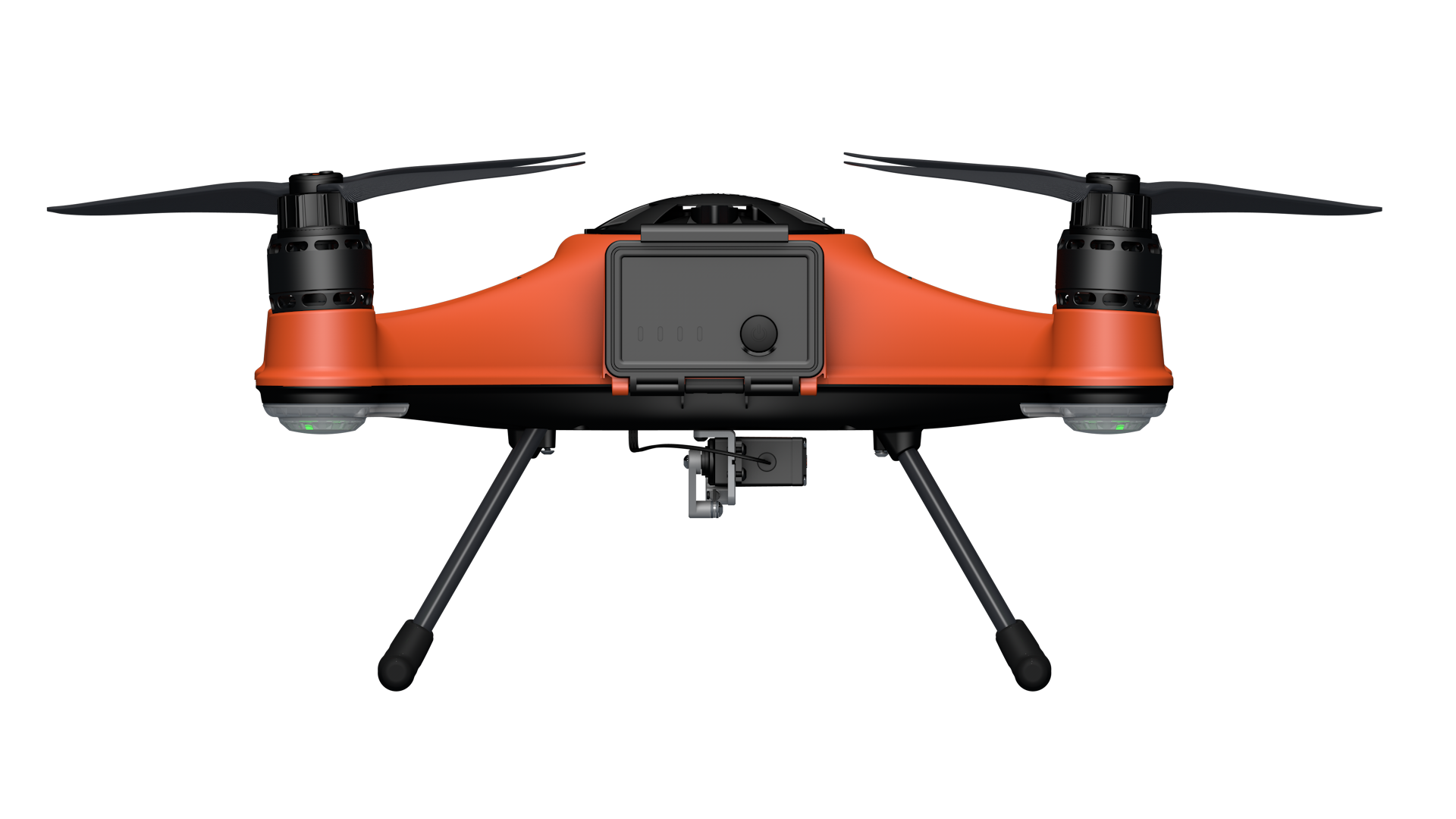

Fisherman Drone FD1-S

£1,500.00

Waterproof bait dropping fishing drone
Compact, lightweight IP67 design
Designed for shore and kayak fishing
Simple, beginner-friendly operation
Built for reliable coastal flights

Request Demo Bulk Pricing

Questions? Call 01305 303101

🇬🇧 UK Drone Specialists

💬 After Sales Support

🛠️ Approved Service & Repair Centre

🔒 Secure Checkout 🏷️ Price Match

Categories: FD1-S, Waterproof Drones

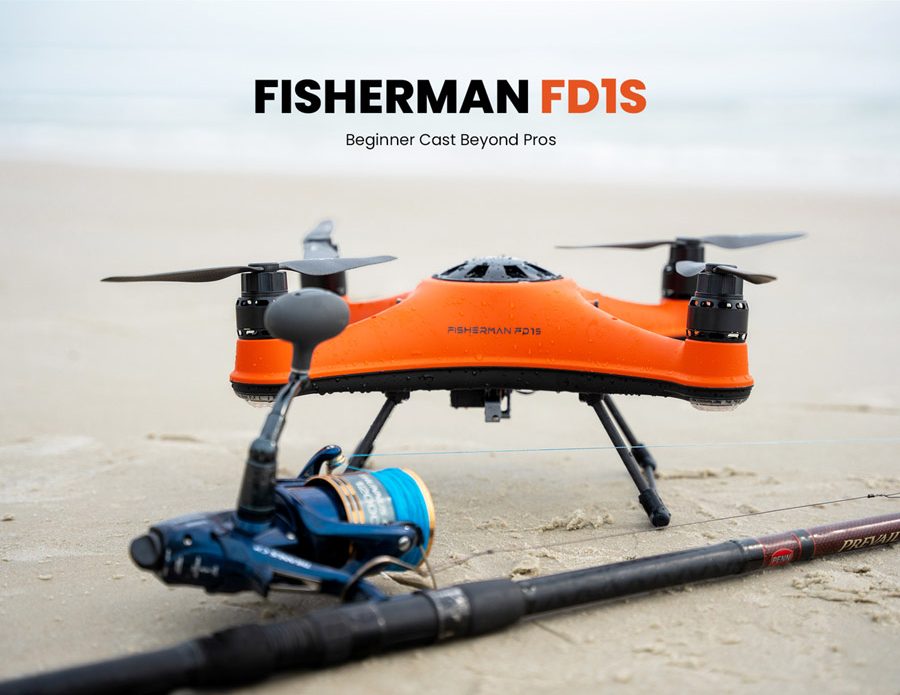

SwellPro Fisherman FD1S — The Ultimate Heavy Bait Casting Drone

The SwellPro Fisherman FD1S is a specialised high-performance fishing drone engineered explicitly to lift massive baits and survive punishing saltwater environments. With an IP67 waterproof rating, anti-corrosion components, and an absolute focus on mechanical dropping power, it allows coastal anglers to cast lines up to 1.3 km out into deep blue water with total confidence.

IP67 Fully Waterproof Core
2.2KG Bait Lift Capacity
1.3 KM Casting Range
Level 7 Wind Resistance
PowerFlip™ Marine Righting
Dual Bait Release Hooks
Marine Anti-Corrosion Motors
Up to 26 Mins Flight Time

Core Features for Offshore & Shore Anglers

Marine Sealed Corrosion Protection

Crafted from a buoyant, marine-grade ABS hull with rubberised seals. All interior circuitry is layered with a protective anti-corrosion shield to block humid salt spray.

PowerFlip™ Safety Recovery

In the event that rough ocean waves knock the drone upside down on the water’s surface, a single flick of a switch forces the aircraft to flip itself upright for an immediate water take-off.

Level 7 Wind Defying Matrix

Driven by high-torque propulsion motors and SwellPro’s customised “S6” flight controller to maintain rock-solid hovering over rolling shore currents in gusts up to 40mph.

Massive Torque Lifting Capacity

Powered by high-capacity 6S LiHV battery cells, allowing you to lift up to 2.2 kg of specialised live bait, heavy lead sinkers, or comprehensive multi-hook longline rigs.

SwellPro Comparison: FD1s vs FD1+ vs FD2 (Fisherman Max)

Understanding where the FD1S sits in the SwellPro family is crucial to picking the right model for your fishing setup. Here is how it directly compares to its predecessor and its heavy-duty sibling:

Feature	SwellPro FD1+ (Superseded)	SwellPro FD1S (Current Model)	SwellPro FD2 (Fisherman Max)
Core Technology	Standard LiPo Battery / Basic ESCs	New Smart Battery System (BMS) & Enhanced Stability	Heavy-Duty Foldable Frame & Integrated App Ecosystem
Max Bait Capacity	2.2 KG (4.8 lbs)	2.2 KG (4.8 lbs)	3.2 KG (7.0 lbs)
Camera Capabilities	No Camera (Bait drop focus only)	Optional Fixed FPV Camera Kit Upgrades	Integrated 4K Stabilised Video & Tiltable Axis
Flight Distance Range	1.3 KM casting radius	1.3 KM casting radius	1.5 KM to 1.6 KM range radius
Remote Controller	Standard non-splashproof controller	Splash-resistant & sand-proof design	Built-in color video display screen

Summary Verdict: The FD1S replaces the legacy FD1+ platform completely, adding crucial electronic reliability, smoother wind handling, and a much safer Smart Battery Management System (BMS). If you require a pure, cost-effective workhorse strictly for dropping bait, the FD1S is your choice. However, if you are target-hunting massive predators like sharks or need a 4K live view map to scout underwater reefs, you should upgrade to the heavy-lifting FD2 (Fisherman Max).

Operational Deployment Scenarios

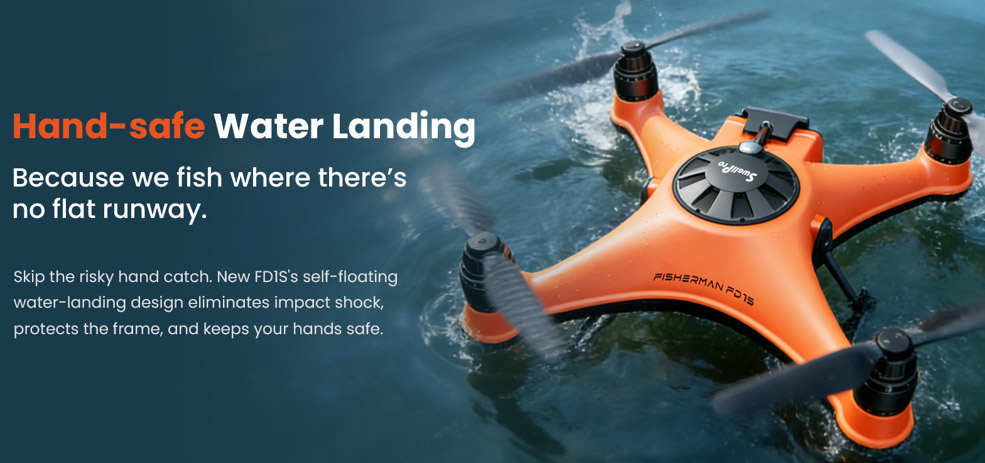

Water Landing, Safety & Floating Take-Off

Land the aircraft safely directly onto ocean waves if tension relief or quick target breaks are needed. Internal pressure valves maintain balance and total buoyancy indefinitely.

Autonomous GPS Return to Beach

Smart Failsafe GPS Return-to-Home

Features an intelligent 9th-generation GPS alignment layer. If your transmission drops or the battery reaches a low threshold, the drone autonomously climbs and flies directly back to the beach.

Compatible Payload Release Hooks & Upgrades

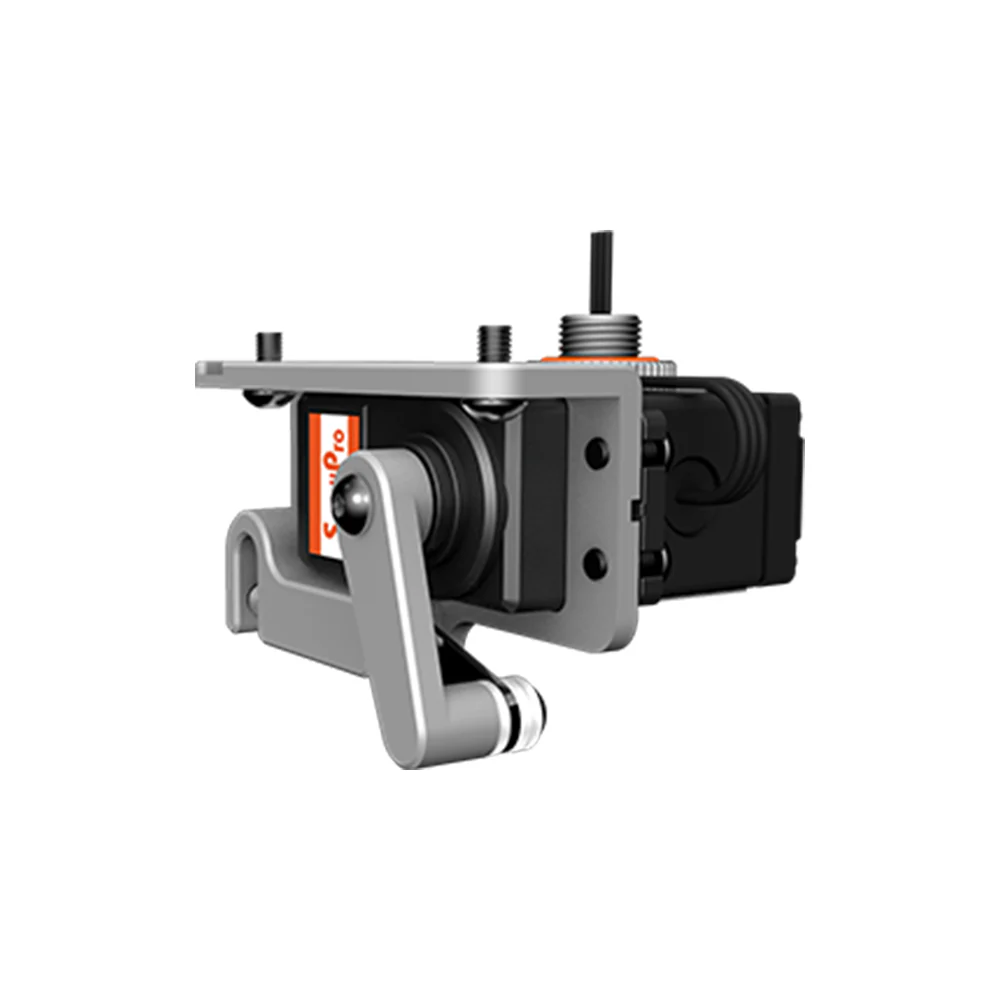

PL1-F Mechanical Hook

Simple, high-strength mechanical bait drop system operated via your standard controller toggle. Streamlined design for pure weight optimisation.

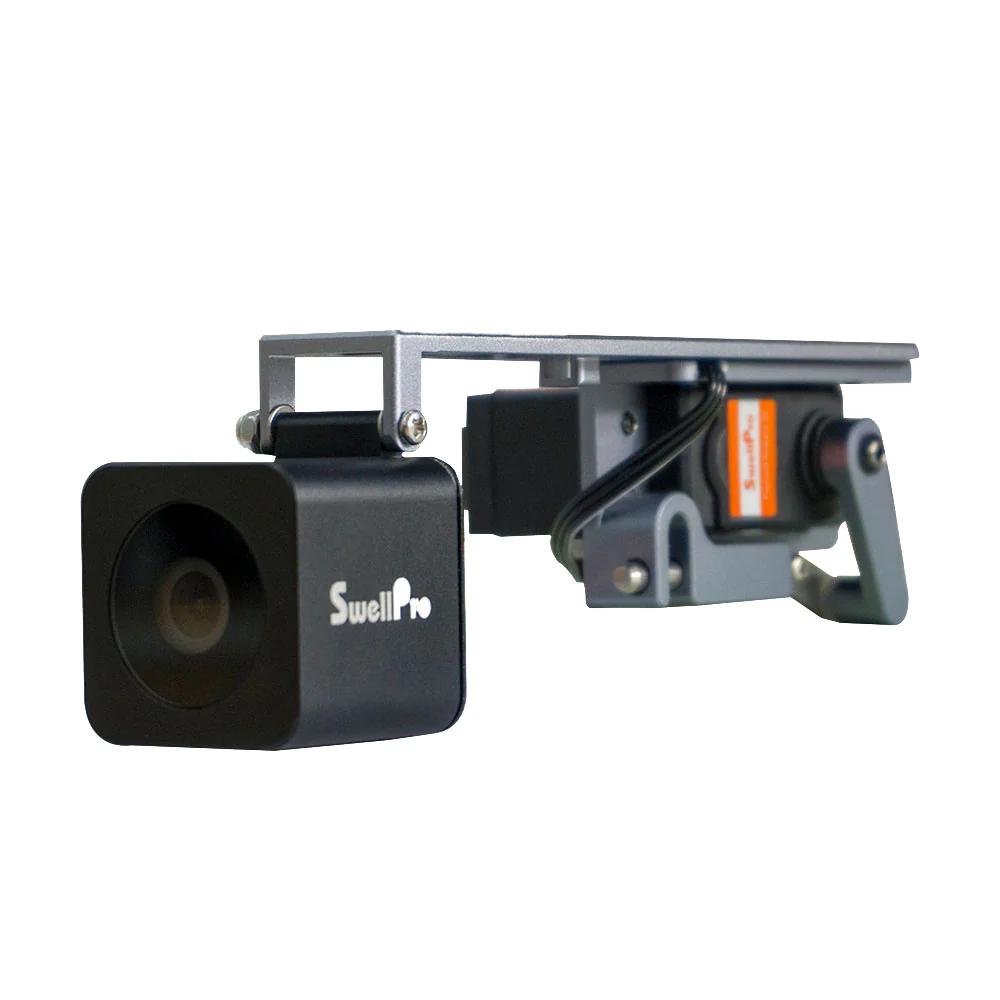

PL2-F FPV Camera Kit

Combines a rigid, waterproof fixed FPV lens with the mechanical drop hook to stream real-time horizon video directly back to a monitor.

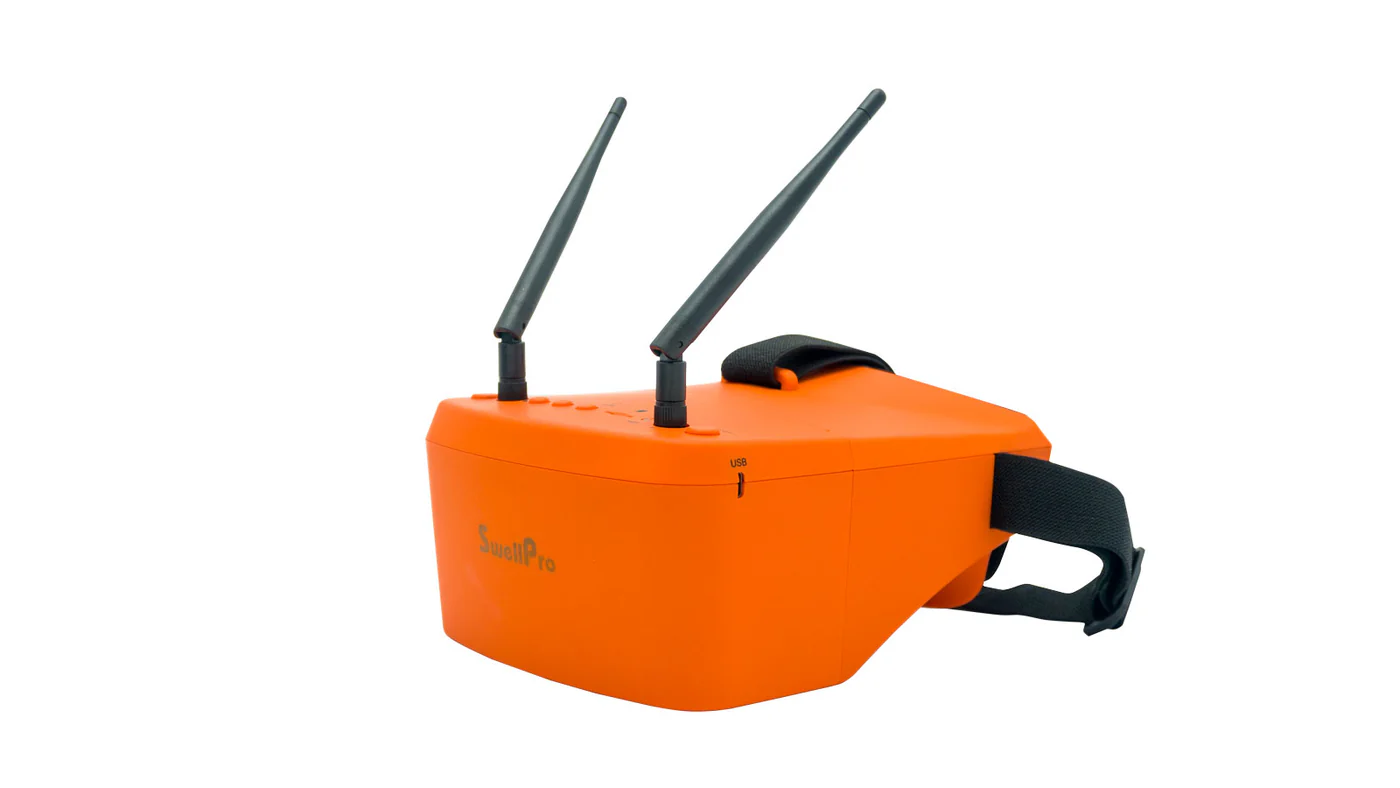

GL1 FPV Video Goggles

Immersive high-definition live field display headset that communicates directly with the optional camera arrays to locate target structures.

FD1S Remote Controller: Built for Severe Shoreline Conditions

Streamlined Operational Interface

Clean layout focused purely on flight telemetry and bait casting controls
Instant mechanical release toggle responsive even with gloved hands
High-contrast status window display for critical real-time battery readouts
Ergonomic thumbsticks designed for steady flight in offshore wind shear

Ergonomic Outdoor Comfort

Lightweight profile with optimised non-slip grip structures
Perfect layout legibility under glaring direct beach sunlight

Advanced High-Gain 5.8GHz Link

Bespoke long-range antenna array minimising interference over open water
Maintains continuous high-frequency connection up to 1.3 km away
Direct, real-time command loop for lightning-fast payload deployment

Weather-Sealed Exterior

Splash-resistant outer layout to guard against salt mist and ocean air
Durable physical architecture built to withstand sand, dirt, and drop impacts

Technical Specifications

Click to view Comprehensive Technical Datasheet

🛩️ Aircraft Platform Metrics
Waterproof Rating	IP67 Floating Design Layout
Gross Frame Weight	2050g (with battery and propellers attached)
Axis Wheelbase Diameter	450 mm structural footprint
Max Horizontal Velocity	22 m/s (Sport), 10 m/s (Normal Mode)
Max Sustained Wind Limit	Up to 64 km/h \| 40 mph \| 35 knots (Level 7 Offshore Gales)
Max Flight Duration Limit	Up to 26 mins (zero payload under zero crosswinds)
Max Line of Sight Distance	1.3 km tracking casting radius
Max Bait Structural Load	2200 g (4.8 lbs) maximum payload limit
Brushless Propulsion Motors	High-torque outrunner systems with specialized anti-corrosion coating
GNSS Satellite Constellations	9th Generation GPS + Galileo tracking frameworks
Working Temperatures	-10°C to 50°C operational limit

🎮 Ground Controller Metrics
Radio Link Frequencies	5745–5825 MHz high gain link
Telemetry Interface Screen	High-contrast integrated LCD panel for flight information metrics
Continuous Working Life	Up to 5 hours operational threshold
Atmospheric Protection	Splash-resistant sealed chassis shell

🔋 Intelligent Power Battery Metrics
Nominal System Voltages	22.8V
Total Energy Densities	6500mAh
Battery Chemistry Form	High-Voltage 6S LiHV Lithium Battery Pack
Net Battery Weight	740g

Why Buy from Drone Sales UK?

Official Authorised UK SwellPro Distribution Partner
Comprehensive UK hardware warranty validation and post-purchase engineering care
Fast, fully trackable and completely insured UK mainland delivery
Dedicated customer support staff, setup assistance, and marine aviation regulatory guidance
Best value pricing guarantees for all active UK anglers and angling organisations

What is the maximum bait payload capacity of the Fisherman FD1S?›

The Fisherman FD1S is equipped with a high-torque propulsion configuration that allows it to safely lift and carry a maximum bait payload of 2.0 kg (4.4 lbs). This delivers more than enough lifting muscle to drop heavy lead weights, large live baits, or multi-hook bottom rigs way past the breaking surf.

Is the FD1S completely waterproof and able to land on saltwater?›

Yes. The airframe features a fully sealed IP67 marine-grade hull constructed from impact-resistant ABS. It is engineered to withstand heavy sea spray, torrential rain, and can float safely on the water surface. The brushless motors and internal circuit boards are treated with anti-corrosive coatings to withstand harsh marine environments.

What type of camera and video transmission setup does the FD1S use?›

The platform features a baseline, low-latency PL1-F or PL2-F FPV camera system. It beams a real-time analogue video feed directly back to the high-brightness FPV monitor mounted on your remote control. This gives you a clear line-of-sight view to spot sandbanks, deep holes, and fish activity without requiring a smartphone app.

How does the mechanical line release mechanism function?›

The FD1S utilizes a reliable remote-activated mechanical tension release system. Once you navigate the drone out to your targeted casting zone, a simple flip of a dedicated toggle switch on the controller instantly opens the release pin, dropping your fishing line exactly where the fish are feeding.

What is the real-world flight window when carrying fishing rigs?›

While the high-capacity 4S lipo battery provides up to 26 minutes of unweighted flight time, pulling a thick monofilament or braided line through crosswinds creates immense resistance. On typical UK beaches, a single battery safely yields roughly 4 to 5 full-distance drops out to 400 metres before triggering low-voltage warnings.

What safety failsafes protect the drone from dropping into the sea?›

The FD1S relies on dual GPS/GLONASS satellite positioning layers. If the remote signal severs or the battery voltage drops to a critical level, the drone automatically activates its Return-to-Home (RTH) fail-safe, ascending to a safe altitude and flying back to land at its exact takeoff point on the beach.

Can Drone Sales UK supply spare batteries and replacement propellers for the FD1S?›

Yes. Drone Sales UK carries a full range of official SwellPro accessories and structural spares. We stock high-capacity replacement batteries, carbon-fibre quick-release propellers, dual-charging hubs, and replacement seal rings to ensure your beach fishing setups stay fully operational throughout the season.

SwellPro Fisherman FD1S Aircraft · Simplified 6-Channel Analog Controller · 6S LiHV Intelligent Flight Battery (99.9 Wh) · Sine-Wave ESC Propulsion · IP67 Marine-Grade ABS Airframe · GPS 9.0 Positioning (Multi-GNSS) · 2.2 kg (4.8 lbs) Dual Mechanical Bait Release · Calibration-Free S6 Flight Controller

Waterproof Enterprise Drone & Dual Payload Release Specifications

An industrial-grade, all-weather aerial platform engineered for demanding maritime, search and rescue, and payload delivery operations. Combining an IP67-rated waterproof airframe, a massive 2200g carrying capacity with dual payload release mechanics, and a heavy-duty smart power layout, this system ensures reliable flight deployment under severe environmental stress.

IP67 Waterproof Airframe & Release
2200 g Max Payload Capacity
18 m/s Extreme Wind Resistance
29 min Maximum Hover Time
GPS + Galileo + BeiDou Tri-GNSS
99.9 Wh Travel-Safe Intelligent 6S Battery

Aircraft Airframe & Flight Performance Dynamic Metrics

Structural Mass Profiles: Net structural weight of the airframe stands at 1391 grams excluding power units. Fully loaded takeoff weight reaches 2365 grams with the intelligent battery array and high-efficiency propellers attached.
Physical Footprint Dimensions: Highly streamlined frame geometry measures 372×372×202 mm when stripped of propulsion elements, expanding to an active footprint of 628×628×218 mm with propellers deployed.
Environmental Ingress Hardening: Fully certified with an IP67 waterproof protection rating across the main fuselage hull, enabling reliable deployment during heavy rain storms, coastal operations, and accidental marine submersion.
Transit Velocity Parameters: Caps maximum vertical ascent and descent speeds to a stable 3 m/s layer. Linear horizontal velocity cuts through standard pathways at 10 m/s in Normal mode, unlocking a blistering 18 m/s speed under Sport mode (evaluated without payload attached).
Flight Limits & Guidance Bounds: Max structural tilt angle tracks up to 30°. Firmware caps the maximum flight altitude from the takeoff point to a 120-meter default ceiling. Maximum linear flight distance and uninhibited image transmission paths extend out to 1300 meters.
Operational Wind & Hover Profiles: Defies harsh weather environments with a robust wind resistance threshold rated up to 18 m/s. Maintains a continuous, zero-load hovering time of up to 29 minutes in calm air. Hovering spatial accuracy tracks within a tight ±0.5-meter window.
Tri-Satellite Spatial Navigation: Locks high-precision coordinate data streams concurrently utilizing GPS, Galileo, and BeiDou tracking arrays. Operational temperature boundaries span cleanly from -10° to 40° C.

Integrated IP67 Dual Payload Release Mechanical Core

Payload Carrying Threshold: Heavy-duty dropping mechanism rated to securely support, transport, and release payloads weighing up to a massive 2200 grams (4.8 lbs) maximum capacity.
Environmental Hardening: Engineered to mirror the main aircraft with a complete IP67 waterproof validation rating, protecting electric internal actuator gears from corrosive saltwater and moisture ingress during beach or open-ocean drops.
Mechanical Form Factor: Lightweight, compact release module measuring 75×50×37.5 mm with a nominal physical weight footprint of just 100 grams to preserve maximum aircraft battery life.

Remote Controller & RF Telemetry Layer

Physical Chassis Parameters: Ergonomic structural housing measuring 174×189×190 mm. Device net weight clocks in at 378 grams when stripped of its logic cells. Highly critical: The controller frame features a Non-waterproof product specification profile and must be shielded from direct moisture contact.
Radio Frequency Architecture: Operates over a specialized 2.402 to 2.478 GHz wireless frequency band running a focused 500 KHz operational channel bandwidth loop.
Modulation & Transmission Power: Employs ultra-stable GFSK signal modulation mechanics. Receiver hardware sensitivity drops down to a quiet -92 dB threshold while maintaining total structural transmitter power outputs below 20 dB.
Control Layout & Logic Cells: Maps aircraft flight paths and release mechanisms across 6 operational discrete channels. Power management loops utilize a 6V framework driven by 4 standard 1.5V AA cells.

Intelligent Battery Array (IB4+) & Rapid Charging Station

Intelligent Battery Chemistry: Packs a native 22.2V high-density Intelligent 6S lithium-based architecture. Nominal capacity is rated at 4500 mAh, totaling 99.9 Watt-hours to remain safely within standard airline carry-on travel limits.
Physical Mass & Footprint: Specialized high-impact structural block housing measuring 154.8×80×49.5 mm and scaling onto weight grids at exactly 820 grams.
Thermal Operating Envelopes: High-efficiency power discharge paths remain operational from -10° to 60° C. Onboard protection circuits restrict smart charging cycles strictly to windows between 0° and 45° C. Safe long-term storage temperature limits are bound between 0° and 25° C.
High-Power Fast Charger Station: Accepts a standard 220V grid supply at a 50/60Hz frequency configuration. Translates input paths to a 22.2V direct output supply delivering up to a 150W maximum output power limit.
Charging Speed Specs: Drives an aggressive maximum charging current limit of up to 7.7A, pumping the empty IB4+ cell architecture back to a 100% full capacity state within roughly 100 minutes. Charger hardware footprint measures 143×100×60 mm with operating and storage temperature bounds matched at 0° to 60° C.

* Maximum flight range and wireless video transmission boundaries are evaluated in open, clean test environments completely devoid of electromagnetic and physical structural barriers. These metrics represent optimal theoretical maximums rather than unyielding field constraints; use them solely as a clear technical reference index during active mission planning phases.
