Waterproof Drone Payload Release Mechanism With HD Camera (PL2) For SD3+

£178.48

Out of stock

Product Description

With the PL2, people can use SplashDrone 3+ to do airdrop work, like dropping fishing bait when doing beach fishing, or dropping Life Buoy for Search & Rescue.

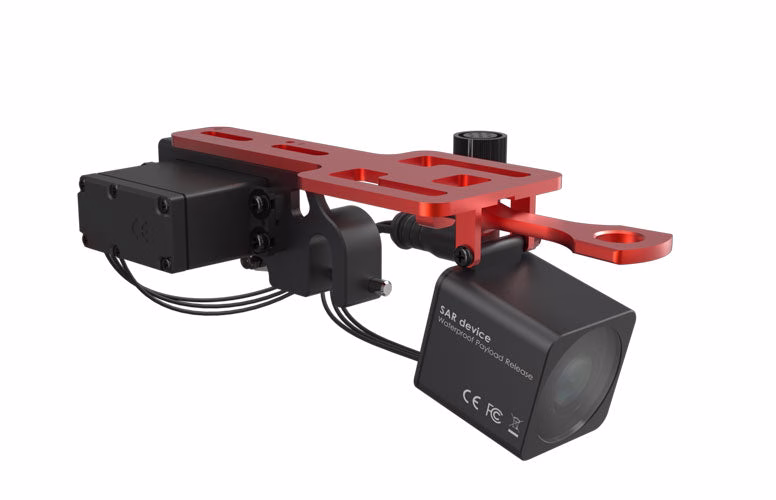

LONG RANGE RELEASE MECHANISM

PL2 release mechanism is capable of carrying items including long fishing lines and casting baits to any target location, in the surf or in unreachable waters. (The max flight range of Splash Drone 3+ is up to 1.6 km+.)

HIGH PAYLOAD CAPACITY

PL2 is manufactured from high precision CNC aluminium and stainless steel. The max payload capacity is 1kg. It is capable of carrying more than 10 hooks and baits in one delivery. It can also be used to carry a life preserver or life jacket for surf rescue.

PRECISE REMOTE RELEASE

Instead of releasing baits unintentionally like the third-party-made bait dropper, PL2 enables precise surfcasting with a switch on the remote controller of Splash Drone over a long range.

FISH FINDER CAMERA

The payload release is integrated with a waterproof HD camera, thereby eliminating the requirement of a second camera. The camera can be tilted within a 90° range. Real time video from the camera can be viewed using an FPV monitor up to distances in excess of one kilometre. The camera is also able to capture a clear view below the water surface, thereby helping you to easily find the optimum fishing spot.

WATERPROOF

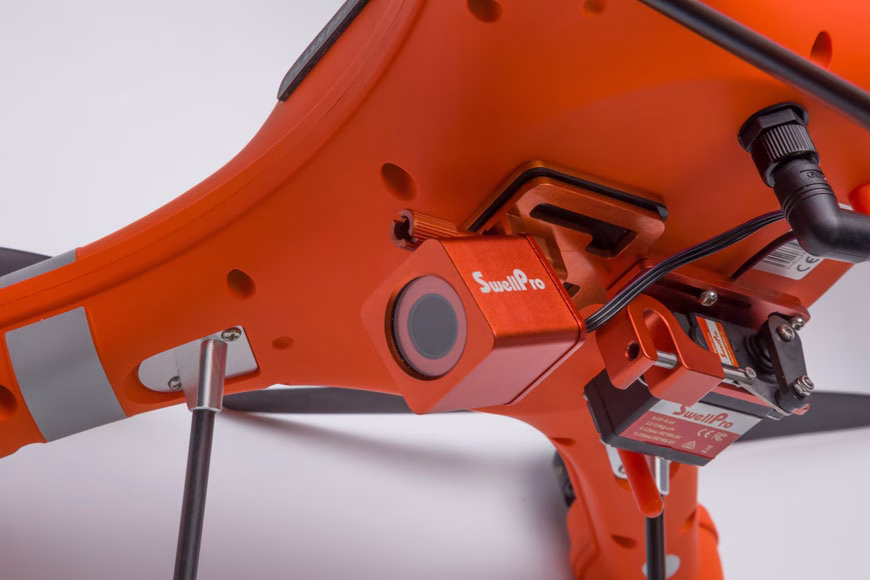

The whole mechanism is as waterproof and salt water resistant as the Splash drone 3+. The quick attach design allows it to be mounted onto the drone in a few seconds.

1. Payload Capacity: 1KG.

2. Size: 120X70X38mm

3. Weight: 134g

4. Sensor: PC7070 NTSC/PAL

5. Pixels: 656x492pixels(NTSC)

6. Resolution: 800TVL (720P)

7. FOV: 110°NTSC

8. DC IN: 12V(+/-10%)



Spec Sheet
Payload
Waterproof Level: IP67
Take-off Weight: 1KG
Size: 120X70X38mm
Line length: 340mm
Weight: 134g
Camera
Sensor: PC7070 NTSC/PAL
Pixels: 656x492pixels(NTSC)
FOV: 110°NTSC
DC IN: 12V(+/-10%)
