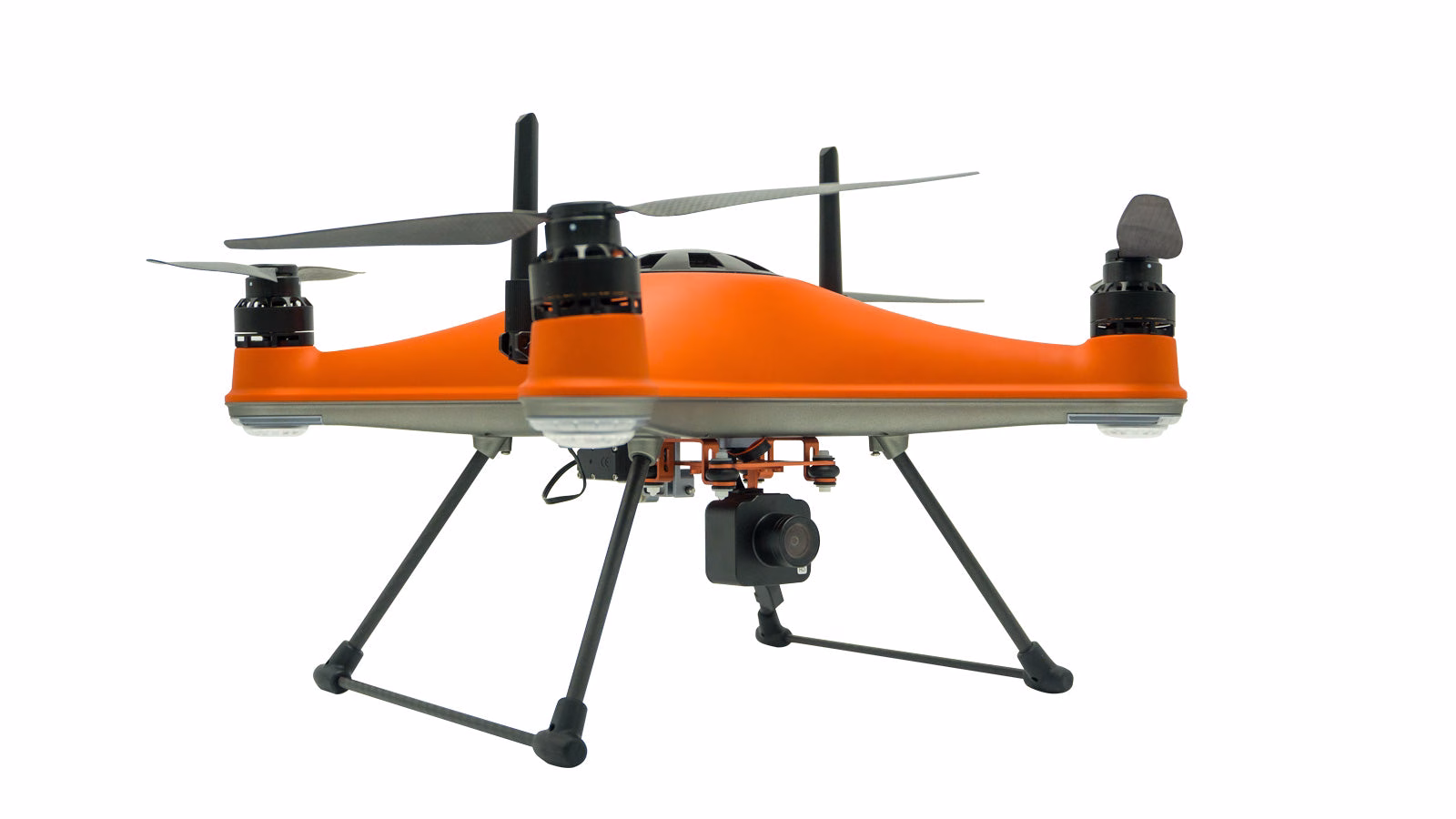

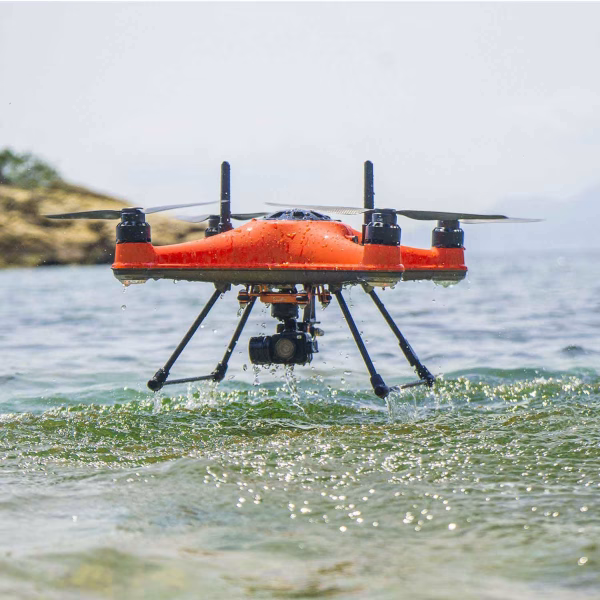

Waterproof Cinematic Drone
£1,948.71 – £9,396.42
Overview
The 5th Generation of the Swellpro Waterproof Drones has arrived – and it’s better than ever.
The SD4 represents over seven years of design improvements and experience, resulting in Swellpro’s most powerful all-digital floating & flying platform to date.
Without doubt a new benchmark for Waterproof Drones has again been set, quite simply there is no drone in the world like it.
- IP67 Rated Waterproof Drone
- IP66 Rated Controller – Now With The Option To Mount A Smart Phone Or Tablet
- 5KM Image Transmission Range On The Standard Antennas
- Upgraded 30 Minute Flight Time
- 2KG Payload Capacity
- Slide-in Smart Battery
The SD4 comes packed with loads more features and an even bigger range of payloads including the established three axis gimbal camera, which now shoots RAW files.
A collection of payload release mechanisms are still available as well as a gamechanging thermal imaging camera option. The Splashdrone 4 also comes equipped with a new and improved powerful mobile APP.
Microprocessor Controlled Smart Drone Battery
Each slide-in SD4 battery has its own integrated microprocessor controller, teamed with 6500mAh of high-performance lithium technology cells to provide up to 30 minutes of flight time. The SD4 smart battery provides:
- Real-time power monitoring and alerts
- Integrated balance charging to ensure battery health, safety and long life by constantly monitoring battery health, state-of-charge and temperature.
- Simpler battery storage and maintenance as the controller manages battery health even when not in the aircraft.
- Fast, slide in battery replacement. Integrated connectors allow for wire-free installation and replacement.
- Battery charging and usage data logging to allow for better battery management and event recording.
High-visibility, innovative waterproof body design
The design of the SD4’s fuselage brings together SwellPro engineers’ deep experience and understanding of waterproof drones, materials and processes. Its structure is simple in design, attractive in appearance, lightweight, strong and most importantly functional. The body has been designed to facilitate upgrading, repairing or replacement of parts as well as supporting various custom modifications thanks to integrated mounting points. A hinged, waterproof hatch makes changing the slide-in battery module fast and easy.
Powerful propulsion system with tuned flight computer
Following 18 months of intensive R&D, the SwellPro SD4 marries new motors, digital reflux speed controllers (ESC), an all-new custom flight computer and gyroscope to deliver a fully featured multi-purpose flight platform. Able to fly in challenging weather conditions with variable loads, the new SwellPro SD4 provides a reliable and flexible solution to the challenges of operating safely over water for long distances.
Waterproof motors
The newly designed 3510 motors have strong and stable performance with high load-carrying capacity and excellent flight performance. The motors have been specifically designed for the marine environment with premium materials, excellent waterproof coatings and salt-water rated bearings to resist damage from salt and sand in the marine environment. Please thoroughly rinse after using in saltwater, ensuring there are no salt deposits remaining.
Carbon fiber propellers
The SwellPro SD4 utilizes tuned and balanced 12” quick-release carbon-fibre propellers which are proven, durable and unaffected by marine corrosion. Their stiffness and accuracy of pitch make these an ideal solution for high-performance aircraft. The propellers are secured with quick-release bayonet mounts instead of the more common spin-on propellers that can detach when the drone is on the water.
New Reflux Electronic Motor Speed controllers (ESC)
The SD4 employs new 40A high-speed, digital reflux, energy-saving speed controllers. With fast response, low noise and integrated heat management the SwellPro SD4 has shorter braking distances, more stable flight and lower internal temperatures to help ensure flight safety and reliability.
Payloads up to 2kg
The SD4 can comfortably lift a payload of 1.5kg with a maximum payload weight of 2kg.
Integrated Anti-collision Strobe
On the top of the SD4, a bright white aircraft anti-collision strobe helps the pilot and other aircraft pinpoint the drone in low-light and darkness – meeting the regulatory requirements of many regions. The strobe can be activated or deactivated in flight by the SwellPro app.
Fully digital radio systems for clear, long-distance transmission
Using new advanced wireless digital radios, the SD4 can broadcast its image up to 5km away while airborne. Innovative adjustable antennas can be setup to maximize range depending on the requirements of the mission being flown. When flying just 0.5m above the water, range is still up to 2.8km and floating on the water surface the transmission range is 500m.
Multi-connect
Unlike many other drones, the SD4 allows for multiple devices and apps to be simultaneously connected to the drone’s flight systems either by multipoint WiFi, ethernet or serial interface.
Automatic Flip Function
If the aircraft is flipped in the water by a wave, the SD4 flight computer immediately locks the propellers for safety. When the pilot re-arms the drone, the drone will automatically perform a self-righting action and be ready for take-off.
Dark Mode
For covert, nighttime missions or to prevent startling wildlife at night, the drone’s navigation lights can be extinguished via the SwellPro app.
Open Platform Integration
Open Flight-Control API Interface
Using the SwellPro Open API, third-party manufacturers and users can interface to the SD4 flight platform. Third-party equipment can gather real-time flight data to provide context to sensor readings and to enable control of aircraft functions, gimbal, camera trigger and third-party instruments for industry-specific uses.
Pass-thru Two-way Serial Data Port
To facilitate third-party integrations, the SwellPro SD4 and remote controller are equipped with a unique pass-thru serial port (UART/TTL) that allows data generated from third-party payload sensors on the drone to be passed directly through to the serial port and WiFi interface of the remote controller. This two-way interface also allows real-time control signals from third-party equipment on the ground to be passed back to the sensor or drone flight computer.
Direct Ethernet Port
As well as multipoint WiFi, the SD4 remote controller also provides a wired ethernet connection. This port replicates the functionality of the WiFi and allows a wired connection for a PC or other physical ethernet equipment.
SDK for Drone, Cameras and Radio System Integration
The SwellPro SDK for SD4 facilitates interfacing to flight instructions and flight telemetry, camera control and settings as well as the digital radio system.
Drone WiFi hotspot
In addition to the WiFi hotspot on the remote controller, the SD4 drone also supports local connections over WiFi for simplified connection of third-party payloads without the need for cables. The drone’s WiFi network is transparently extended down to the WiFi network of the remote controller over the SwellPro datalink.
Payloads
Multiple Payload Options
The all-new SD4 body has been designed for integration with SwellPro accessories as well as custom and third-party modules both above and below the drone. SwellPro accessories like cameras and payload release modules are independent modules that can be mounted together to allow for different combinations according to user needs. Multiple interface ports allow for the simultaneous control and attachment of different modules.
GC1-S 1 AXIS GIMBAL CAMERA With the same sensor as the GC3-S, the GC1-S can capture high quality 4K videos and crisp photos. It also has a Pro mode and supports RAW photo. |
|
GC2-S 2 AXIS LOW-LIGHT GIMBAL CAMERA The new night vision camera comes with a spotlight that can illuminate nighttime scenes and restore true colors. Even without the LED, the camera itself can still capture decent details in low-light situations.
|
|

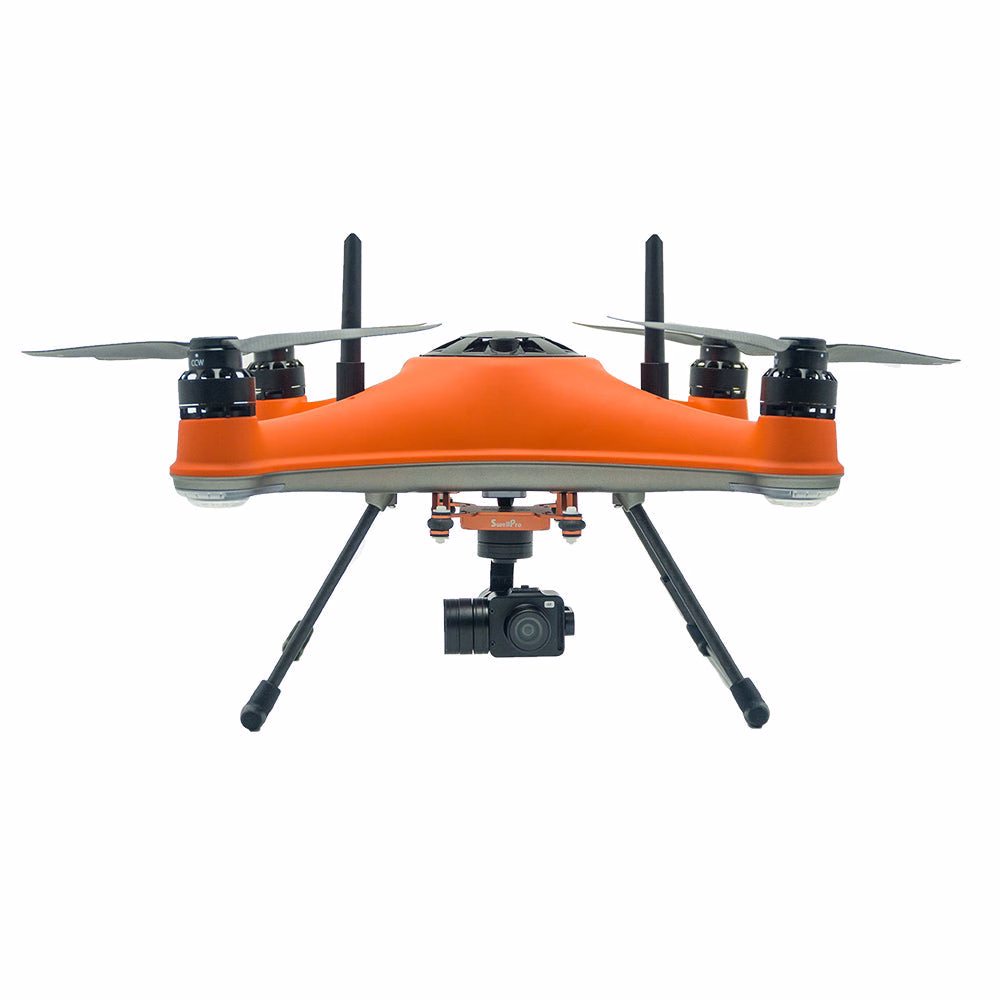

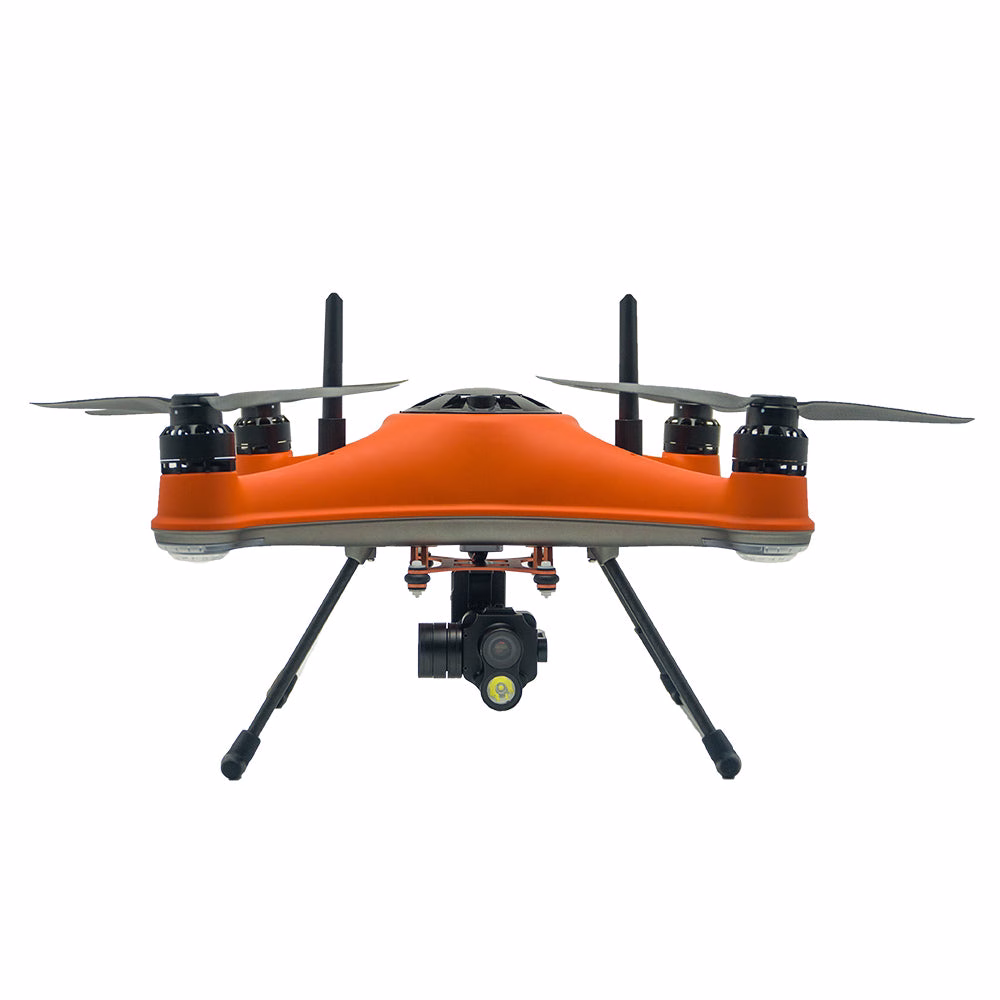

GC3-S 3 AXIS GIMBAL CAMERA Capture smooth videos and crisp photos with our new, fully waterproof 4K camera stabilized by a 3-axis gimbal. The GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in water while taking underwater shots. The GC3-S now has a Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom. |
|

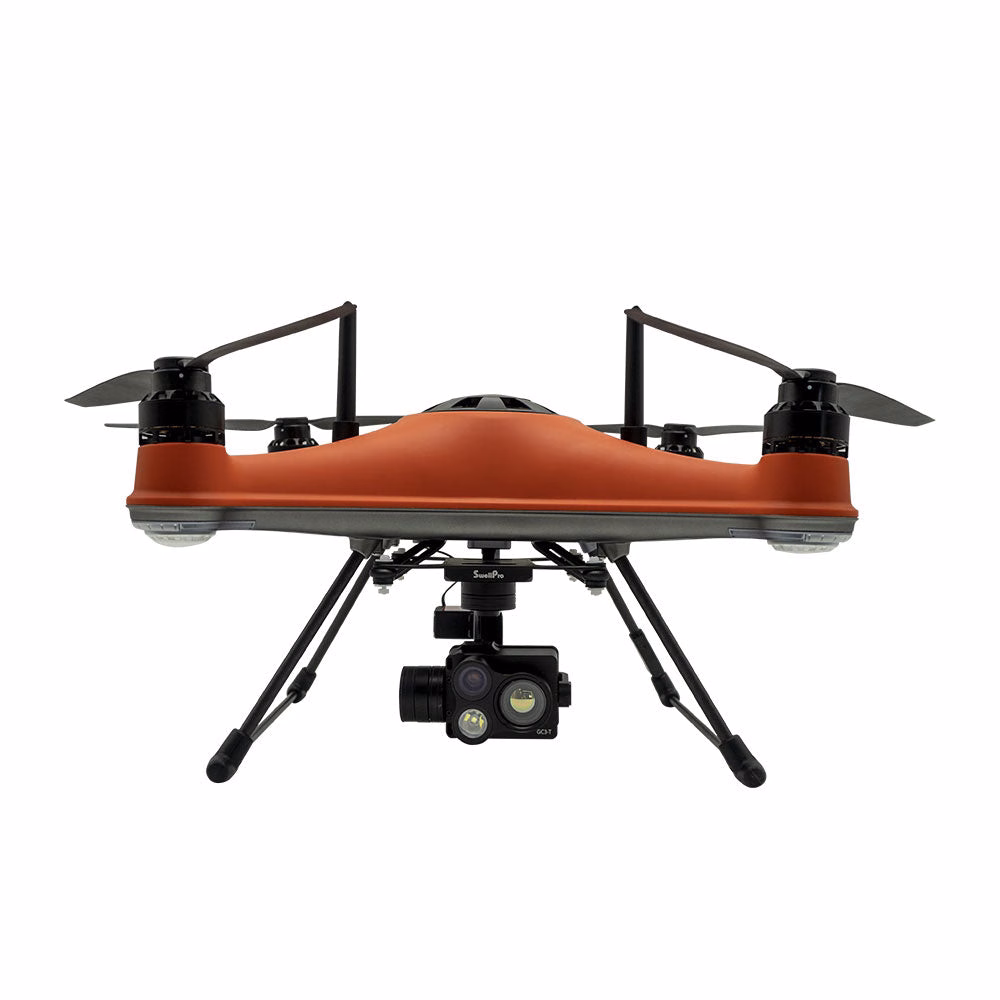

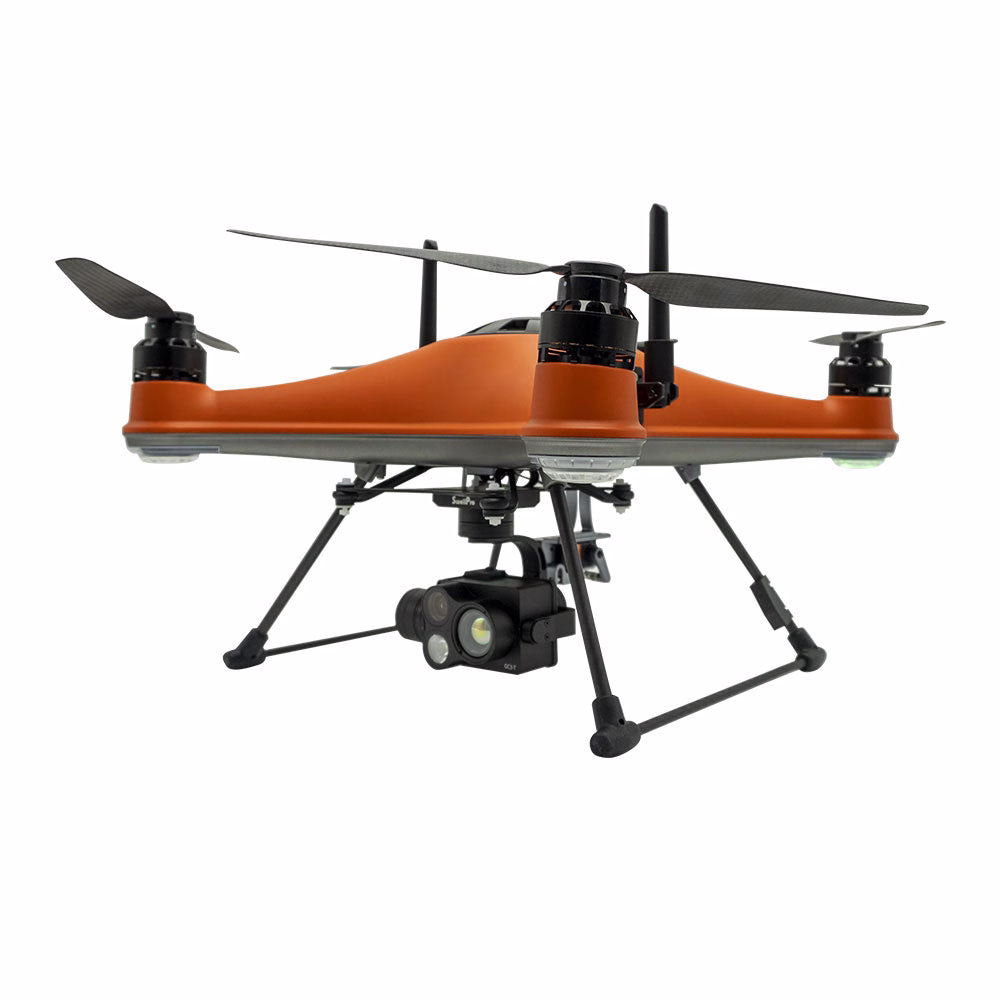

GC3-T 3 AXIS GIMBAL THERMAL CAMERA GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously. |
|

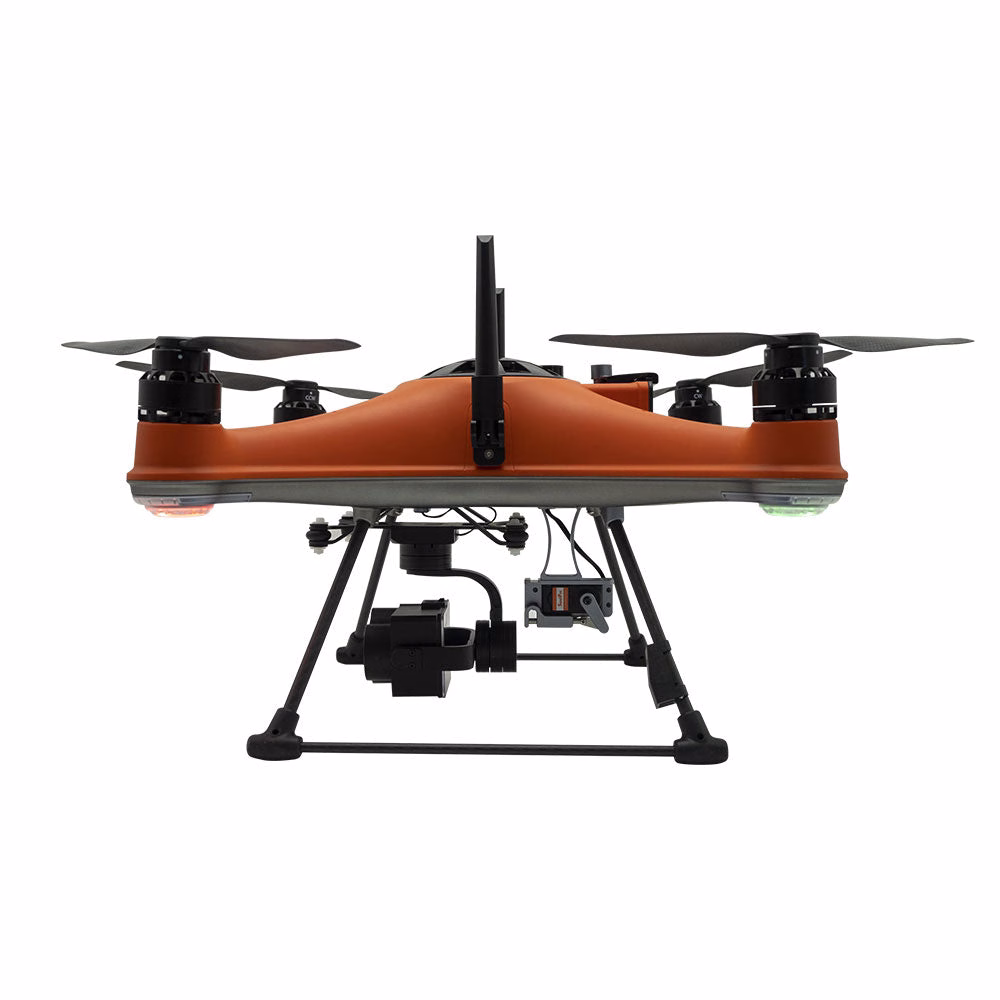

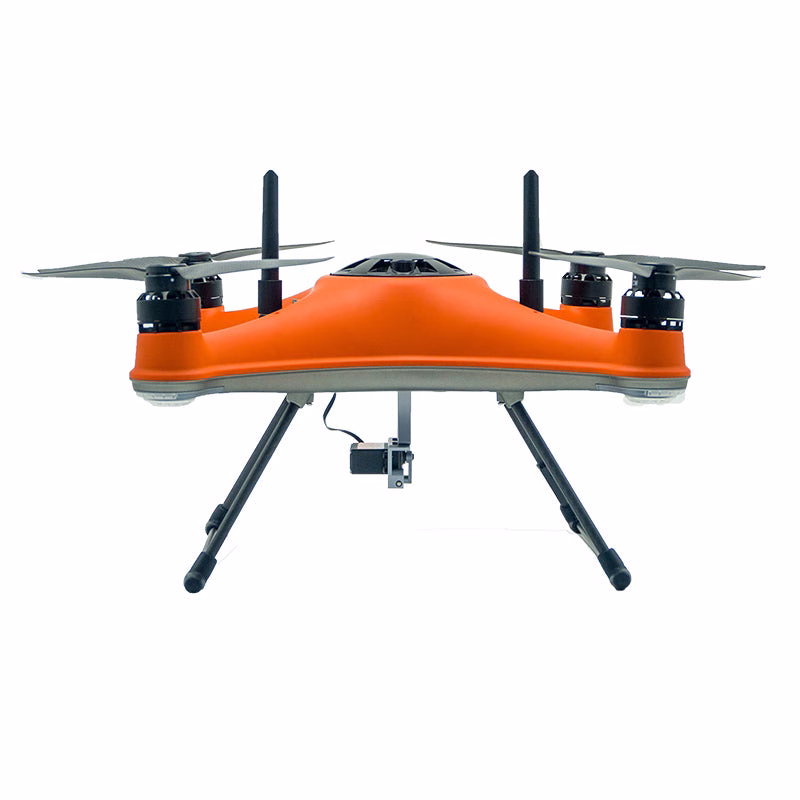

PL1-S Single Payload Release The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release.Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations. If you’d like to mount the release alongside a camera – Please purchase the PL1 or camera payload seperately. See all options here |
|
FAC Fixed Angle Camera |
Spec Sheet
Aircraft | |
Waterproof Rating: | IP67 |
Drone Weight(Including Battery & Props | 2.18KG |
Axis Diameter | 450mm |
Max Ascend Speed | 4 m/s |
Max Descend Speed | 4 m/s |
Max Speed | 22 m/s (49MPH) in ATTI mode & 10 m/s (22mph) in GPS Mode |
Max Tilt Angle | ATTI: 12.5°; ATTI (fast): 25° |
Max Takeoff Altitude: | 120m in GPS mode & ATTI mode – there is no limitation |
Max Wind Speed Resistance: | 8 m/s (18MPH) (11-16knots)(F4); 14 m/s (31MPH) (F7) peak gust |
Max Flight Time: | 30 mins (no wind & no load); (approx. 25 mins with GC3-S,approx.15 mins with load of 1.5kg) |
Max Flight Distance: | 5 KM |
Max Payload Capacity: | 2KG |
Propellers: | Carbon fiber quick release propellers |
Motors: | #3509 – 740Kv |
Operating Frequency: | 5180 – 5875 MHz |
Transmitter Power (EIRP): | FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm |
Working Temperature | -10℃ ~ 40℃ |
Satellite Positioning Systems: | GPS/GLONASS |
Hovering Precision: | ±0.5 m (vertical); ±0.5 m (horizontal) |
Pass-through Serial Port: | Connect to a third-party device and transfer the data of the third-party device to the remote control |
UART: | Allows for TTL serial port to TCP, with baud rate of 115200 |
Wi-Fi Hotspot | IP: 192.168.1.101:2222 |
Power Input: | 12V/2A | 5V/2A |
Controller

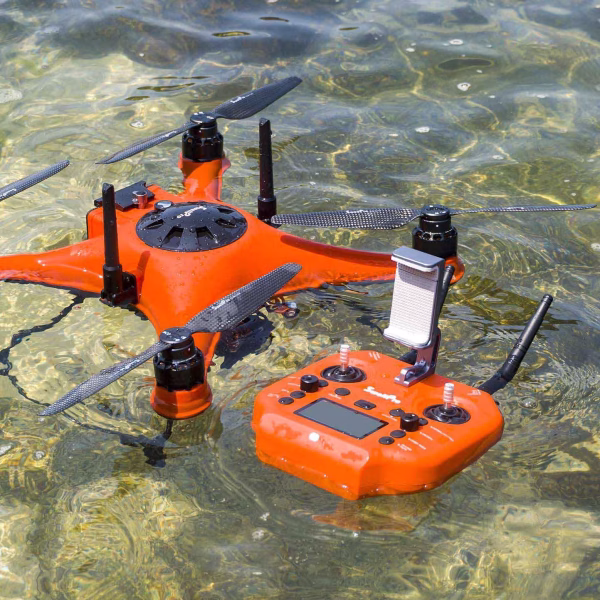

Fully Waterproof IP66-Rated Multifunction Remote Controller
The SwellPro SD4 remote controller has been carefully designed to provide worry free operation in harsh environments whilst remaining easy to use. Its IP66 rating ensures that it is protected from strong jets of water as well as sand and debris.
Built-In High-Quality Battery
An integrated SONY battery provides a maintenance-free power solution for the remote controller and up to 8 hours of battery life or 12 flights per charge.
Considered Design
All aspects of the new SD4 remote control have been refined and considered. The layout provides intuitive control of all aircraft features while the milled aluminum smart phone bracket ensures that your attached device is secure and can be easily adjusted to the optimum angle for viewing. In addition to audible alarms, the remote controller also vibrates to warn the pilot of issues.
Digital Telemetry Display
The integrated high-brightness 2-inch digital display provides critical aircraft telemetry and flight data giving the pilot real-time aircraft status even when flying without a tablet or phone attached.
Wi-Fi Multi-Point Hotspot
To ensure waterproofing of the remote controller and connected devices, the SD4 remote controller can provide a high-speed WiFi connection rather than cabled. A pioneering design allows multiple devices to be connected simultaneously, allowing different apps and devices to be used at the same time during flight.
Built-in GPS
The remote controller’s built-in GPS module allows the SD4 to include the pilot’s precise location in its flight calculations, enabling real-time tracking and dynamic return-home functions, such as returning to a moving boat.
Innovative flight controls
The patented “Smooth+” flight dials allow the pilot to switch from joystick control of the roll and yaw to a dial to finely adjust and maintain a desired altitude. Whether filming or surveying, with Smooth+ the pilot can “dial-in” just the right amount of aircraft movement to achieve and maintain smooth pans, orbits and sweeps – hands-free!
Remote Controller (MRC) | |
Waterproof Rating: | IP66 |
Operating Frequency: | 5180 – 5875 MHz |
Transmitter Power (EIRP) | FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm |
Real-time Video Transmission | 720P@30fps |
Latency | 200 ms (Dependant on actual shooting environment and mobile devices) |
Battery | 2S 3600mAh |
Working Time: | 7 hours |
Working Current/Voltage: | 0.3A/7.4V |
Ethernet Port | IP: 192.168.2.220:2222 |
Wi-Fi Hotspot | IP: 192.168.2.220: 2020; Default password: 12345678 |
Mobile Device Mount: | Suitable for any size phones; Tablets require larger mount(sold separately) |
Screen | 2.68 inch, 128×64 |
Working Temperature | -10℃ – 40℃ |
Remote Charging time: | 3 hours |
Power Input: | 5V/2A |
App
To coincide with the launch of the SD4, SwellPro have developed a new, powerful mobile app that enhances and optimizes operation of the SD4. Connected wirelessly to the SD4 remote controller, the app allows logging, planning, recording of missions as well as the control and parameter setting of your cameras and other modules in flight. Running the SwellPro app when you fly adds advanced functionality like mapping, routing and intelligent modes to the standard flight modes in the remote controller.
GPS Mode
In this native mode the multi-mode GPS module, barometer, gyroscope and accelerometers work together to realize intelligent flight functions such as accurate height setting, fixed-point hovering, intelligent flight and intelligent return. In this mode the maximum flight speed is 22mph, the maximum ascent speed is 9mph, and the maximum descent speed is 7mph.
Follow Pilot Mode
Utilizing the GPS data stream from the remote controller, the SD4 can faithfully follow the position of the pilot on a moving boat and record stable, high-definition video. The Follow motion algorithm tracks the position and angle of the remote controller relative to the drone and supports leading, parallel or chasing camera positions. Choose your preferred angle and height and the SD4 will keep the subject in frame. With good GPS coverage, the SD4 can follow at speeds up to 22 mph.
ATTI Mode
In this mode, the flight computer maintains aircraft altitude and attitude but does not stabilize position. This mode is particularly useful when landing the drone on a moving boat. The maximum flight speed in this mode is 40mph. With good GPS coverage, automated return home functionality is maintained.
Manual+ Mode
For truly advanced flying, the Manual+ mode allows experienced pilots to directly control the flight characteristics of the aircraft usually managed by the flight computer. In this mode, the aircraft will maintain whatever attitude the pilot chooses. Altitude, speed and attitude of the aircraft are all pilot controlled, providing a truly acrobatic flight experience. Experience pilots only should use this mode.
Orbit Mode (circle)
Hover above a point of interest (POI) and select Orbit mode. The SD4 will reverse 10m and then automatically orbit, keeping the point of interest in the center of the circle. The remote controller allows adjustment of the height, speed, direction, radius and camera position of the orbit. You can also choose Orbit Follow which will orbit whilst following a moving object at a chosen radius.
Intelligent Orbit
Using the SwellPro app, the pilot can select a map coordinate for a programmed orbit. Set the orbit circle radius, the number or revolutions, speed, height, and direction and the SD4 will fly to the location and perform the maneuver automatically while keeping the camera tracking the point of interest.
Headless Mode
In this mode, regardless of the drone’s orientation, pulling back on the remote controller’s pitch joystick will make the SD4 fly back towards the pilot’s position.
Cruise Mode
Set the speed and direction of flight and in Cruise mode the SD4 will automatically hold these settings for you when you release the joysticks. Height, speed and direction can still be adjusted with the remote controller.
Dynamic Return
The SD4 constantly records the GPS position of the pilot, allowing the aircraft to always return to the pilot even if they have moved from the original take-off point. This dynamic home-point location is used if the aircraft needs to return home due to a loss of control signal error or if the pilot initiates a return to home command.
Tap-to-Fly
The SD4 can autonomously fly to a selected location on the map and hover awaiting further commands. Tap the desired location on the map or input the coordinates manually, then then set the altitude and speed and the SD4 will do the rest.
Plan routes or Playback Flights
Using the SwellPro app, you can preplan a mission by selecting a series of waypoints on the map with individual speed, approach and hover heights, wait time and camera angle. Alternatively, you can playback a flight from the logs and the drone will accurately replay a prior flight on autopilot. Name and save your missions to the app library of favorite routes for later replay.
Grid Mission Planning
Connect up to 256 waypoints to form a mission area and the SD4 will perform a uniform grid pattern flight path at the selected speed and interval settings. This is particularly useful for search and rescue, surveys, inspections and orthomosaic photography.
Last Known Position
The remote controller always displays the current coordinates of the aircraft. Should the drone be flown out of range or crashed, the remote controller will continue to display the last-know position of the drone to aid recovery.
