FFD Fish Finder

Overview

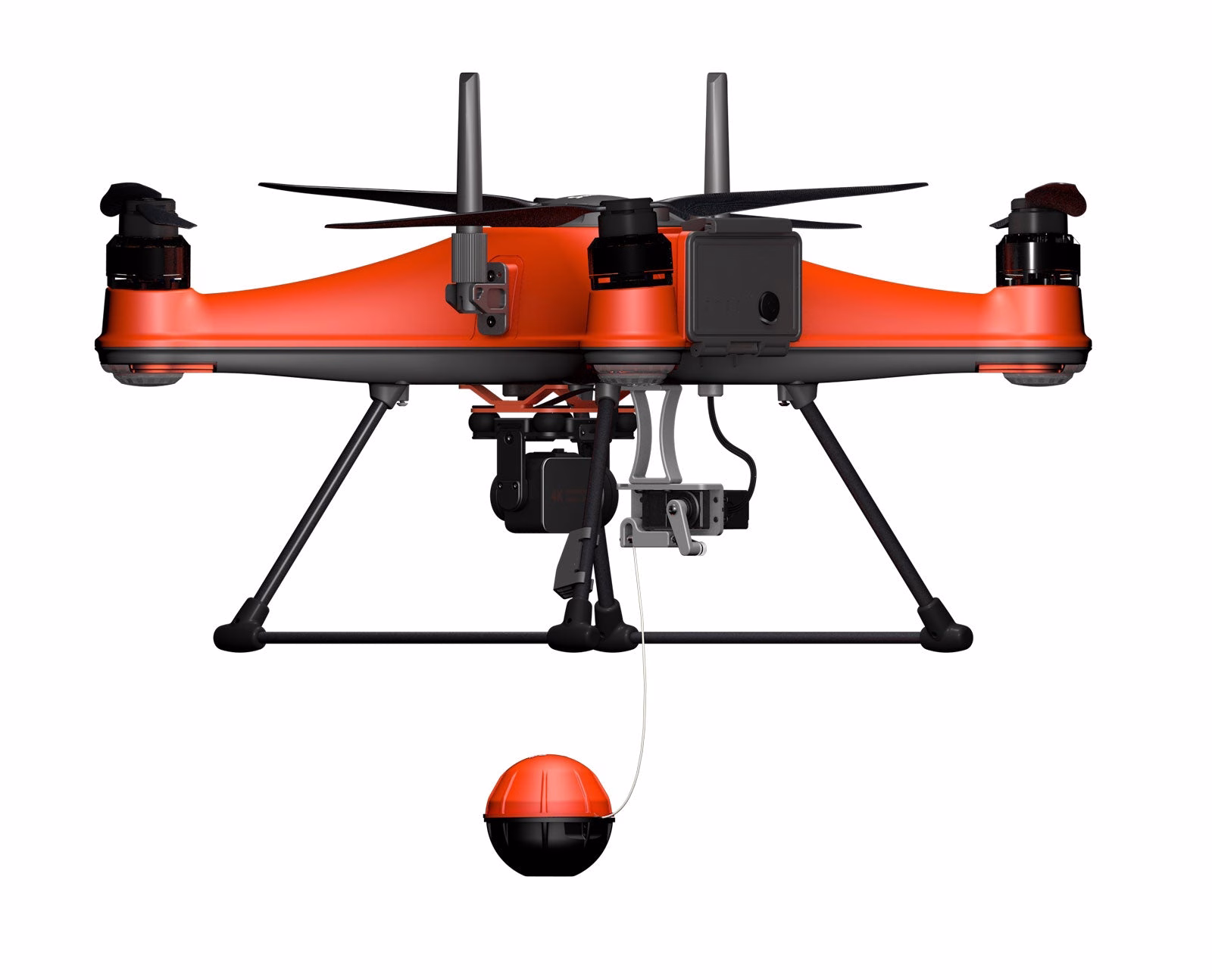

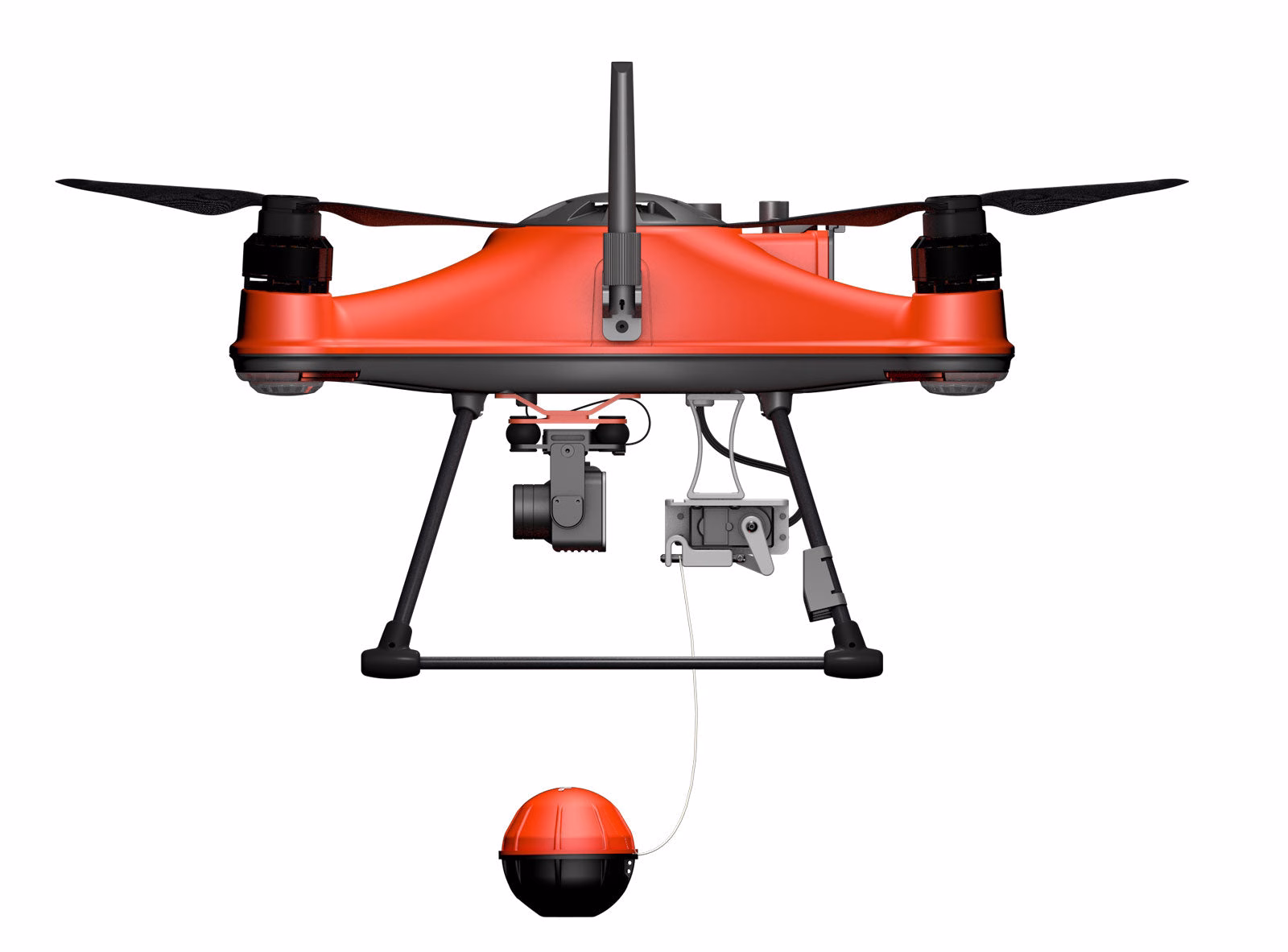

The first and only wireless sonar fish finder that sends sonar images to its companion mobile APP instantly through the signal bridge of the Splashdrone 4.

Sit & relax at the shore and let the FFD give you detailed images of fish and data of underwater terrains. The fish finder can be automatically switched on when it touches water.

View & Download FFD Manual As A PDF Document

View & Download The App



Spec Sheet

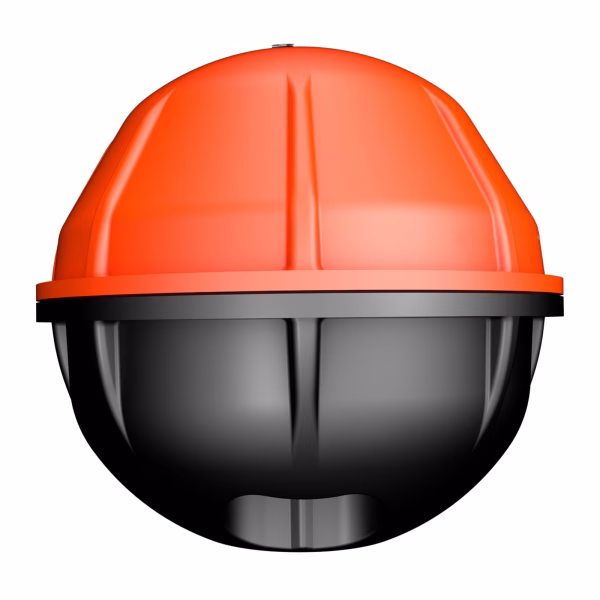

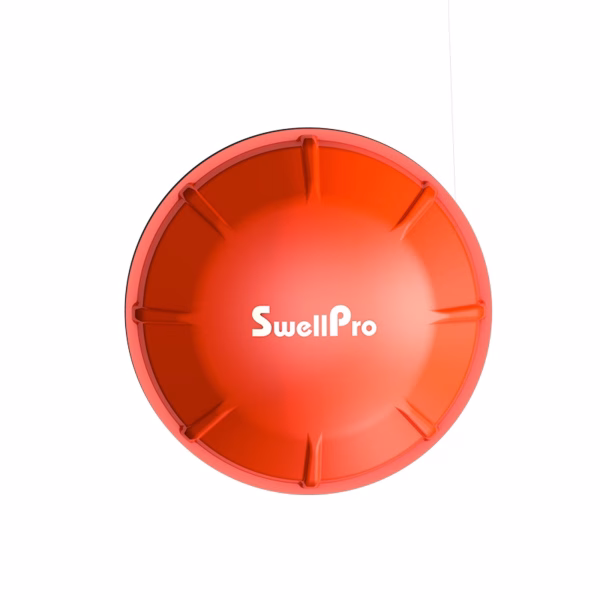

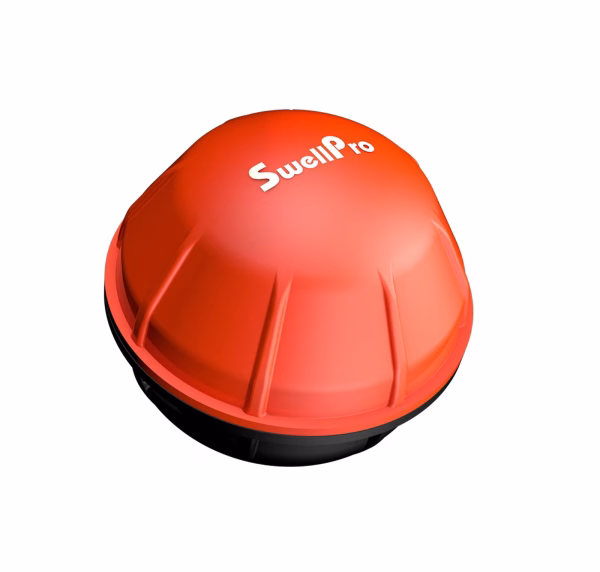

Dronar 01 (Fish Finder)
Waterproof Rating	IP68
Depth Range:	1.9ft – 131ft (0.6m – 40m)
Depth Precision:	0.1m
Sensitivity	100 Levels
Sonar Frequency:	125 kHz Single Beam
Detection Cone Angle:	30°
Audible Alarms:	Fish, Depth, Low Battery
Operating Range	1 mile/1.5km with Splashdrone 4. Used on it’s own range is 262ft/80m
Operating Temperature	-20c – 70c /-4f – 158f
Interface:	Dronar APP
Battery:	3600 mAh, 11.1 V; 39.96 Wh
Battery Life	3-5 Hours
Charging Time	3 Hours (5v/1A)
Wireless Connection:	2.4G/5.8G Wi-Fi
