DJI AL1 Spotlight
£259.00
- Powerful illumination with always-on and strobe modes, covering areas up to 2,200 square meters.
- Features intelligent gimbal integration and quick-release mounting for seamless adaptability.

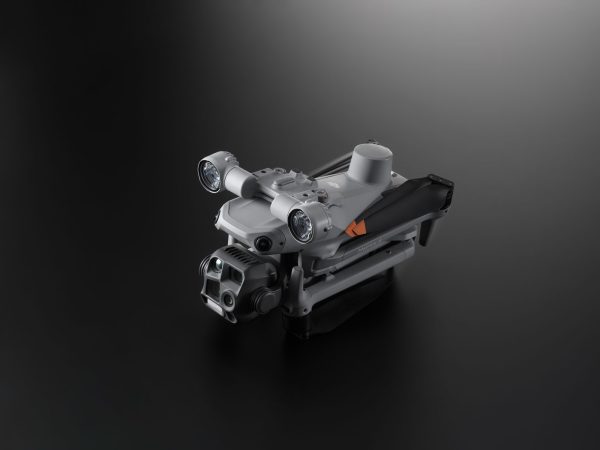

DJI AL1 Spotlight
The DJI AL1 Spotlight supports two versatile modes: always-on and strobe. It provides vivid illumination, effectively lighting up subjects from distances of over 100 meters.
Featuring intelligent gimbal integration, the spotlight tracks the camera’s movements, ensuring the illuminated area aligns perfectly with its view. For broader coverage, the wide-angle mode enables a wide field of view (FOV) lighting, ideal for illuminating larger areas.

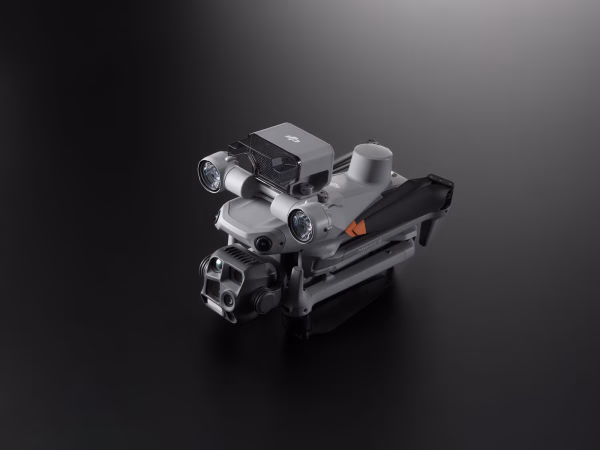

Whether used independently or in combination with the speaker, the DJI AL1 Spotlight adapts to diverse operational scenarios, offering unmatched flexibility for various drone applications.
| Specification | Details |
|---|---|
| Weight | 99 g (including bracket) Approx. 91 g (excluding bracket) |
| Dimensions | 95×164×30 mm (L×W×H, including bracket) 79×164×28 mm (L×W×H, without bracket) |
| Max. Power | 32 W |
| Illuminance | 4.3±0.2 lux @ 100 meters 17±0.2 lux @ 50 meters The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C. |
| Effective Illumination Angle | 23° (10% relative illumination) |
| Effective Illumination Area | 1,300 square meters @ 100 meters (10% relative illumination, Normal Mode) 2,200 square meters @ 100 meters (10% central illuminance, Wide FOV Mode) |
| Operating Mode | Supports always-on and strobe modes. |
| Gimbal Structural Design Range | Tilt: -140° to 50° |
| Controllable Range | Tilt: -90° to 35° |
| Max Control Speed (tilt) | 120°/s |
| Gimbal Alignment Accuracy | ±0.1° |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |

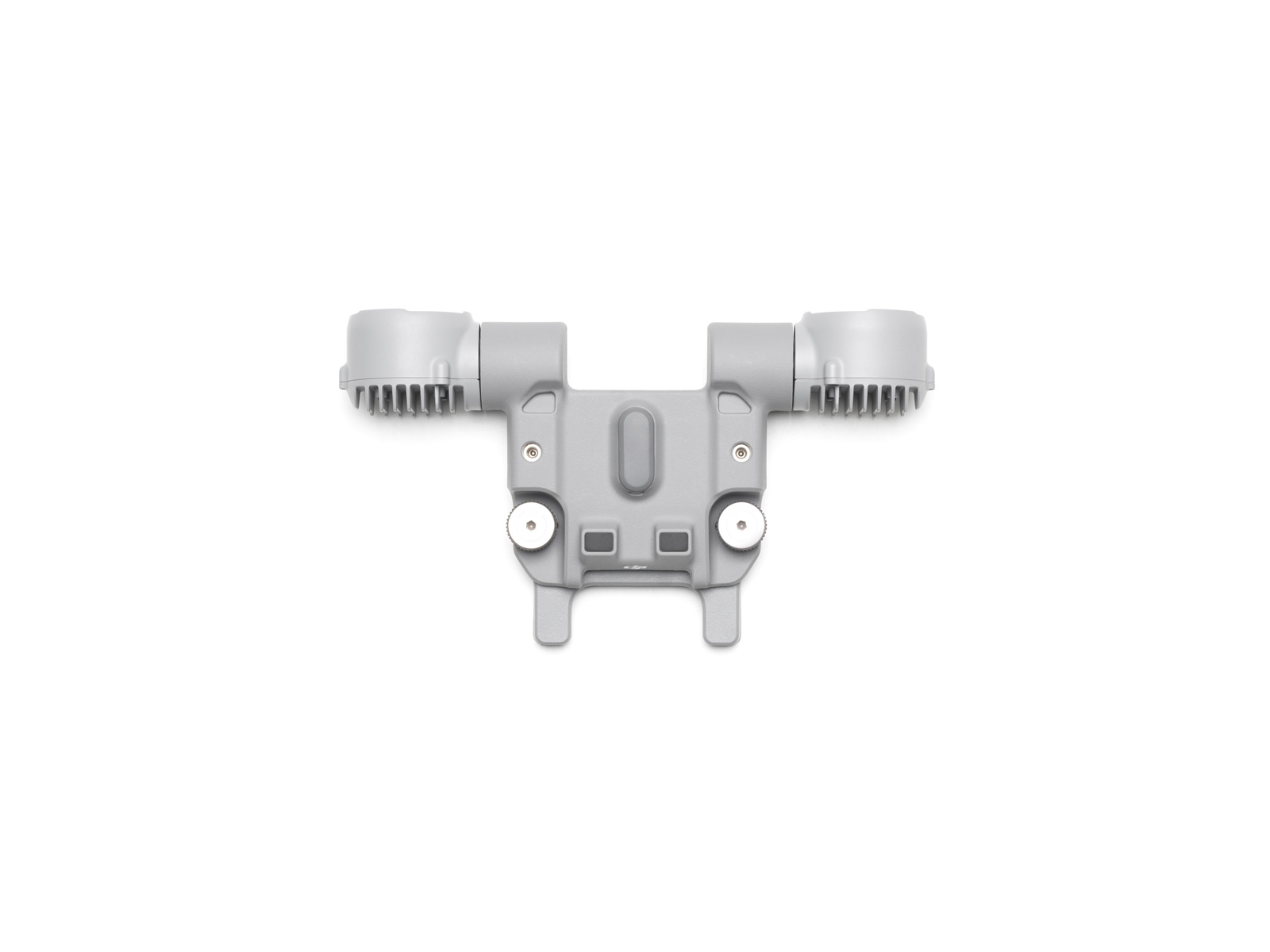

| Mounting | Quick-release hand-tightened screws |
