DB1560 Intelligent Flight Battery
£2,680.00
- High capacity: 30,000 mAh, 52.22 V (~1,567 Wh) intelligent battery for Agras T50 (also used on T40).
- Rapid turnarounds: Typical full recharge in ~9–12 minutes with the DJI C10000 charger or D12000i field generator (adequate 230 V supply required).
- Intelligent & safe: LED status, smart diagnostics, cell balancing, auto-storage discharge, and comprehensive over/under-voltage, over-current & temperature protection.
- Field-ready: Approx. 12.1 kg pack, IP54 protection, operating −5 °C to 45 °C; charging 0 °C to 60 °C.

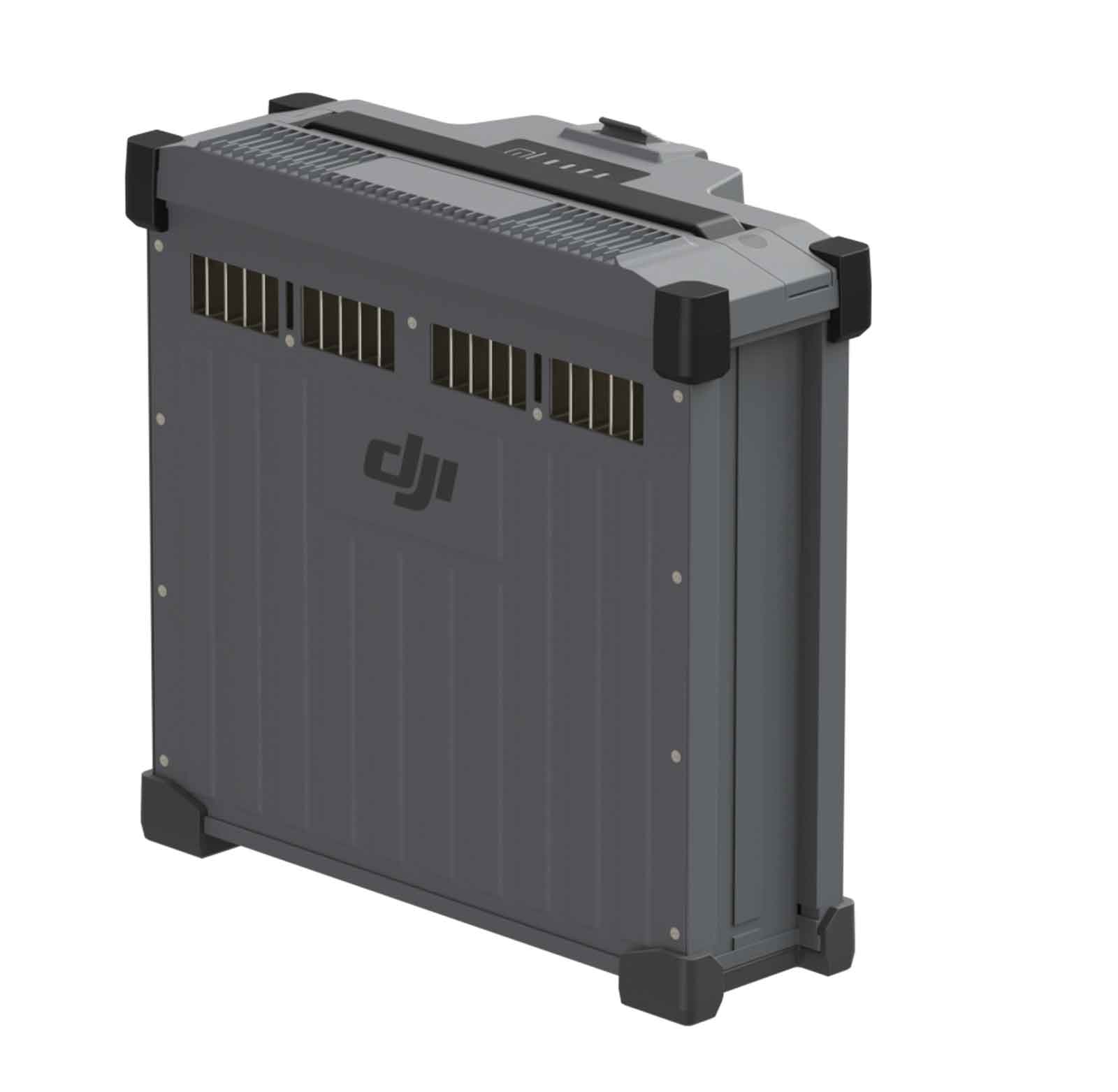

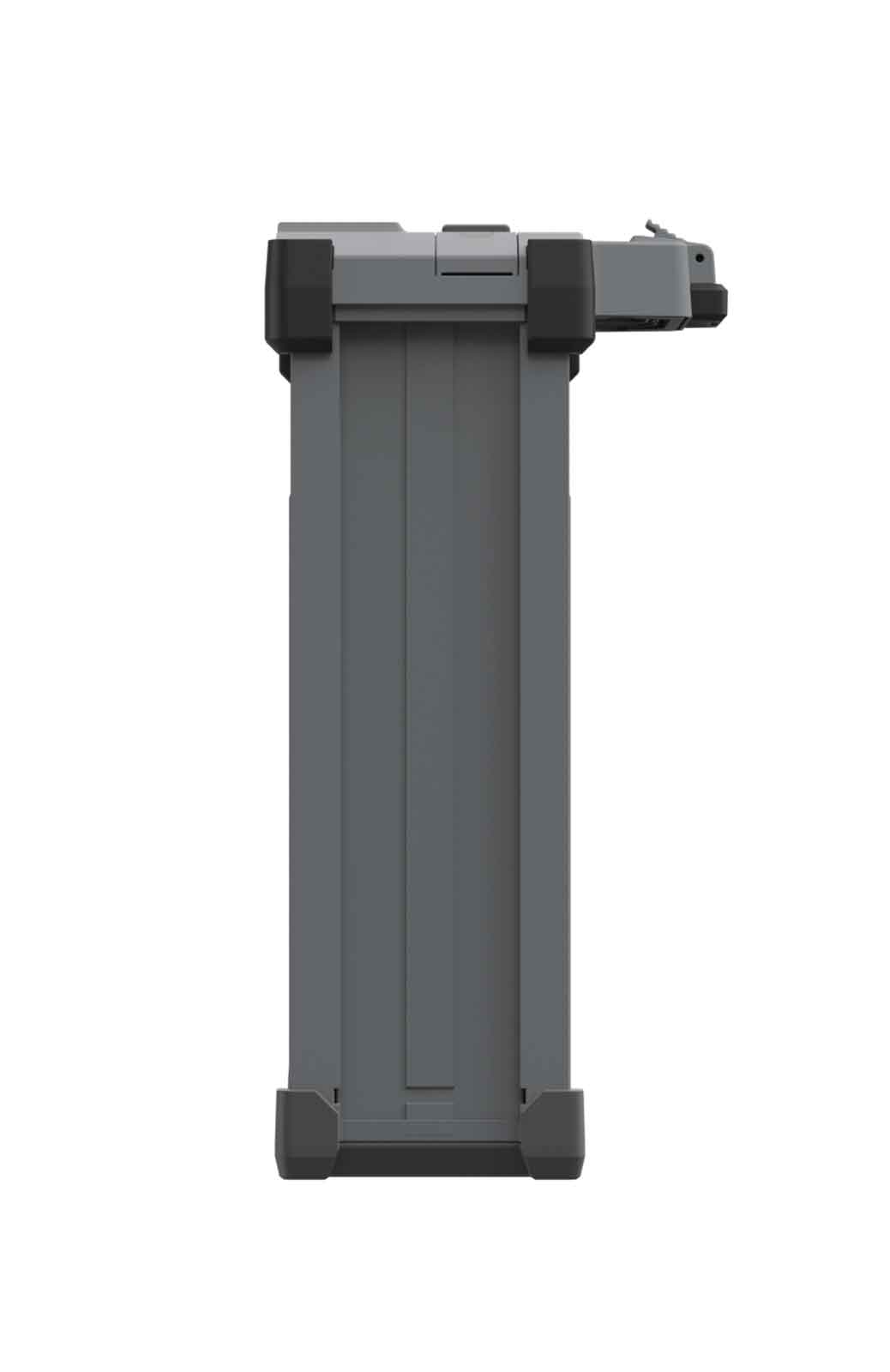

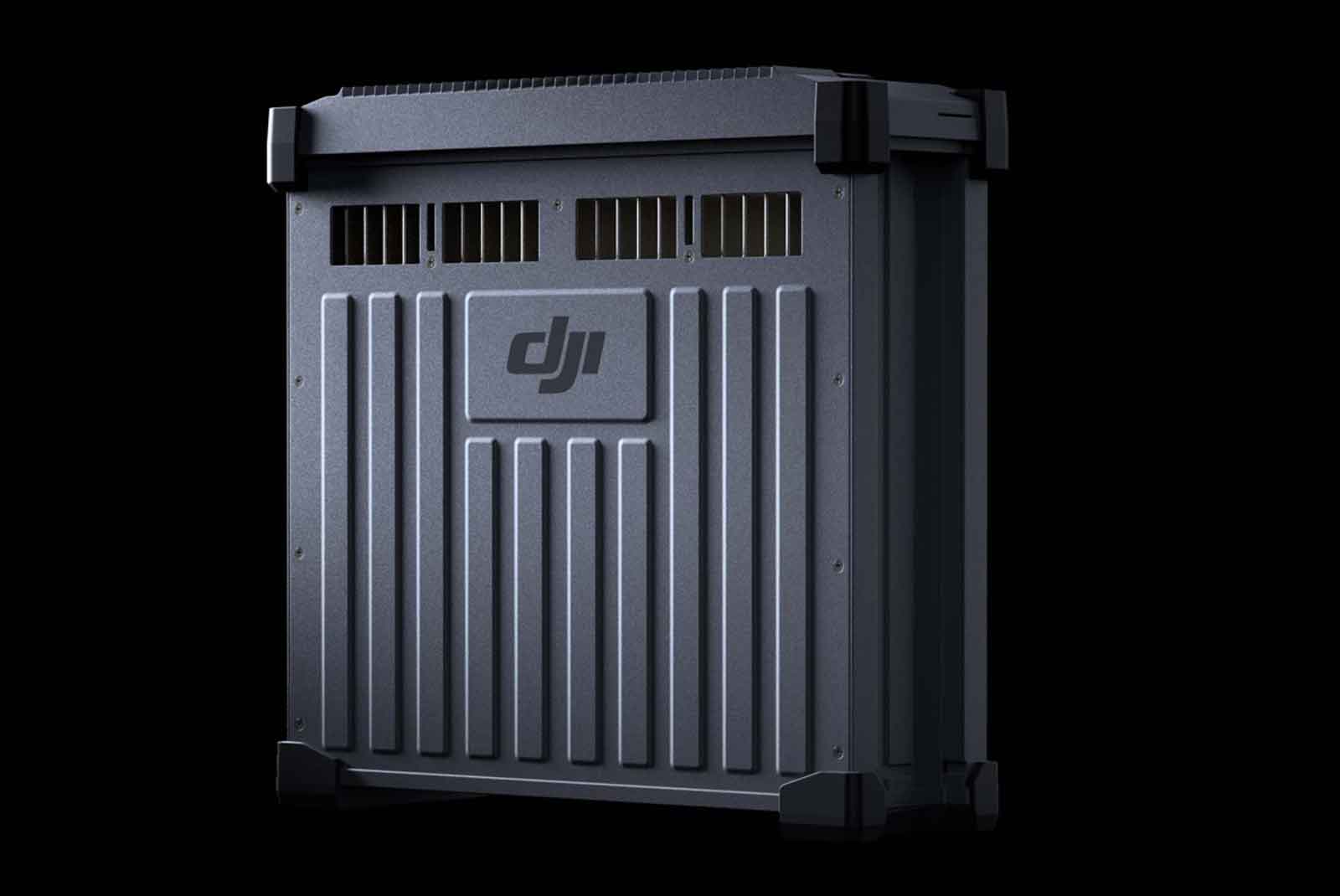

DB1560 Intelligent Flight Battery for DJI Agras T50 (UK)
Power your DJI Agras T50 with the DB1560 Intelligent Flight Battery — a contractor-grade pack
(30,000 mAh, 52.22 V, ~1,567 Wh) engineered for rapid turnarounds and
dependable field performance. Approx. battery weight: ~12.1 kg.
Key Benefits
- Quick status check: On-pack LEDs show remaining power at a glance — press the power button to view.
- Smart communication: Live battery data (voltage, remaining power, temperature, cycles) feeds the aircraft for
smarter power management and return-to-home behaviour. - Built-in diagnostics: Self-tests monitor for abnormal voltage, current or temperature, trigger alerts, and log
events to simplify troubleshooting. - Robust protection: Short-circuit and over/under-voltage protection; charging protection and fault indication
designed to safeguard the aircraft and charger connections. - Cell balancing: Automatically balances cells to help maintain performance and extend service life.
- Auto storage mode: Helps care for the pack by discharging after periods at full charge and settling to a
storage-friendly level after several days. - Adaptive charging: Adjusts charge current based on pack temperature and environmental conditions for safer,
more efficient charging. - Thermal management: Actively manages cell temperatures to keep the pack within its optimal operating range.
- Fast field turnarounds: Pair with the DJI C10000 charger or D12000i inverter generator
to fully charge a DB1560 in roughly 9–12 minutes (adequate power supply required).
Tip: For continuous T50 operations, rotate multiple DB1560 packs with a C10000 charger (or D12000i field generator) so charging aligns with your refill cycle at the field edge.
DB1560 Intelligent Flight Battery — Key Specifications
- Model: DB1560 Intelligent Flight Battery (BAX702)
- Capacity: 30,000 mAh
- Nominal voltage: 52.22 V
- Energy: ~1,567 Wh (52.22 V × 30 Ah)
- Approx. weight: 12.1 kg (22.2 lb)
- Chemistry: Lithium-ion NMC (LiNiMnCoO2)
- Max continuous discharge rate: up to 11.5 C
- Operating temperature (use): −5 °C to 45 °C (23 °F to 113 °F)
- Charging temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Ingress protection: IP54 with board-level potting/conformal protection
- Warranty guidance: up to 1,500 charge cycles or 12 months (whichever occurs first)
- Compatible aircraft: DJI Agras T50 and T40
- Max charging input power: up to 9,500 W (with compatible charger)
- Typical charge time (per battery): ~9–12 minutes using a high-output charging setup
- Compatible charging solutions:
- DJI C10000 Intelligent Battery Charger (up to ~9–12 min full charge when supplied with appropriate AC input)
- DJI D12000iE Multifunctional Inverter Generator (DC output up to 9,000 W; field charging integration)
Notes: Figures are typical and may vary with ambient temperature, battery state, and charger/generator configuration. Always follow DJI safety guidance on transport, storage, and charging.
