DJI T100 Mist Nozzle Package
£1,425.00
- Ultra-fine mist atomisation
- Even canopy spray coverage
- Durable, corrosion-resistant build
- Easy to install and maintain
- Optimised for Agras T100

DJI T100 Mist Nozzle Package
The DJI T100 Mist Nozzle Package is an optional upgrade designed for growers who need
extremely fine atomisation, deeper canopy penetration, and improved underside leaf coverage. This package enhances the T100’s spraying performance for orchards, vineyards, fruit trees, tall hedgerows, and other dense or vertically structured crops commonly found across the UK.
Why Choose the Mist Nozzle Package?
- Ultra-fine droplets for precision coverage
- Improved penetration into dense foliage
- Better underside leaf contact on tall crops
- Ideal for UK orchards, vineyards, and specialty crops
- Supports more efficient use of chemicals and nutrients
Enhanced Atomisation Performance
The mist nozzles produce extremely fine droplets that stay suspended longer
and spread more evenly through dense canopies. This is particularly valuable in
apple orchards, cherry orchards, vineyards, and high-value soft fruit where
both top-side and underside leaf coverage directly impact pest and disease control.
Better Coverage in Tall or Thick Canopies
On tall trees or tightly packed vines, standard centrifugal sprinklers may struggle to push
droplets deep enough to reach inner foliage.
The Mist Nozzle Package creates a more penetrative spray pattern, allowing
treatment to reach areas that are otherwise hard to cover with conventional drones or ground sprayers.
Reduced Drift, Higher Efficiency
With finer droplets and a more uniform mist, chemical drift is reduced and product efficiency increases.
This helps UK growers minimise input costs across fungicides, foliar feeds, biologicals, and
targeted applications where accuracy is essential.
Ultra-Fine Droplet Size
Produces mist-like droplets ideal for penetrating fruit tree canopies and vine rows.
Improved Leaf Underside Contact
Helps increase effectiveness against pests and fungal issues that hide beneath foliage.
Optimised for Specialty Crops
Perfect for UK vineyards, orchards, and high-density crops requiring targeted, uniform spray.
Quick Highlights
- Ultra-fine mist atomisation
- Improved canopy penetration
- Better spray deposition on tall crops
- Reduced drift and chemical waste
- Ideal for orchards and vineyards
DJI Mist Nozzle — Frequently Asked Questions
What is the DJI Mist Nozzle for the Agras T100?›
The DJI Mist Nozzle (Model LX09550SX) is an optional high‑performance spray nozzle kit for the DJI Agras T100 that allows finer droplet output and enhanced canopy penetration — ideal for orchards, vineyards and dense crops.
What droplet sizes and spray width does the Mist Nozzle support?›
When installed, the Mist Nozzle supports droplet sizes in the region of 50‑500 µm and helps extend effective spray width up to around 5–13 m under optimal conditions.
How does the Mist Nozzle improve canopy penetration and coverage?›
The Mist Nozzle system includes water‑cooled spray channels and fine atomisation designed to ensure deeper penetration into dense foliage and underside leaf surfaces — especially beneficial for tree and orchard applications.
Is the Mist Nozzle compatible with all versions of the Agras T100?›
Yes — the Mist Nozzle LX09550SX is listed by DJI as an optional spray nozzle module compatible with the Agras T100 spraying system. Confirm you have the correct turret/arms for the four‑nozzle layout for full effect.
What maintenance and clean‑out procedures apply to the Mist Nozzle?›
After use, flush the nozzles with clean water (or approved rinse solution), inspect for blockages or wear on mist jets, clean or replace filters in the spray system, and store in a dry, cool environment to maintain long‑term performance.
What farm conditions or UK operations benefit most from using the Mist Nozzle?›
UK operators working in tall orchards, vineyards, high‑canopy forestry, or dense under‑storey crops will benefit from the Mist Nozzle’s enhanced droplet penetration and coverage — it’s ideal where traditional nozzles struggle with canopy shadow and underside leaf surfaces.
What are the purchasing and support considerations in the UK?›
Purchase through a UK‑authorised DJI Agriculture reseller to ensure warranty support, spare part access and compatibility confirmation. Confirm delivery lead time and that your drone’s firmware is updated to support the optional nozzle module.
What’s in the Box
DJI Agras T100 Mist Nozzle Package — Key Specifications
Optional water‑cooled mist nozzle upgrade for the DJI Agras T100 agricultural drone. Delivers ultra‑fine droplet atomisation, expanded spray width for orchards and precision applications, and enhanced thermal stability for demanding conditions.
Droplet size ~50 µm minimum
Four‑nozzle array option for wider swath
Ideal for orchard & canopy applications
Enhanced penetration beneath foliage
Upgrades standard spraying setup
Mist Nozzle Package Specifications
- Nozzle Model (Optional): LX09550SX (Mist Nozzle) – replaces standard LX07550SX nozzles.
- Nozzle Quantity: Available as 4‑nozzle rear array upgrade (versus standard 2‑nozzle).
- Droplet Size Range: Approx. 50 µm – 500 µm for fine atomisation in canopy and orchard environments.
- Effective Spray Width: Approx. ~5–13 m (wider swath when using 4‑nozzle array in orchard mode).
- Flow Rate Capability: Compatible with up to ~40 L/min when upgrade kit engaged and higher flow mode selected.

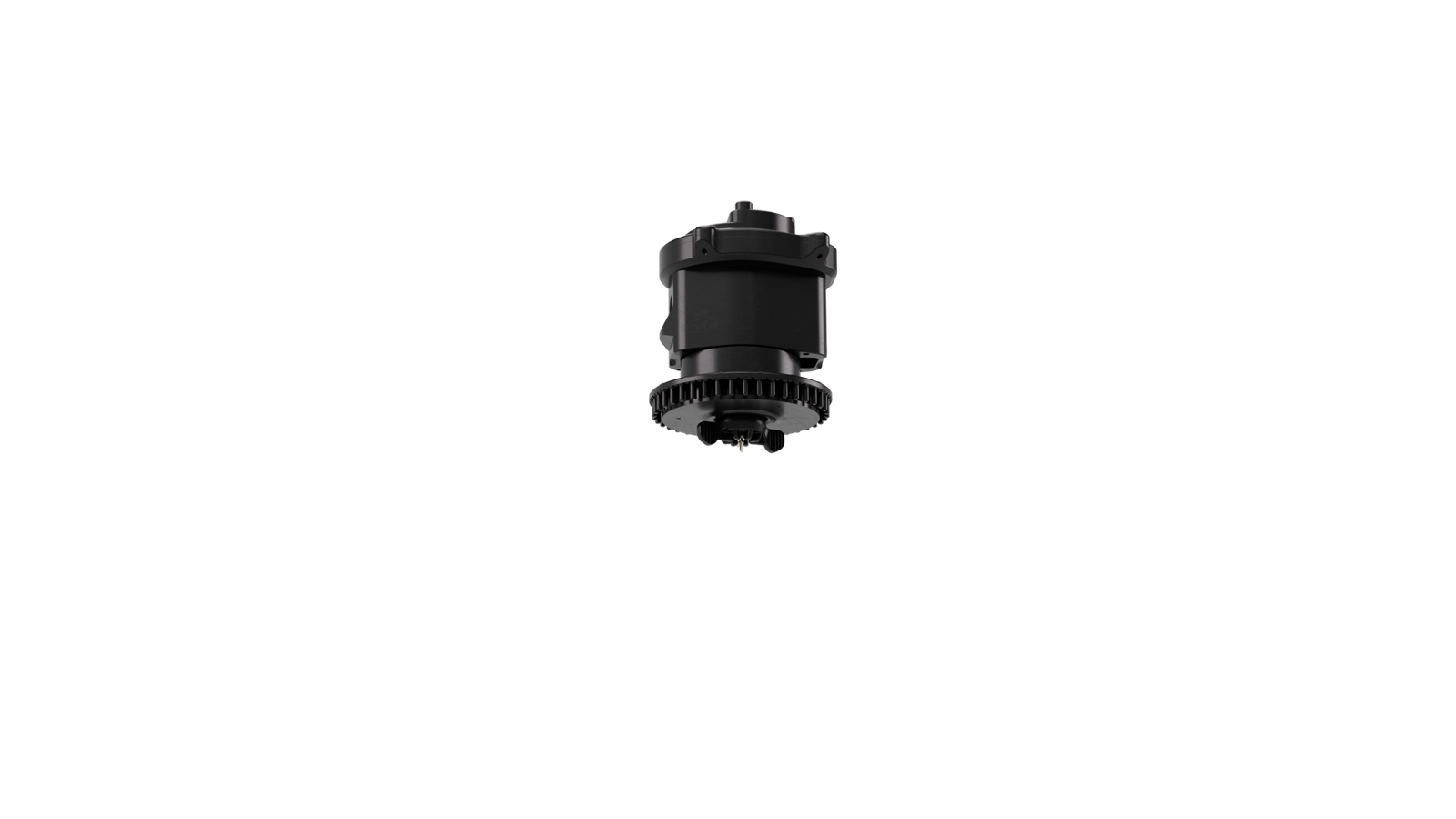

- Cooling Feature: Water‑cooled motor/atomiser path to dissipate heat and improve nozzle performance and longevity in heavy use scenarios.
- Mounting & Compatibility: Designed specifically for the Agras T100 platform, fits directly into the spraying system upgrade bracket.
- Applications: Ideal for orchard spraying, high‑density canopy fungicide or insecticide application, improved underside leaf coverage, drift‑sensitive crops.
* Performance figures are typical under optimal conditions (clear canopy, correct altitude and flight speed). Actual coverage, droplet size and width will vary depending on speed, altitude, product formulation and environmental conditions. Always follow DJI operational guidance, chemical label instructions, and local agricultural regulations.
