DJI Dock 3 with Matrice 4D/4TD – Drone-in-a-Box for Remote Missions
Drone Sales UK proudly offers the DJI Dock 3, a cutting-edge drone-in-a-box solution tailored for 24/7 autonomous operations across critical sectors like public safety, security, construction, and infrastructure.
Discover the future of autonomous drone operations with the DJI Dock 3 and Matrice 4TD. Built for 24/7 reliability, remote deployment, and real-time aerial intelligence. Now available at Drone Sales UK.
Reliable Autonomous Aerial Operations
The DJI Dock 3 paired with the Matrice 4TD sets a new benchmark for remote drone deployment. Designed for security, inspection, and emergency response, this robust duo delivers seamless integration, remote access, and autonomous charging in a weather-resistant dock.
Key Features
- All-in-One System: Dock and drone integration for fully automated missions.

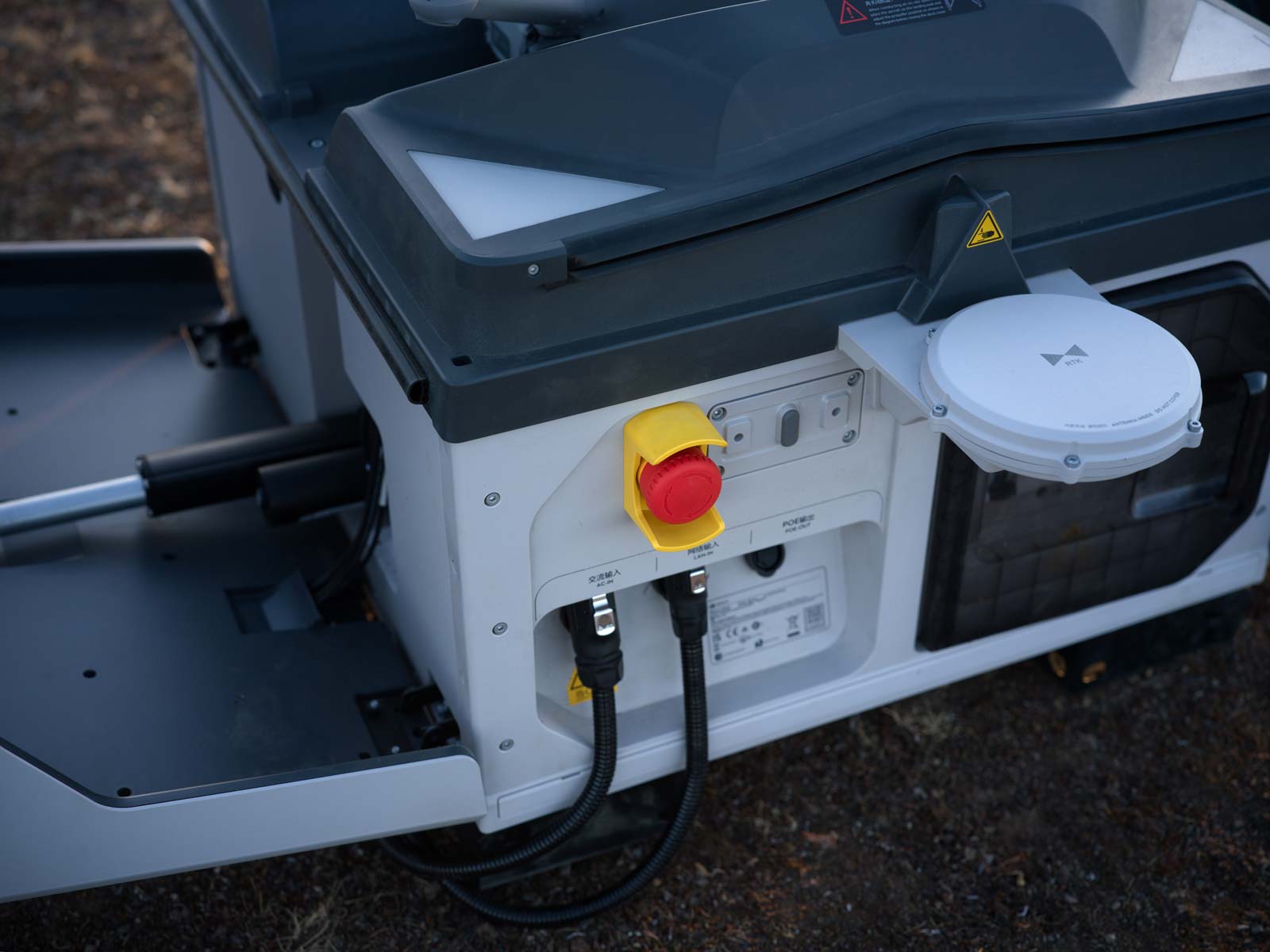

- Quick Charging: Fast recharge cycle with internal climate control for optimal battery performance.
- High-Precision Imaging: Matrice 4TD includes wide-angle, zoom, thermal, and laser rangefinder sensors.
- Weatherproof: IP55-rated dock with dust and water resistance for harsh environments.
- Remote Control: Plan and launch missions via DJI FlightHub 2 for 24/7 coverage.
Use Cases
- Industrial facility surveillance
- Infrastructure inspection (rail, power, pipelines)
- Emergency response and search & rescue
- Perimeter monitoring and patrols
Technical Specifications
Component | Specification |
---|---|
Dock Size | 780 × 820 × 870 mm |
Weight | Approx. 100 kg (empty) |
Protection Rating | IP55 |
Operating Temperature | -25°C to 45°C |
Matrice 4TD Flight Time | Up to 50 minutes |
Thermal Resolution | 640 × 512 @ 30 Hz |
Optical Zoom | Up to 32x |
Charging Time | Approx. 35 minutes (to 90%) |
DJI Care Enterprise Plus – Included Protection
Every Matrice 4D and 4TD sold through Drone Sales UK comes with 1-year DJI Care Enterprise Plus cover at no extra cost.
- Unlimited free repairs within coverage limits.
- Up to two free battery replacements per year.
- Free two-way shipping for repairs.
- Auto-activation—no code required. Renewal available after one year (fees apply).
Contact Drone Sales UK to learn more or to get your drone-in-a-box solution today.
DJI Dock 3 – Frequently Asked Questions
What drones are compatible with DJI Dock 3?
The DJI Dock 3 is specifically designed to work seamlessly with the DJI Matrice 4TD, enabling automated deployment, charging, and mission control.

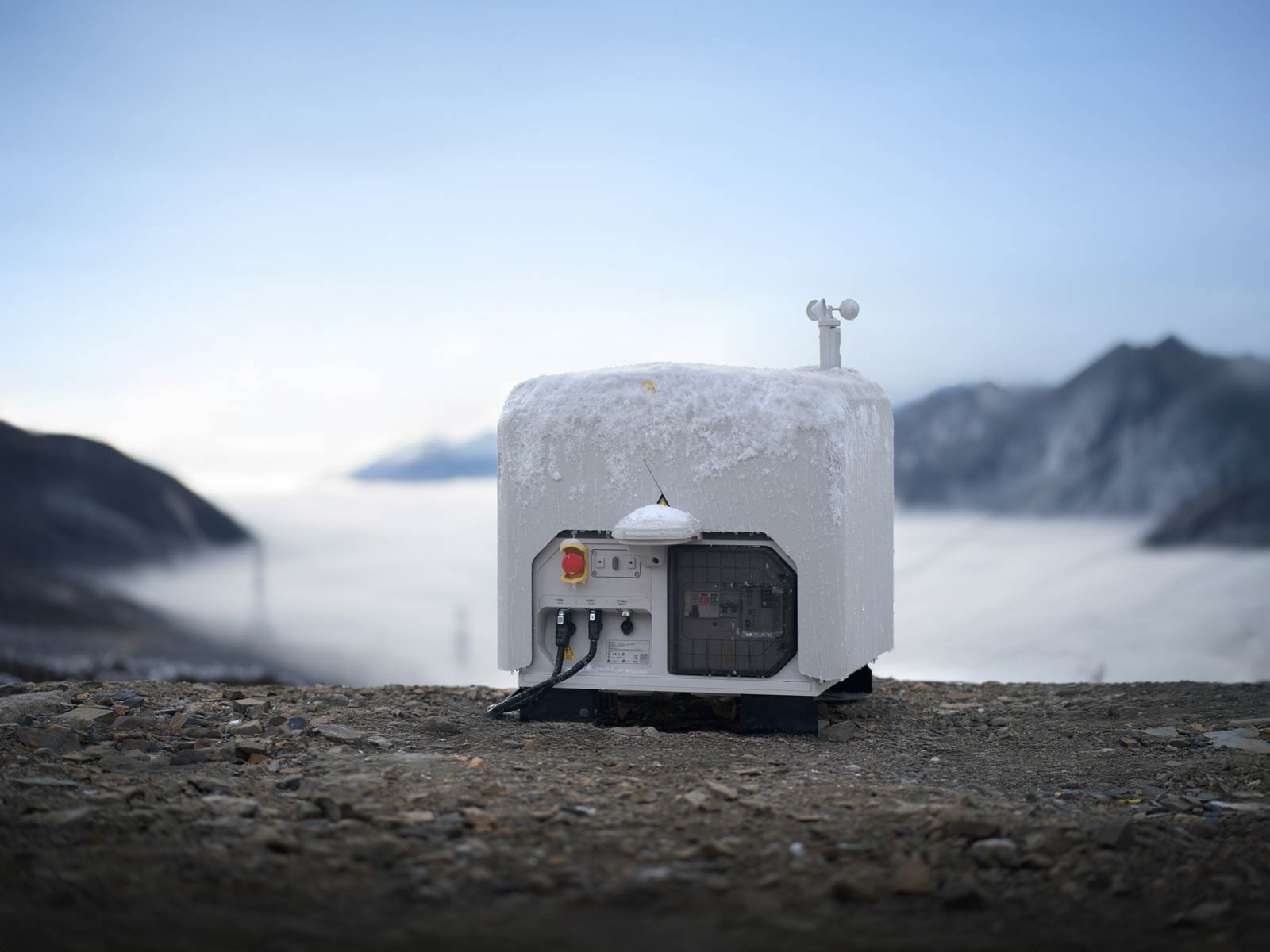

Can the Dock operate in harsh weather?
Yes. The Dock 3 is IP55-rated for dust and water resistance. It also features active climate control to protect the drone and onboard systems in extreme temperatures.
How long does it take to recharge the Matrice 4TD?
It takes approximately 35 minutes to fully recharge the Matrice 4TD using the Dock’s fast-charging system, minimising mission downtime.
Does DJI Dock 3 support remote mission planning?
Absolutely. Using DJI FlightHub 2, operators can schedule missions, monitor flights, and receive real-time video feeds—all from a remote location.
Is there a backup power option?
Yes. The Dock 3 includes a built-in UPS (Uninterruptible Power Supply) to ensure safe landings and basic operation in the event of a power outage.
Can the Dock handle thermal and night operations?
Yes. The Matrice 4TD features a dual camera system (visual + thermal), making it ideal for night surveillance, emergency response, and search & rescue operations.
Smart Features of DJI Dock 3 with Matrice 4TD
- Automated Drone Deployment: Fully automated launch, landing, and charging—ideal for remote or scheduled missions.
- DJI FlightHub 2 Integration: Centralise mission planning, fleet management, and real-time data streaming with DJI’s cloud platform.
- Live HD Video Preview: Stream clear, real-time video from the Matrice 4TD directly to your operations centre.
- Intelligent Obstacle Avoidance: Advanced sensors and AI algorithms help prevent collisions and ensure safe flight paths.
- Remote Diagnostics & Firmware Updates: Monitor system health and update firmware without visiting the site.
- Weather & Environment Monitoring: Built-in sensors monitor local conditions and delay flights during poor weather.
- Thermal + Visual AI Detection: Detect humans, animals, and vehicles using dual camera feeds for security, inspection, and search & rescue.
- Smart Return-to-Dock: Precision landing and return based on GPS, obstacle awareness, and safe descent logic.
- Scheduled and Event-Based Missions: Automate flight routines or trigger deployments based on external events or alerts.
What’s in the Box
- 1x DJI Dock 3
- 1x Matrice 4TD Drone
- 1x Charging Pad
- 1x Antenna Kit
- 1x Maintenance Tool Kit
- 1x Setup Guide & Documentation
Component | Specification |
---|---|
Supported Drone | DJI Matrice 4TD |
Dock Weight | Approx. 75 kg |
Dimensions | 570 × 583 × 465 mm (L × W × H) |
Max Charging Time | 32 mins (Battery from 20% to 90%) |
Ingress Protection | IP55 (Dock), IP54 (Drone) |
Operating Temperature | -25°C to 45°C |
Power Supply | 100-240V AC, 47-63Hz |
Connectivity | Ethernet, 4G LTE (Dongle), Wi-Fi |
Flight Time (Drone) | Up to 50 minutes |
Max Range (Drone) | 15 km (FCC) |
Camera (Matrice 4TD) | 48MP Wide, 640×512 Thermal, Laser Rangefinder |
Camera Specifications
Specification | Value |
---|---|
Wide-Angle Camera | 4/3 CMOS, 20 MP (M4D), 1/1.3 CMOS, 48 MP (M4TD) |
Medium Tele Camera | 1/1.3-inch CMOS, 48 MP |
Tele Camera | 1/1.5-inch CMOS, 48 MP |
Max Image Size | 8192×6144 (Tele) |
Still Photo Modes | Single, Timed, Smart Capture, Panorama |
ISO Range | 100–409600 (varies by model and mode) |
Shutter Speed | Electronic: 2–1/8000 s, Mechanical: 2–1/2000 s |
Thermal Imaging Capabilities (M4TD)
Specification | Value |
---|---|
Sensor Type | Uncooled VOx Microbolometer |
Resolution | 640 x 512 |
Frame Rate | 30 Hz |
Temperature Range | -20°C to 150°C (High Gain), up to 500°C (Low Gain) |
Measurement Modes | Spot, Area |
Palette Options | White Hot, Black Hot, Rainbow, Iron Red, etc. |
Gimbal Performance
Specification | Value |
---|---|
Type | 3-axis mechanical (tilt, roll, pan) |
Control Range (Tilt) | -90° to +35° (M4D), -90° to +90° (M4TD) |
Max Speed (Tilt) | 100°/s |
Vibration Compensation | ±0.005° |
Video Transmission
Specification | Value |
---|---|
System | DJI O4+ Enterprise |
Live View Quality | Up to 1080p@30fps |
Max Distance | 25 km (FCC), 12 km (CE) |
Antenna Setup | 8 antennas, 2T4R |
Latency | ~100 ms (aircraft to dock) |
