DJI Agras T25
Price range: £9,618.00 through £16,069.00
- 20Â L spraying tank & 35Â L spreading hopper
- Compact, foldable design for easy transport
- RTK positioning for high-accuracy application (±10 cm)
- Phased-array radar & binocular vision for obstacle sensing & terrain following
- Autonomous missions via DJI Agriculture app; quick field planning
- Ideal for orchards, vineyards & smaller fields
- Quick battery swaps & field charging options
- UK setup, training & compliance support (HSE/CRD & CAA)

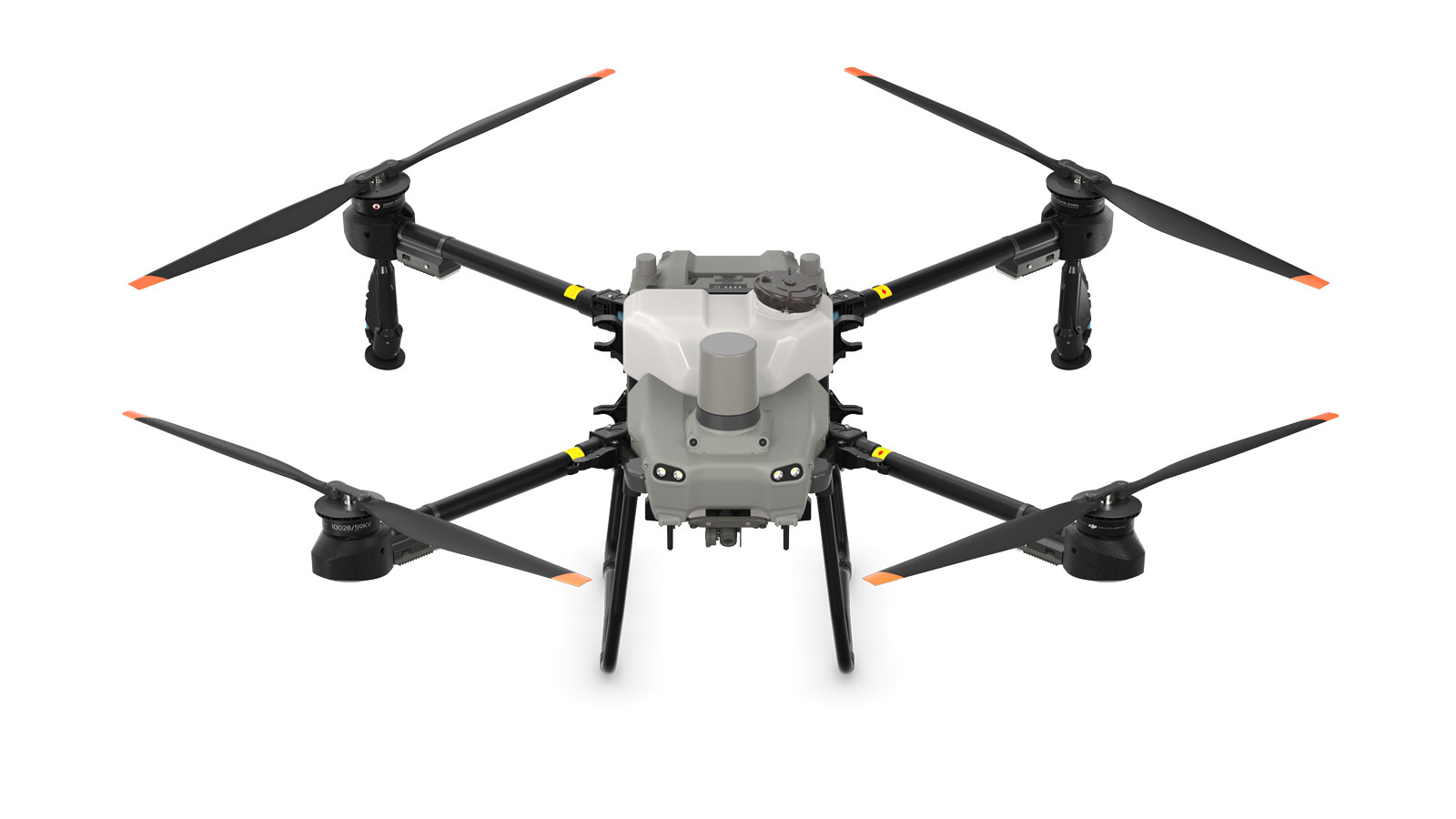

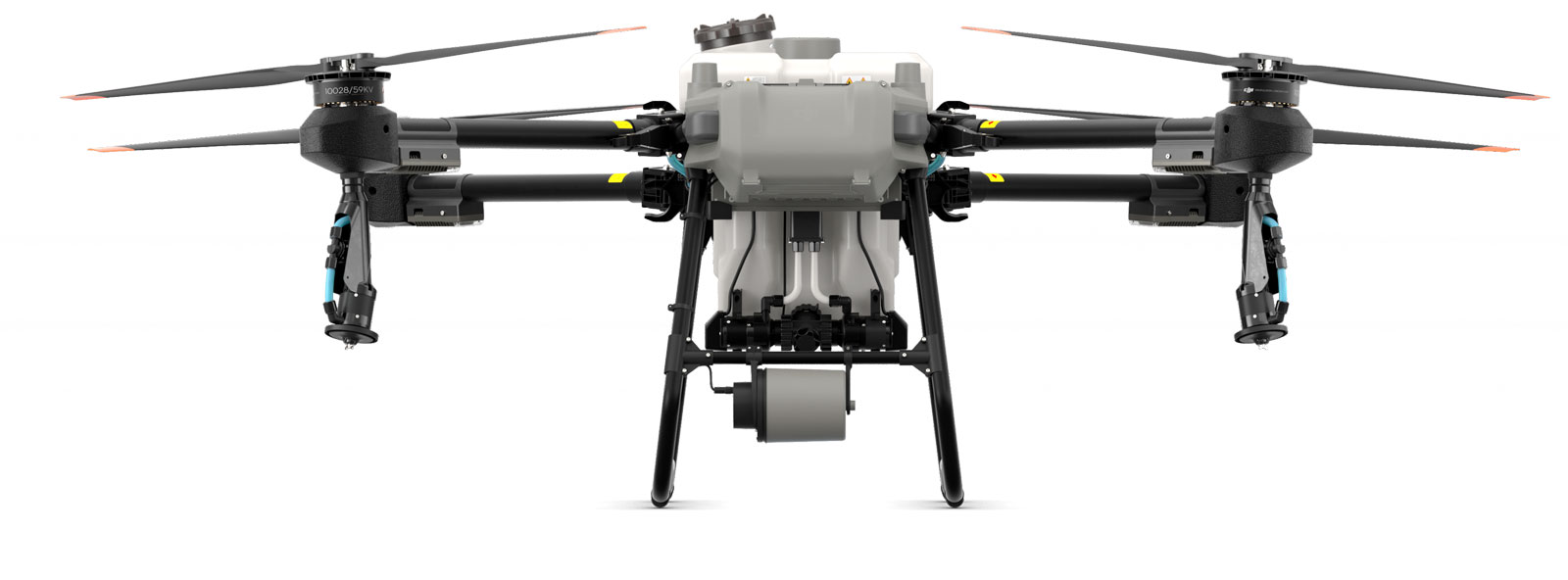

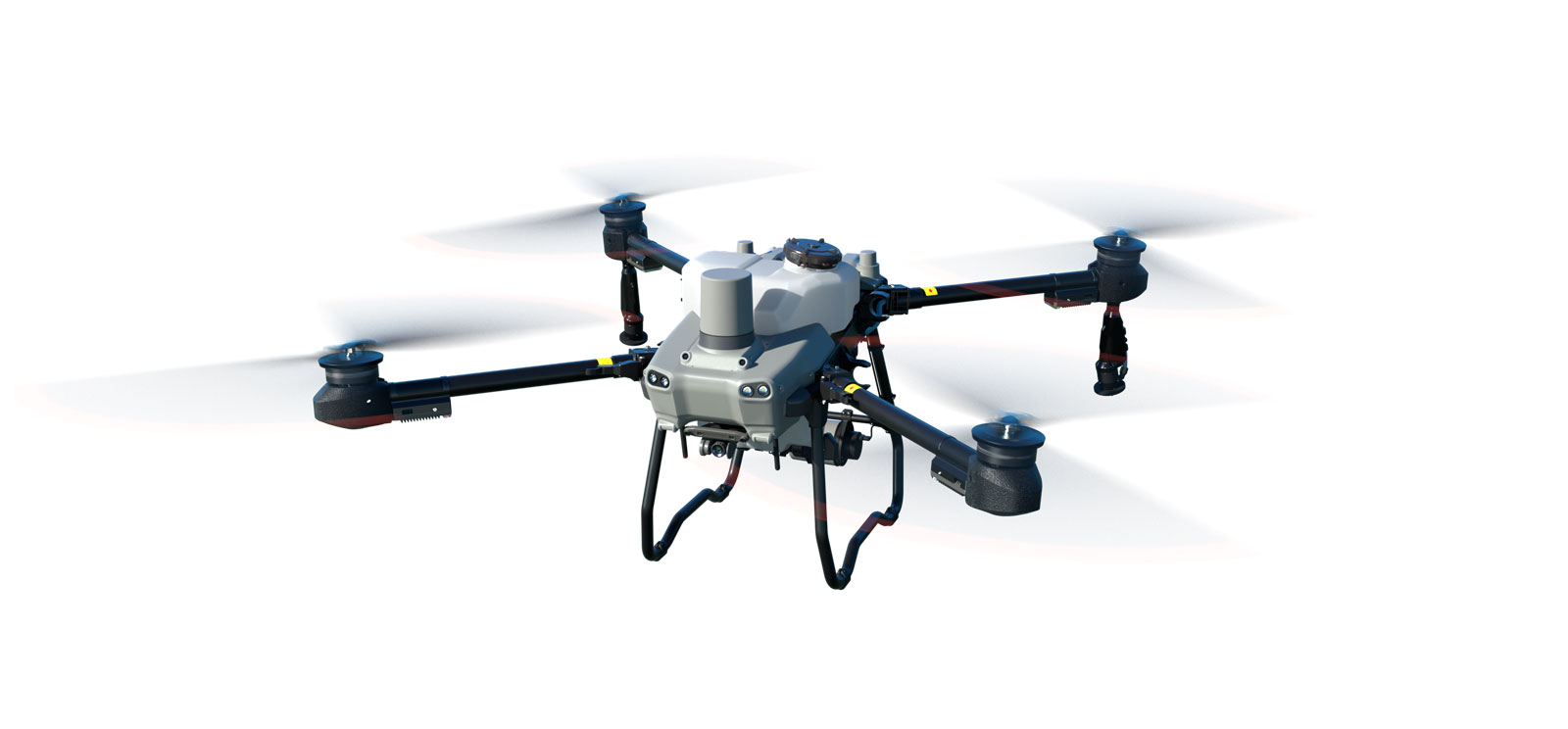

DJI Agras T25 — Overview
The DJI Agras T25 is a compact, foldable agricultural drone built for UK farms with fragmented fields, orchards, and vineyards.
It combines a 20Â L spraying tank and 35Â L spreading hopper with RTK precision and advanced sensing for accurate, repeatable application.
Drone Sales UK supplies full setup, training, and UK-focused support so you can deploy safely and efficiently.
- Precision & safety: Front/rear phased-array radar + binocular vision for terrain-following and obstacle detection.
- Accurate application: Dual-atomising sprinklers with adjustable droplet size and high flow rates.
- Flexible tasks: Spray liquids or spread seed/granules; plan routes in the DJI Agriculture app.
- Field-ready power: Fast charging with the C8000 charger and D6000i field generator keeps operations moving.
- UK support: Training, servicing, and compliance guidance from Drone Sales UK.
DJI Agras T25 — Product FAQ
What is the spraying capacity of the DJI Agras T25 (tank size & flow rate)?
The T25 has a 20Â L spray tank. Flow rate is up to ~16Â L/min with two atomising sprinklers and up to ~24Â L/min with the optional four-sprinkler kit (task and setup dependent).
How long does the DJI Agras T25 fly on one battery?
Flight time depends on payload, speed, and wind. Expect short, work-focused sorties. Using the DB800 battery with the C8000 charger (and a field generator) enables quick turnarounds for near-continuous operation.
What is the real spray width (swath) of the DJI Agras T25?
Typical effective spray width is ~4–7 m at around 3 m AGL with the standard two-sprinkler setup. Actual swath varies with nozzle settings, speed, height, and conditions.
Can the DJI Agras T25 spread seed or granular fertiliser?
Yes. The T25 supports a 35 L spreading hopper with up to 25 kg payload for seeds or granules (generally 0.5–5 mm). Adjust outlet gate, RPM, and height for the product used.
What battery does the DJI Agras T25 use and how do I charge it?
The T25 uses the DB800 intelligent battery (15,500Â mAh, 52.22Â V). Charge with the C8000 battery station; for field work pair with the D6000i inverter generator for fast cycling between flights.
Is the DJI Agras T25 easy to transport and set up?
Yes. The airframe folds for transport (fits in a van, pickup, or small trailer). On site, unfold, attach the tank/hopper, perform checks, and you’re ready to plan or run missions.
How accurate is RTK on the DJI Agras T25?
With RTK enabled, the T25 typically achieves ±10 cm hover/location accuracy, supporting precise and repeatable application lines and return-to-point refills.
What obstacle avoidance and terrain following does the DJI Agras T25 have?
The T25 uses front & rear phased-array radar plus a binocular vision system for close-range detection. It supports terrain following and obstacle sensing within specified speed/height limits.
How many people are needed to operate the DJI Agras T25 efficiently?
One qualified pilot can fly it. For larger jobs, a second person to handle refills and battery swaps keeps utilisation high.
What acreage per hour can the DJI Agras T25 cover?
Under favourable conditions and with efficient refills, the T25 can cover up to ~30 acres/hour. Throughput depends heavily on rate, swath, field layout, and wind.
Which app controls the DJI Agras T25 (planning & mapping)?
The T25 is controlled via the integrated DJI Agriculture app on the remote controller, with tools for field mapping, route planning, and mission execution. DJI SmartFarm can be used for job records and management.
Can the DJI Agras T25 work in windy or wet weather?
Operate within the wind limits stated in the manual and avoid heavy rain. For best coverage and drift control, plan missions around suitable weather windows.
What is included with the DJI Agras T25 out of the box?
The aircraft and remote controller are included. Batteries, charger, generator, and spraying/spreading kits are typically purchased as part of an operations bundle to match your workload.
What maintenance does the DJI Agras T25 require?
Routine post-flight rinsing (as per label guidelines), nozzle and filter checks, periodic inspection of pumps, lines, props, and radar/vision windows, plus battery care. We provide UK servicing, spares, and support.
What accessories are recommended for the DJI Agras T25?
At least 2–4 DB800 batteries, a C8000 charger, D6000i generator, spare nozzles/filters, and the spreading kit (if needed). A relay unit can help on large or obstructed sites.
How does the DJI Agras T25 compare to the DJI Agras T50?
The T25 is compact with a 20Â L spray tank (best for smaller fields/orchards). The T50 increases capacity to 40Â L liquid or 75Â L spreading for larger-scale work. Choose based on field size and throughput.
What droplet sizes can I achieve with the DJI Agras T25?
The dual atomising sprinklers support a wide range of droplet sizes (approx. ~50–500 µm) to match label guidance. Select the appropriate setup for the target crop and product.
Can I extend the control range of the DJI Agras T25 on big fields?
Yes. A DJI Relay can improve link reliability and effective working range on expansive or obstructed sites (subject to local regulations and site assessment).
As standard comes with the drone and remote controller.
Flight/RC batteries & tanks can be added above.
DJI Agras T25 — Specifications
Aircraft
- Weight: 25.4Â kg (without battery); 32Â kg (with battery)
- Max take-off weight (sea level): 52Â kg (spraying); 58Â kg (spreading)
- Diagonal wheelbase: 1,925Â mm
- Dimensions:
- Arms & props unfolded: 2,585 × 2,675 × 780 mm
- Arms unfolded, props folded: 1,475 × 1,540 × 780 mm
- Arms & props folded: 1,050 × 690 × 820 mm
- Hover accuracy (strong GNSS):
- RTK enabled: ±10 cm (H) / ±10 cm (V)
- RTK disabled: ±60 cm (H) / ±30 cm (V) — with radar: ±10 cm
- Max configurable flight radius: 2,000Â m
- Max wind resistance: 6Â m/s
Navigation & Positioning
- GNSS: GPS L1, BeiDou B1I, GLONASS F1, Galileo E1, QZSS L1
- RTK frequencies: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
Propulsion
- Motors: 100 × 28 mm stator, 59 rpm/V (KV), ~4,600 W per rotor
- Propellers: 50Â in nylon carbon-fibre; rotation diameter 1,270Â mm; quantity: 4
Dual Atomising Spraying System
- Spray tank: 20Â L HDPE (operating payload up to 20Â kg)

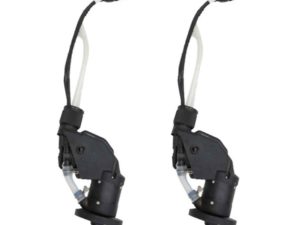

- Sprinklers: 2 × LX8060SZ (optional 4-sprinkler kit)
- Nozzle distance (rear): 1,368Â mm
- Droplet size: 50–500 µm (setup-dependent)
- Effective spray width: ~4–7 m at ~3 m AGL (scenario-dependent)
- Pumps: dual impeller (magnetic drive); single pump 0–12 L/min
- Max flow: 16Â L/min (2 sprinklers); 24Â L/min (4 sprinklers)

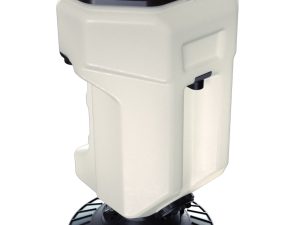

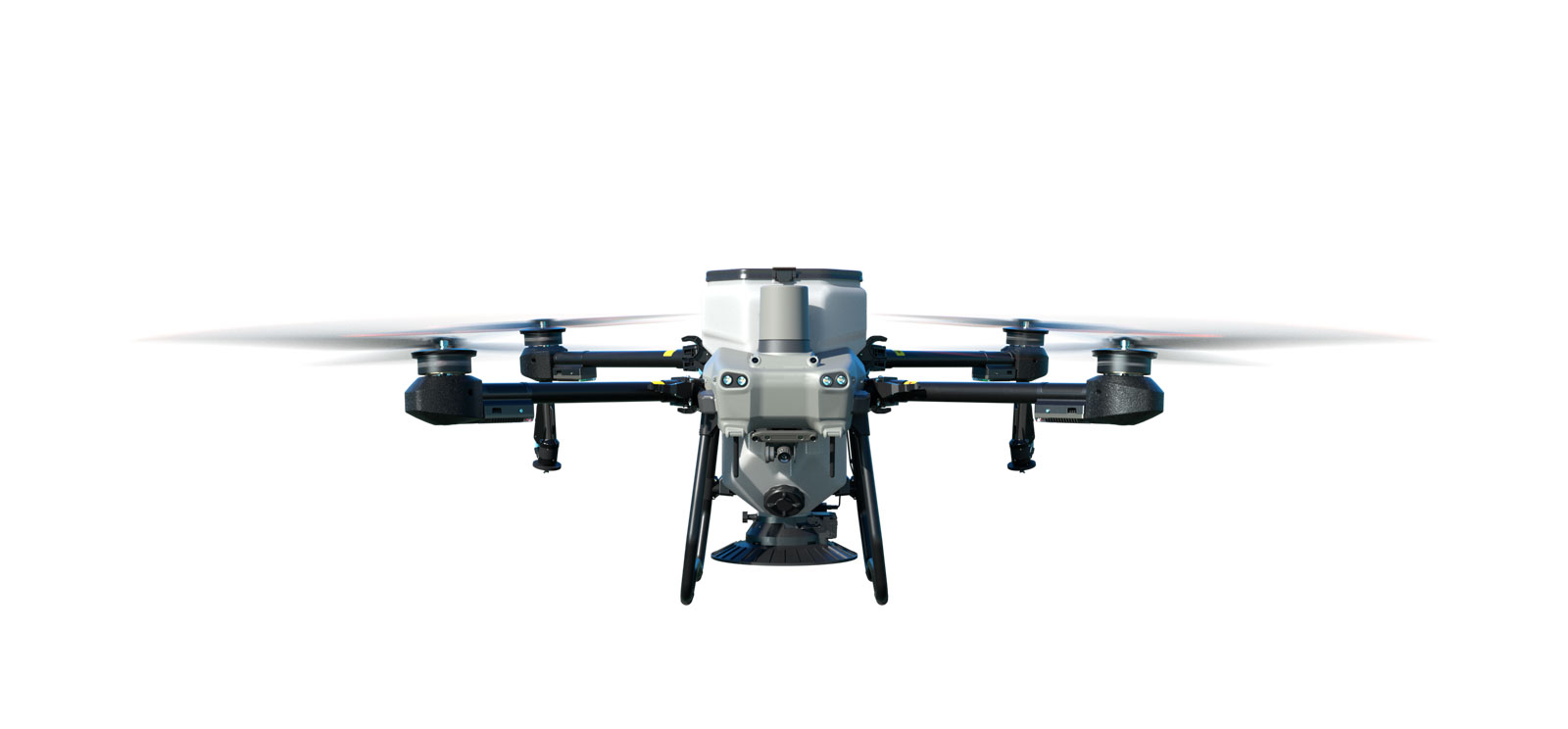

Spreading System
- Hopper volume / internal load: 35Â L / 25Â kg
- Compatible granule diameter: 0.5–5 mm
- Typical spread width: tune via outlet, RPM, altitude; ~5–8 m recommended
Sensing & Avoidance
- Phased array radar (front/rear): models RD241608RF / RD241608RB
- Terrain follow: max slope 50°; altitude detection 1–50 m; stabilisation 1.5–30 m
- Obstacle avoidance: range 1–50 m; safety limit distance 2.5 m
- FOV — forward radar: 360° (H), ±45° (V), ±45° upward cone
- FOV — rear radar: 360° (V), ±45° (H)
- Working conditions: ≥1.5 m AGL, ≤10 m/s horizontal, ≤3 m/s vertical
- Binocular vision: 0.5–29 m; effective ≤10 m/s; FOV 90°(H)/106°(V); needs adequate light
Remote Controller (RM700B)
- Max transmission (unobstructed): 7Â km (FCC) / 5Â km (SRRC) / 4Â km (MIC/CE)
- Operating frequencies: 2.4000–2.4835 GHz; 5.725–5.850 GHz
- Wi-Fi: Wi-Fi 6; 2.4 / 5.15–5.25 / 5.725–5.85 GHz
- Bluetooth: 5.1
- GNSS: GPS + Galileo + BeiDou
- Screen: 7.02-inch LCD, 1920×1200, 1200 nits
- Operating temp: −20 °C to 50 °C
- Battery runtime: internal 3h18m; external 2h42m
- Charging: USB-C (recommend 65Â W max); ~2Â h with standard DJI charger (powered off)
Power & Charging

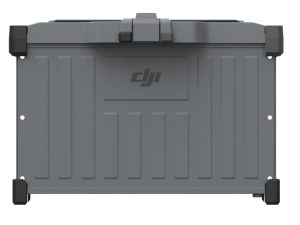

- Flight battery: DB800 (BAX702-15500mAh-52.22V); 15,500Â mAh; 52.22Â V; ~6.6Â kg

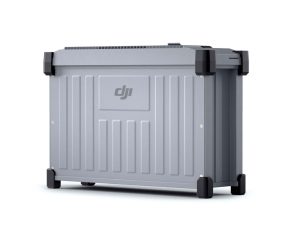

- C8000 charger (CHX101-7000): 300×280×230 mm; ~11.5 kg; input 100–240 VAC; output 59.92 V / 100 A (max); full charge in ~9–12 min (DB800)
- D6000i inverter generator: DC 42–59.92 V/4,500 W; AC 230 V/1,500 W (or 120 V/750 W); 20 L tank; max engine power 6,000 W; one-button start; typical DB800 full-charge ~9–12 min
DJI Relay (RL01-65)
- Dimensions / weight: 120×110×100 mm; ≤575 g
- Operating frequency: 2.4000–2.4835 GHz; 5.725–5.850 GHz
- Max transmission distance: 5Â km (SRRC) / 4Â km (MIC/KCC/CE) / 7Â km (FCC)
- Battery: 6,500Â mAh; ~4Â h runtime; ~2h20m charge time
- IP rating: IP55 (device)
Notes: Spray/Spread widths and flow rates vary with altitude, speed, wind, and material characteristics.
Payload recommendations reduce with altitude (typically −5 kg per 1,000 m). Always follow the DJI manual and product labels.
Downloads
- DJI Agras T25 Spreading System — User Guide
- DJI Agras T25 Atomised Sprinkler Package — Product Info
- DB800 Intelligent Flight Battery — User Guide
- C8000 Intelligent Battery Station — User Guide
- D6000i Multifunctional Inverter Generator — User Guide
- DJI Relay — User Guide
