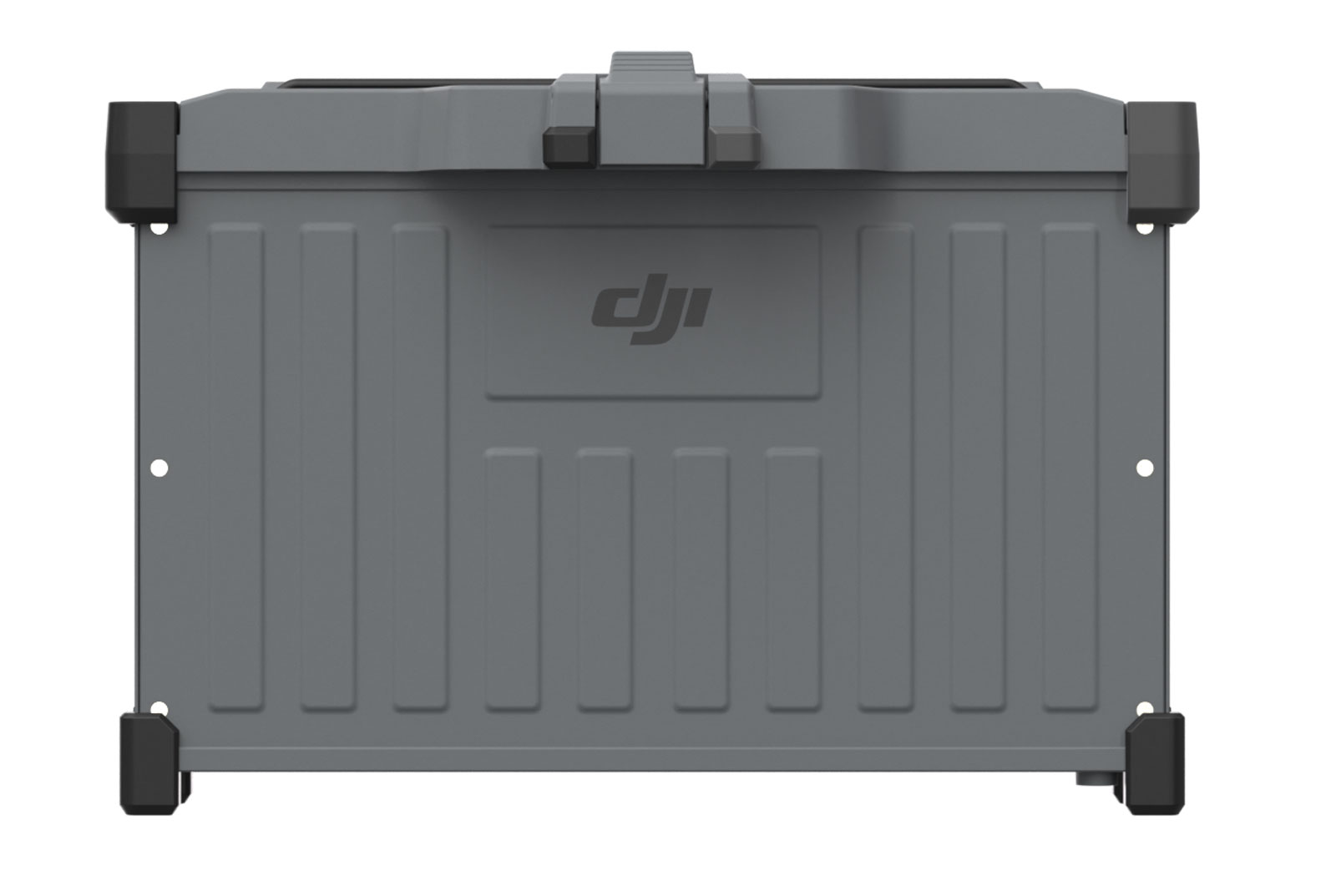

DB800 Intelligent Flight Battery

DB800 Intelligent Flight Battery

£1,773.00

Category:

DB800 Intelligent Flight Battery for DJI Agras T25 (UK)

Power your DJI Agras T25 with the DB800 Intelligent Flight Battery — a high-capacity pack
(15,500 mAh, 52.22 V, 809 Wh) engineered for fast turnarounds and safe, reliable field operations.
Available from Drone Sales UK with setup and support.

Key Benefits

  • Quick battery check: Status LEDs show remaining power at a glance — press the power button to view.
  • Smart communication: Sends live battery data (voltage, remaining power, temperature) to the aircraft for
    smarter power management and return-to-home behaviour.
  • Built-in diagnostics: Self-tests detect abnormal voltage, current or temperature, trigger alerts, and log
    events for easier troubleshooting.
  • Protection you can trust: Short-circuit detection cuts power instantly to reduce fire risk; charging error
    detection flags issues via LEDs and attempts safe auto-recovery.
  • Cell balancing: Automatically balances cells to maintain performance and extend service life.
  • Auto storage mode: Helps look after your investment by discharging to ~97% after 1 day at full charge, and to
    ~60% after 7 days, ideal for longer storage.
  • Adaptive charging: Adjusts charge current based on pack temperature and conditions for safer, more efficient charging.
  • Thermal management: Controls cell temperatures to keep the pack within its optimal working range.
  • Fast field turnaround: Compatible with C8000 battery station and D6000i/D9000i generators for rapid cycling
    (typical full charge ~9–12 minutes with a suitable high-output setup).

Tip: Pair multiple DB800 batteries with a C8000 charger and field generator to maximise uptime during spraying and spreading operations.

DB800 Intelligent Flight Battery — Key Specifications

  • Weight: approx. 6.6 kg
  • Nominal voltage: 52.22 V
  • Capacity: 15,500 mAh
  • Energy: 809 Wh
  • Battery chemistry: Lithium-ion NMC (LiNiMnCoO2)
  • Max discharge rate: up to 11.5 C
  • Operating temperature: −5 °C to 45 °C (23 °F to 113 °F)
  • Charging temperature: 0 °C to 60 °C (32 °F to 140 °F)
  • Ingress protection: IP54 with board-level potting/conformal protection
  • Warranty: up to 1,500 charge cycles or 12 months (whichever occurs first)
  • Compatible aircraft: DJI Agras T25P, T25, T20P, T30
  • Maximum charging power: 5,400 W
  • Compatible charging solutions:
    • D6000i Multifunctional Inverter Generator
    • C8000 Intelligent Battery Station
    • D9000i Multifunctional Inverter Generator
    • T30 Intelligent Battery Station
  • Typical charge time (per battery): approx. 9–12 minutes when paired with a high-output inverter generator (e.g., D12000iEP), subject to conditions.

Notes: Actual charging/operation performance varies with ambient temperature, state of charge, and station/generator configuration. Always follow DJI safety guidance.
