Atomised Sprinkler System
£542.00
- Dual atomised nozzles for fine spray
- Consistent droplet size & coverage
- Adjustable flow for varied applications
- Corrosion-resistant, low-maintenance design
- Compatible with DJI Agras drones
DJI Agras T25 Atomised Sprinkler Upgrade (UK) — Wider Swath, Faster Jobs
Boost the productivity of your DJI Agras T25 with the Atomised Sprinkler System.
This upgrade expands the standard two-sprinkler setup to four atomising sprinklers for broader coverage,
higher throughput and more efficient field operations. Available from Drone Sales UK with UK setup and support.
Key Benefits
- More coverage per pass: Upgrade from 2 to 4 sprinklers for a wider working swath and fewer track lines.
- Higher flow rates: Achieve up to 24 L/min (setup- and task-dependent) for rapid, uniform application.
- Reverse directional spray: Spray while reversing at row ends to reduce tight turns, save time and minimise crop disturbance.
- Precision droplet control: Supports a wide droplet spectrum of approx. 50–500 µm to match product labels and target coverage.
- Quick install & maintenance: Designed for fast fitment, easy cleaning and reliable day-to-day use on UK farms.
- Works with your workflow: Seamless planning and execution through the DJI Agriculture app and RTK-accurate flight paths.
Note: Actual swath width and flow depend on height, speed, nozzle settings, and product formulation. Follow DJI guidance and product label recommendations.
DJI Agras T50 Atomized Sprinkler System — Frequently Asked Questions
What is the Atomized Sprinkler System for the Agras T50?›
The Atomized Sprinkler System is a dedicated spraying attachment for the Agras T50 drone, enabling efficient application of liquid agricultural products with fine droplets and adjustable flow for wide‑area coverage.
What are the tank size and flow rate specifications?›
The system supports a 40 L spray tank raised to 40 kg payload. With the standard two‑sprinkler configuration it achieves up to ~16 L/min; when upgraded to a four‑sprinkler setup the flow rate can be increased up to ~24 L/min.
What droplet size and effective spray width can I expect?›
Droplet size range is approximately 50–500 µm and the typical effective swath width is ~4‑11 metres at around 3 m above the crop canopy.
Which nozzles and pump model are used with this system?›
The sprinkler model used is LX8060SZ and the delivery pump is a magnetic drive impeller‑type.
Can this system be retrofitted to existing Agras T50 drones?›
Yes — it is designed for compatibility with the Agras T50 platform. Ensure correct firmware/hardware configuration and installation of the kit before field deployment.
How should I optimise the system for orchard, vineyard or terrain‑follow spraying?›
Maintain a consistent height, set appropriate flight speed, use overlap, select droplet size as per label, and for orchards or uneven terrain consider slower speed and narrower swath to maximise coverage and reduce drift.
How do I clean and maintain the sprinkler system after use?›
Flush the system with clean water after each job, inspect nozzles and hoses for wear, check the pump and lines, store the unit drained and capped in a dry environment. Regular servicing maintains accuracy and reliability.
Can this system support variable‑rate application workflows?›
Yes — when integrated with the Agras system and relevant software, you can set L/ha targets, adjust flow, droplet size, speed and height to adapt to variable‑rate prescriptions.
What support and bundling options are available from a reseller?›
As a reseller we offer UK‑ready bundles, installation support, calibration advice and accessories tailored to the Atomized Sprinkler System. Contact us for quotes and demo options.
How can I order this system in the UK and what is the lead time?›</span
Pricing depends on configuration and stock. Please contact us for current UK pricing, availability and lead times.
Atomised Sprinkler Package — Box Contents
- Atomised Sprinkler & Spray Lance Module × 2
- Front Sprinkler Composite Cable × 2
- U-Shaped Elbow × 2
- T-Shaped Connector & One-Way Valve Module × 1
- Frame Arm Bellows Hose × 2
- Spray Lance Adaptor × 1
- Motor Base Stopper × 1
- Hose Clamp × 1
- Screw Nut × 4
- Thumb Nut × 2
- Screw Package × 1

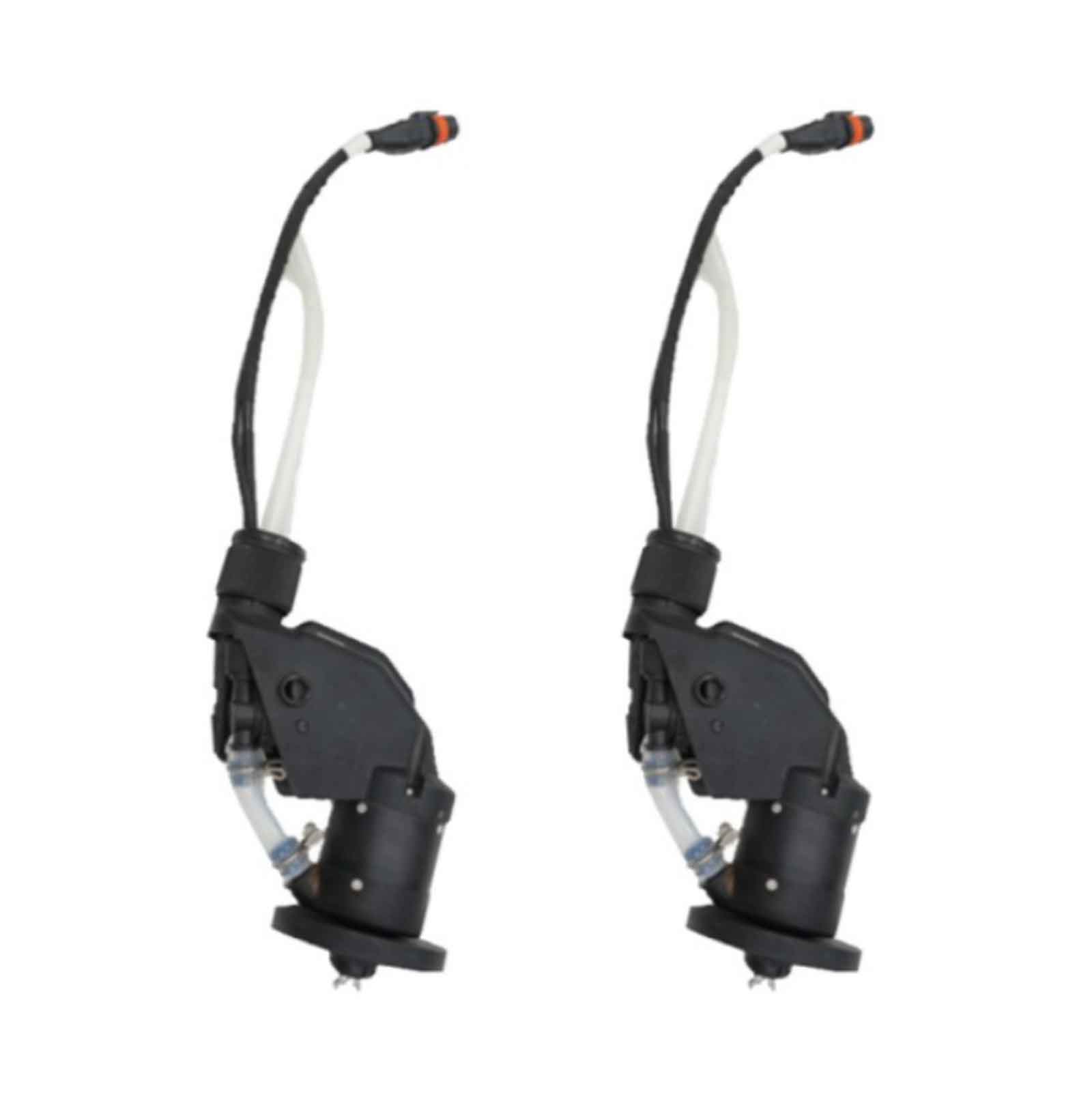

Atomised Sprinkler Package (LX8060SZ)
Precision atomised nozzle set designed for DJI Agras T50, supporting fine droplet spraying across wide coverage zones with consistent distribution and efficient performance.
Includes 2 atomised sprinklers
Droplet size: 50–500 µm
Spray width: ~4–11 m
Key Specifications
- Sprinkler Model: LX8060SZ
- Compatible Aircraft: DJI Agras T50
- Quantity in Kit: 2 sprinklers
- Droplet Size: Approx. 50–500 µm (product and setup dependent)
- Effective Spray Width: ~4–11 m at ~3 m AGL (variable by speed, altitude, and conditions)
* Spray width and droplet spectrum depend on pump flow rate, altitude, drone speed and liquid formulation. Always follow DJI setup recommendations and product labels.
